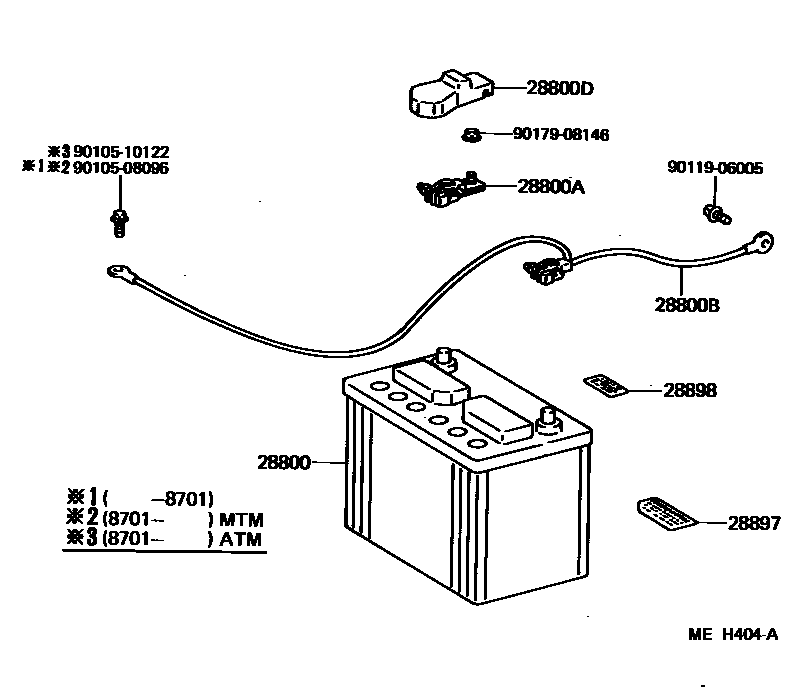

Toyota CAMRY — BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i3SFE..SV21..STD..CND;3SFE,2VZFE..SV2#,VZV21..DX,LE198710-198808

55D23L

sub28800-42030¥0

main28800-15050i3SFE..SV21198608-198710

55D23L,55D23L-MF

sub28800-42030¥0

main28800-31200i3SFE..SV21..STD..USA198710-198808

50D20L

main28800-31200i3SFE..SV21..USA198608-198710

50D20L,50D20L-MF

28800ATERMINAL, BATTERY POSITIVE

main90982-05029i3SFE..SV21¥1,380198608-198610

sub90982-05030¥1,390

main90982-05030i3SFE..SV21¥1,390198610-198710

main90982-05030i3SFE,2VZFE..SV2#,VZV21¥1,390198710-198808

28800BCABLE, BATTERY TO GROUND

main82123-32050i3SFE..SV21¥3,210198608-198701

sub82123-32051¥3,240

main82123-32051i3SFE..SV21¥3,240198701-198710

main82123-32051i3SFE..SV2#¥3,240198710-198808

main82123-32100i2VZFE..VZV21¥4,180198802-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-32030i3SFE..SV21¥610198608-198710

main82821-32030i3SFE,2VZFE..SV2#,VZV21¥610198710-198808

28897PLATE, BATTERY CAUTION

main28897-38010i3SFE..SV21..CND¥210198608-198710

main28897-38010i3SFE,2VZFE..SV2#,VZV21..CND¥210198710-198808

28898PLATE, BATTERY

main28898-26010i3SFE..SV21..USA¥150198608-198710

main28898-26010i3SFE,2VZFE..SV2#,VZV21..USA¥150198710-198808

9010508096

main90105-08096¥160

9010510122

main90105-10122¥160

9011906005

main90119-06005¥80

9017908146

main90179-08146¥180

10 parts on this diagram · 1 diagram in section
