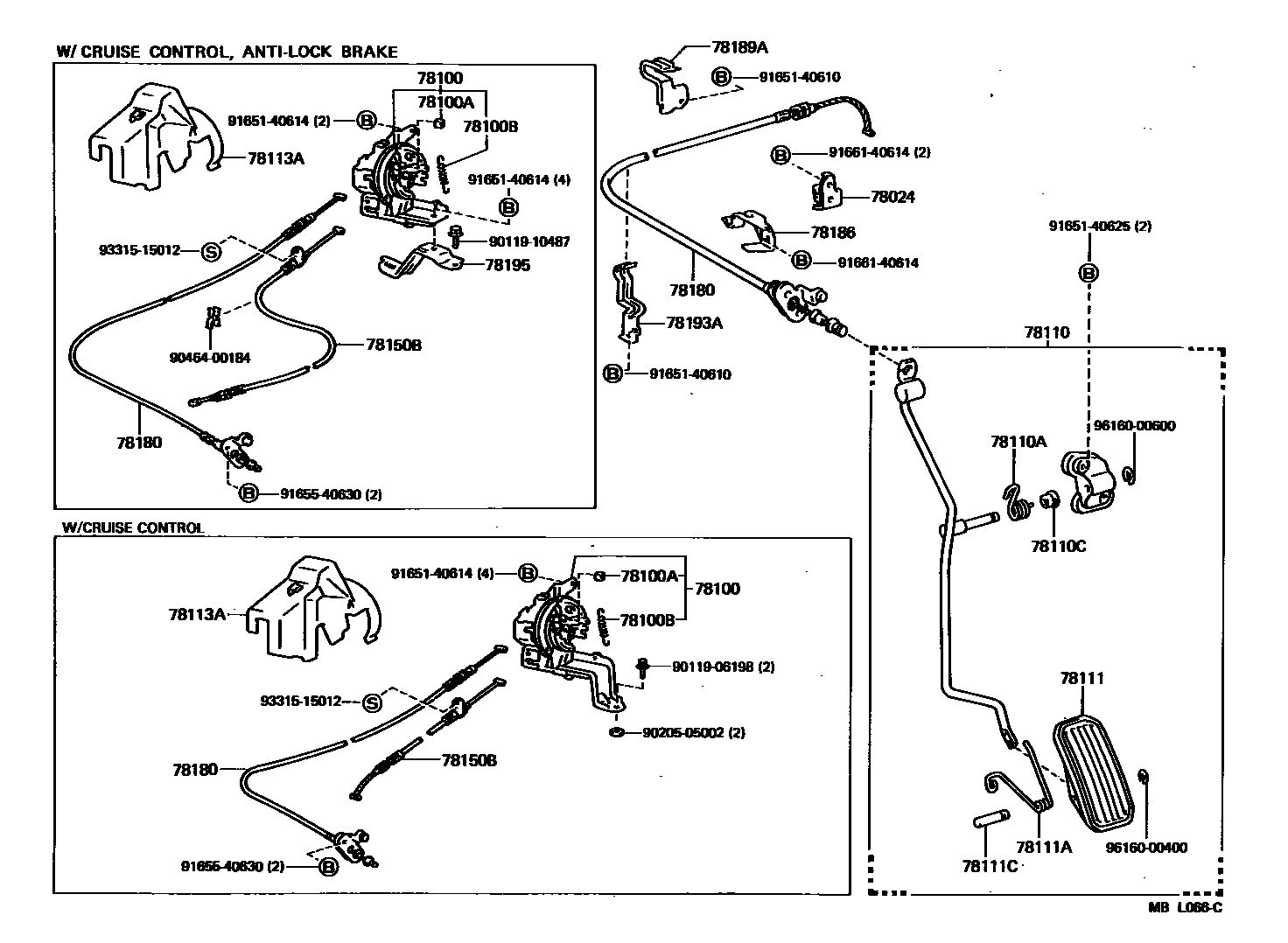

Toyota CAMRY — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-32070iSV21¥3,010198608-198710

main78024-32070iSV2#¥3,010198710-198808

main78024-32110iVZV21¥3,010198802-198808

78100LINK ASSY, ACCELERATOR

main78100-32050iSV25,VZV21..LE¥14,700198710-198808

W(UNTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

main78100-32060iSV21¥14,400198608-198710

main78100-32060iSV2#,VZV21¥14,400198710-198808

W(CRUISE CONTROL)

78100ASTOPPER, ACCELERATOR LINK

main78118-12010iSV2#,VZV21¥240198608-198808

78100BSPRING (FOR ACCELERATOR LINK)

main90507-08007iSV2#,VZV21¥170198608-198808

78110ROD ASSY, ACCELERATOR PEDAL

main78120-32090iSV21..4FC¥4,220198608-198710

main78120-32090iSV21,VZV21..4FC¥4,220198710-198808

main78120-32100iSV2#,VZV21..5F¥4,220198710-198808

main78120-32100iSV21..5F¥4,220198608-198710

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iSV21..4FC¥550198608-198710

main90508-18025iSV21,VZV21..4FC¥550198710-198808

main90508-23069iSV2#,VZV21..5F¥550198710-198808

main90508-23069iSV21..5F¥550198608-198710

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-12023iSV21¥180198608-198710

main90386-12023iSV2#,VZV21¥180198710-198808

78111PEDAL, ACCELERATOR

main78111-32010iSV21¥650198608-198710

main78111-32010iSV2#,VZV21¥650198710-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iSV21¥540198608-198710

main90508-18046iSV2#,VZV21¥540198710-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iSV21¥230198608-198710

main90249-05001iSV2#,VZV21¥230198710-198808

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-20130iSV2#,VZV21¥3,030198608-198808

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-32070iSV21¥4,210198608-198710

main78150-32070iSV2#¥4,210198710-198808

W(CRUISE CONTROL)

main78150-32090iVZV21..LE¥3,270198802-198808

main78150-32150iSV25..LE¥3,940198710-198808

W(UNTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

78180WIRE ASSY, ACCELERATOR

main78180-32170iSV21¥4,120198608-198710

W/CRUISE CONTROL

sub78180-32171¥3,830

main78180-32170iSV2#¥4,120198710-198802

W(CRUISE CONTROL)

sub78180-32171¥3,830

main78180-32171iSV25..LE¥3,830198802-198808

W(CRUISE CONTROL)

main78180-32230iSV2#¥4,640198710-198808

main78180-32230iSV21¥4,640198608-198710

main78180-32240iVZV21¥4,190198802-198805

sub78180-32241¥5,500

main78180-32241iVZV21¥5,500198805-198808

main78180-32250iSV25..LE¥3,810198710-198802

W(UNTI-LOCK BRAKE SYSTEM & CRUISE CONTROL)

sub78180-32171¥3,830

main78180-32330iVZV21..DX¥4,800198802-198808

W(CRUISE CONTROL)

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-32040iSV21¥640198608-198710

main78186-32040iSV2#¥640198710-198808

main78186-32050iVZV21¥640198802-198808

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-32040iSV21¥500198608-198710

sub78189-32041¥470

main78189-32040iSV2#¥500198710-198808

sub78189-32041¥470

main78189-32050iVZV21¥590198802-198808

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-32050iSV21¥640198608-198710

main78193-32050iSV2#¥640198710-198808

78195BRACKET, ACCELERATOR LINK

main78195-32050iSV25..LE¥2,170198710-198802

sub78195-32051¥2,170

main78195-32051iSV25,VZV21..LE¥2,170198802-198808

9011906198

main90119-06198¥90

9011910487

main90119-10487¥190

9020505002

main90205-05002¥110

9046400184

main90464-00184¥350

9165140610

main91651-40610¥160

9165140614

main91651-40614¥160

9165140625

main91651-40625¥70

9165540630

main91655-40630¥140

9166140614

main91661-40614¥120

9331515012

main93315-15012¥80

9616000400

main96160-00400¥120

9616000600

main96160-00600¥80

29 parts on this diagram · 2 diagrams in section
