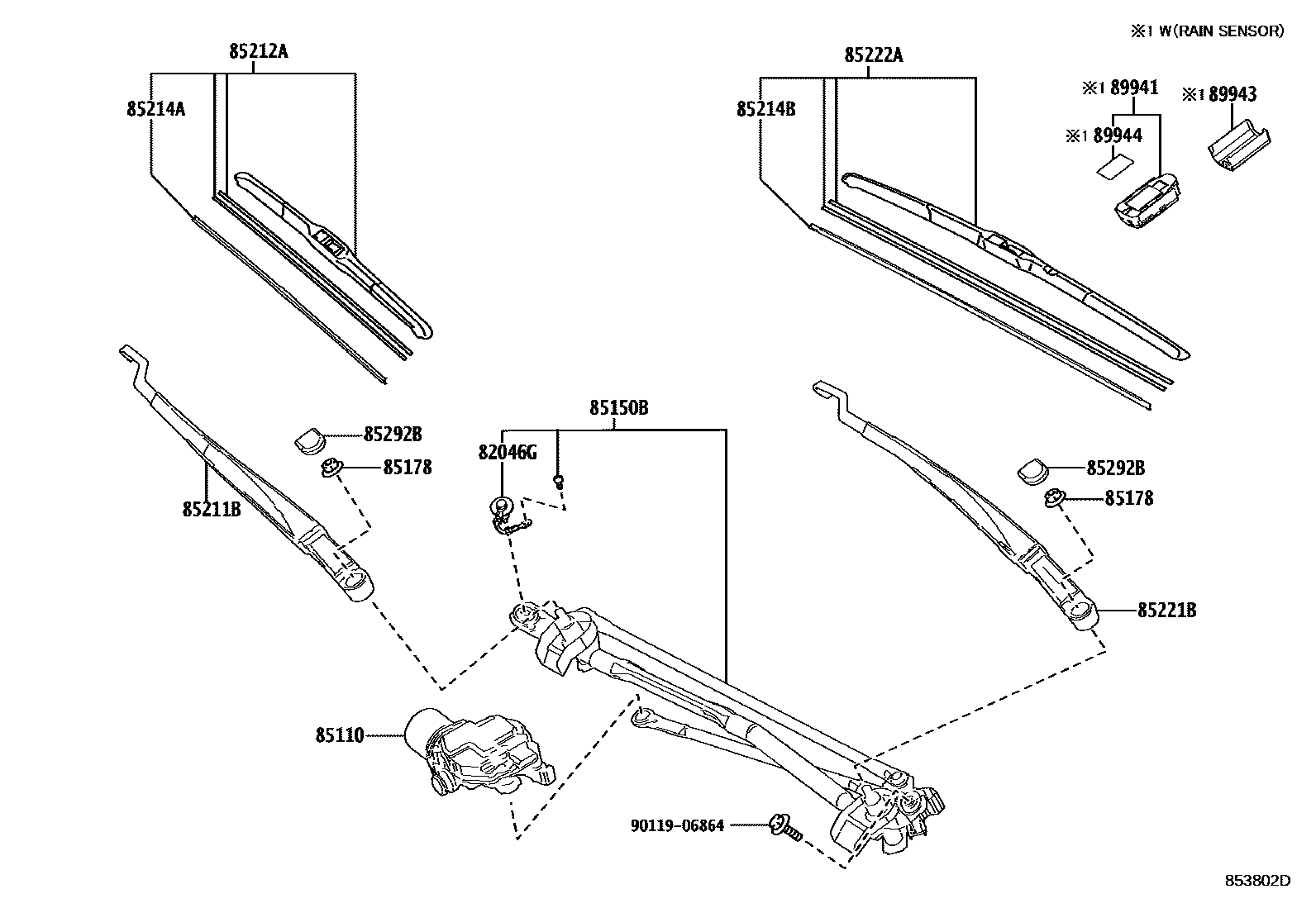

Toyota CAMRY/HYBRID — WINDSHIELD WIPER

0001 1 0002 1 0003 1

82046GWIRE SUB-ASSY, BODY GROUND

main82046-33060iASV70,AXVH7#,GSV70..ARL,TAIW,TAKR¥0201709-202101

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33430iASV70,AXVA70,AXVH71,GSV70..LHD201712-202010

sub85110-33432

main85110-33432iAXVA70,AXVH71,GSV70,MXVA71..LHD202011-202101

main85110-33440iASV70,AXVH7#,GSV70..ARL¥22,600201709-202010

sub85110-33441¥18,900

main85110-33441iAXVA70,AXVH70..ARL¥18,900202011-202101

85150BLINK ASSY, WIPER

main85150-33290iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

main85150-33291iAXVA70,AXVH71,GSV70..GCC202102

main85150-33320iASV70,AXVH7#,GSV70..ARL¥7,500201709-202101

main85150-33330iASV70,AXVH71..TAIW,TAKR201808-202101

main85150-33331iAXVH71,MXVA71..TAIW,TAKR202102

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iASV70,AXVA70,AXVH7#,GSV70¥80201709-202101

85211BARM, FRONT WIPER, RH

main85211-33440iASV70,AXVH71..TAIW,TAKR201808-202101

main85211-33450iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

main85211-33460iASV70,AXVH7#,GSV70..ARL¥3,500201709-202101

85212ABLADE, FR WIPER, RH

main85212-33340iASV70,AXVA70,AXVH71,GSV70..LHD¥2,640201712-202101

main85212-33350iASV70,AXVH71,GSV70..ARL¥4,290201709-201805

sub85212-52210¥4,290

main85212-52210iASV70,AXVH7#,GSV70..ARL¥4,290201806-202101

85214ARUBBER, WIPER, RH

main85214-52110iASV70,AXVH7#,GSV70..ARL¥900201709-202101

main85214-60120iASV70,AXVA70,AXVH71,GSV70..LHD¥800201712-202101

85214BRUBBER, WIPER, LH

main85214-52110iASV70,AXVA70,AXVH71,GSV70..LHD¥900201712-202101

main85214-60120iAXVA70,AXVH70..ARL¥800201709-202101

85221BARM, FRONT WIPER, LH

main85221-33390iASV70,AXVH71..TAIW,TAKR201808-202101

main85221-33440iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

main85221-33450iAXVA70,AXVH70..ARL¥3,810201709-202101

85222ABLADE, FR WIPER, LH

main85222-33340iAXVA70,AXVH71,GSV70,MXVA71..LHD¥4,290201712-202101

main85222-33350iASV70,AXVH7#,GSV70..ARL¥2,640201709-202101

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iASV70,AXVA70,AXVH7#,GSV70¥250201709-202101

89941SENSOR, RAIN

main89941-33060iGSV70..N;ASV70,AXVH71..TAIW,TAKR¥12,500201712-202101

main89941-33060iAXVH71,MXVA71..TAIW,TAKR¥12,500202102

ATARA SL

89943COVER, RAIN SENSOR

main89943-33060iGSV70..N;ASV70,AXVH71..TAIW,TAKR¥290201712-202101

main89943-33060iAXVH71,MXVA71..TAIW,TAKR¥290202102

ATARA SL

89944TAPE, RAIN SENSOR

main89944-42020iGSV70..N;ASV70,AXVH71..TAIW,TAKR¥170201712-202101

main89944-42020iAXVH71,MXVA71..TAIW,TAKR¥170202102

ATARA SL

9011906864

main90119-06864¥80

15 parts on this diagram · 3 diagrams in section
