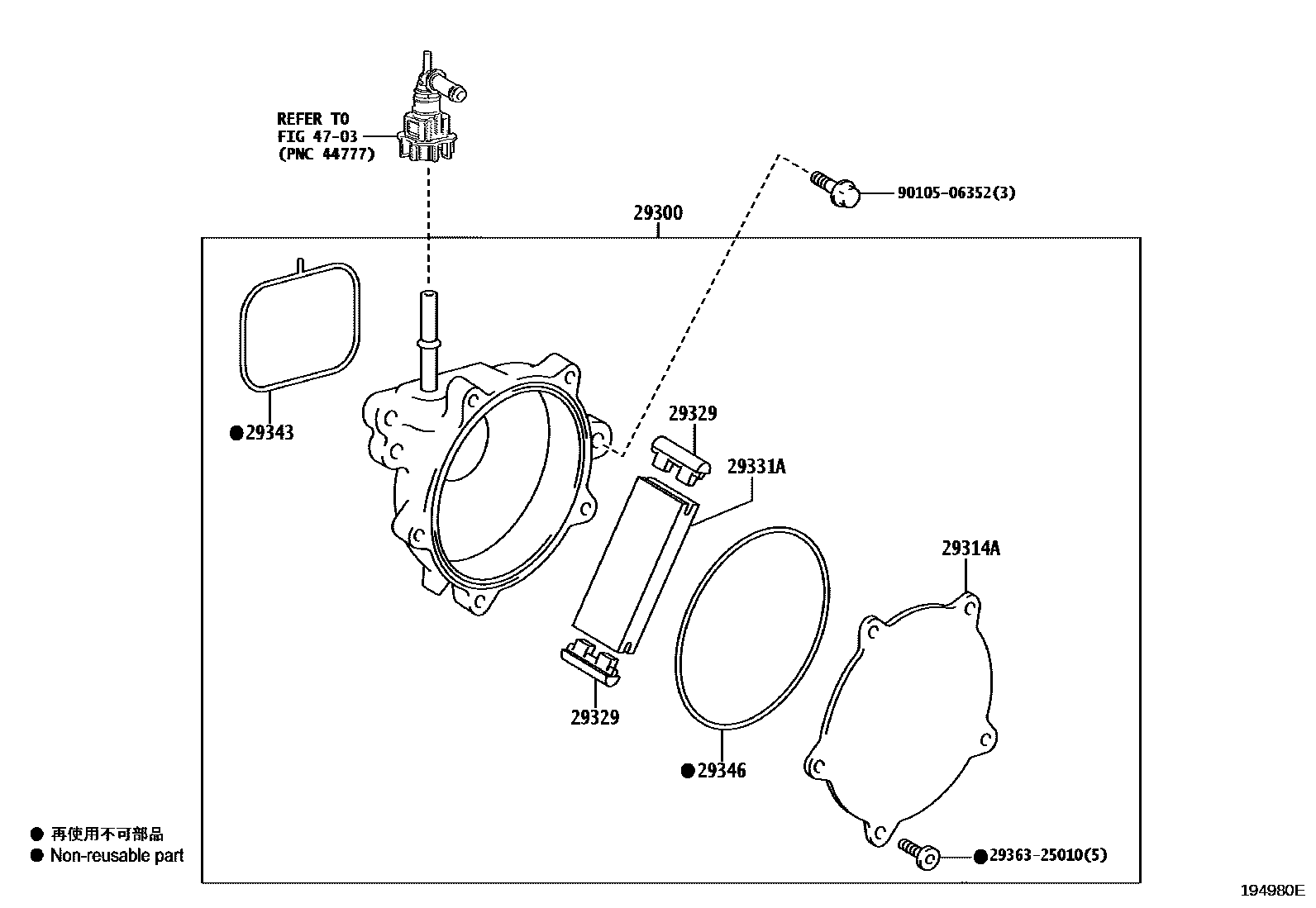

Toyota CAMRY/HYBRID — VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-25011iA25AFKS..AXVA70¥17,300201712-202110

sub29300-25012¥15,700

main29300-25012iA25AFKS,M20AFKS..AXVA70,MXVA71¥15,700202111

main29300-31011i2GRFKS..GSV70¥15,100201712-202101

29314ACOVER, END

main29314-25010iA25AFKS,M20AFKS..AXVA70,MXVA71¥900201712-202101

main29314-31010i2GRFKS..GSV70¥1,690201712-202101

29329CAP, VACUUM PUMP VANE

main29329-25011iA25AFKS,M20AFKS..AXVA70,MXVA71¥900201712-202101

main29329-37010i2GRFKS..GSV70¥200201712-202101

29331AVANE, VACUUM PUMP

main29331-25010iA25AFKS,M20AFKS..AXVA70,MXVA71¥650201712-202111

sub29331-37010¥590

main29331-36010i2GRFKS..GSV70¥980201712-202101

main29331-36011i2GRFKS..GSV70¥890202102

main29331-37010iA25AFKS,M20AFKS..AXVA70,MXVA71¥590202111

29343RING, O VACUUM PUMP, NO.1

main29343-25010iA25AFKS..AXVA70¥340201712-202101

main29343-36010i2GRFKS..GSV70¥160201712-202101

29346RING, O VACUUM PUMP COVER

main29346-25010iA25AFKS..AXVA70¥340201712-202101

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9010506352

main90105-06352¥60

9 parts on this diagram · 2 diagrams in section
