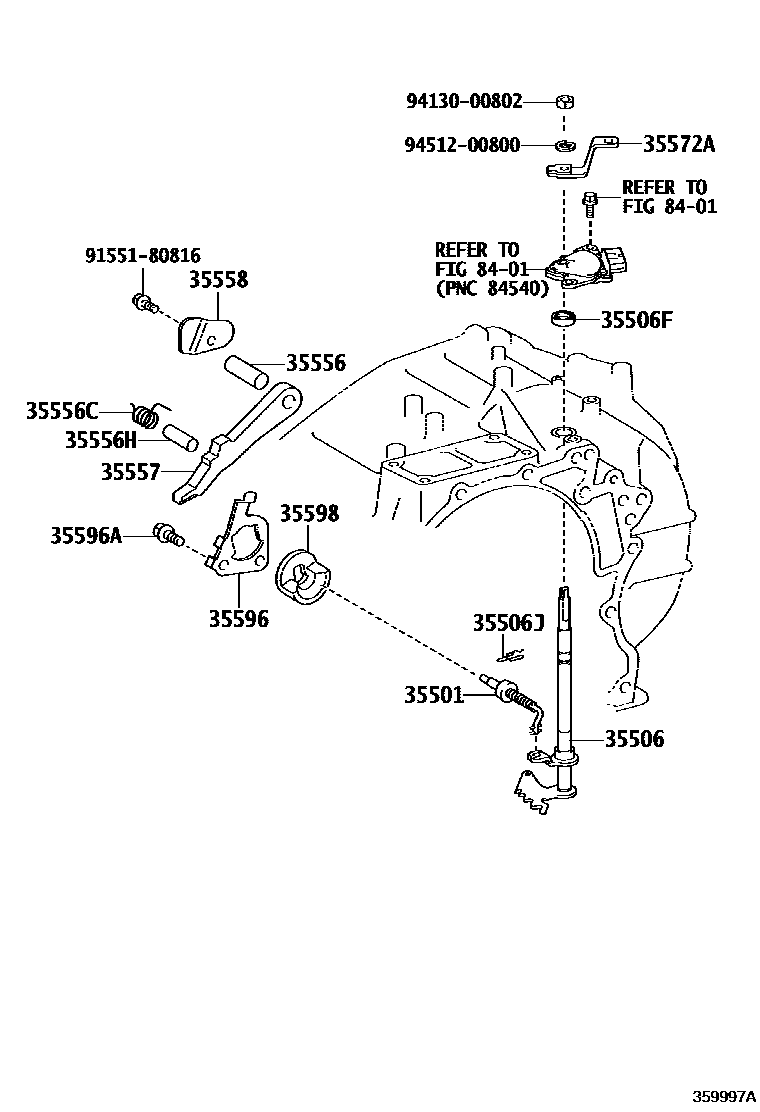

Toyota CAMRY/HYBRID — THROTTLE LINK & VALVE LEVER (ATM)
35501ROD SUB-ASSY, PARKING LOCK
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
NO.2
NO.2
NO.1,TMC:REFER 35-01
NO.1,TMC:REFER 35-01
NO.1,TMC:REFER 35-01
NO.1,TMC:REFER 35-01
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
NO.1,TMC:REFER 35-01
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
NO.1,AISIN:SEE 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
(J)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
(J)
35556SHAFT, PARKING LOCK PAWL
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
AISIN:REFER 35-01
AISIN:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
(J)
35556HSHAFT, PARKING LOCK PAWL
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
(J)
35572ALEVER, TRANSMISSION CONTROL SHAFT
(J)
AISIN AW
TOYOTA
35596PLATE, PAWL STOPPER
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5
35598SLEEVE, PARKING LOCK
(J)
8401
9155180816
9413000802
9451200800
17 parts on this diagram · 3 diagrams in section
