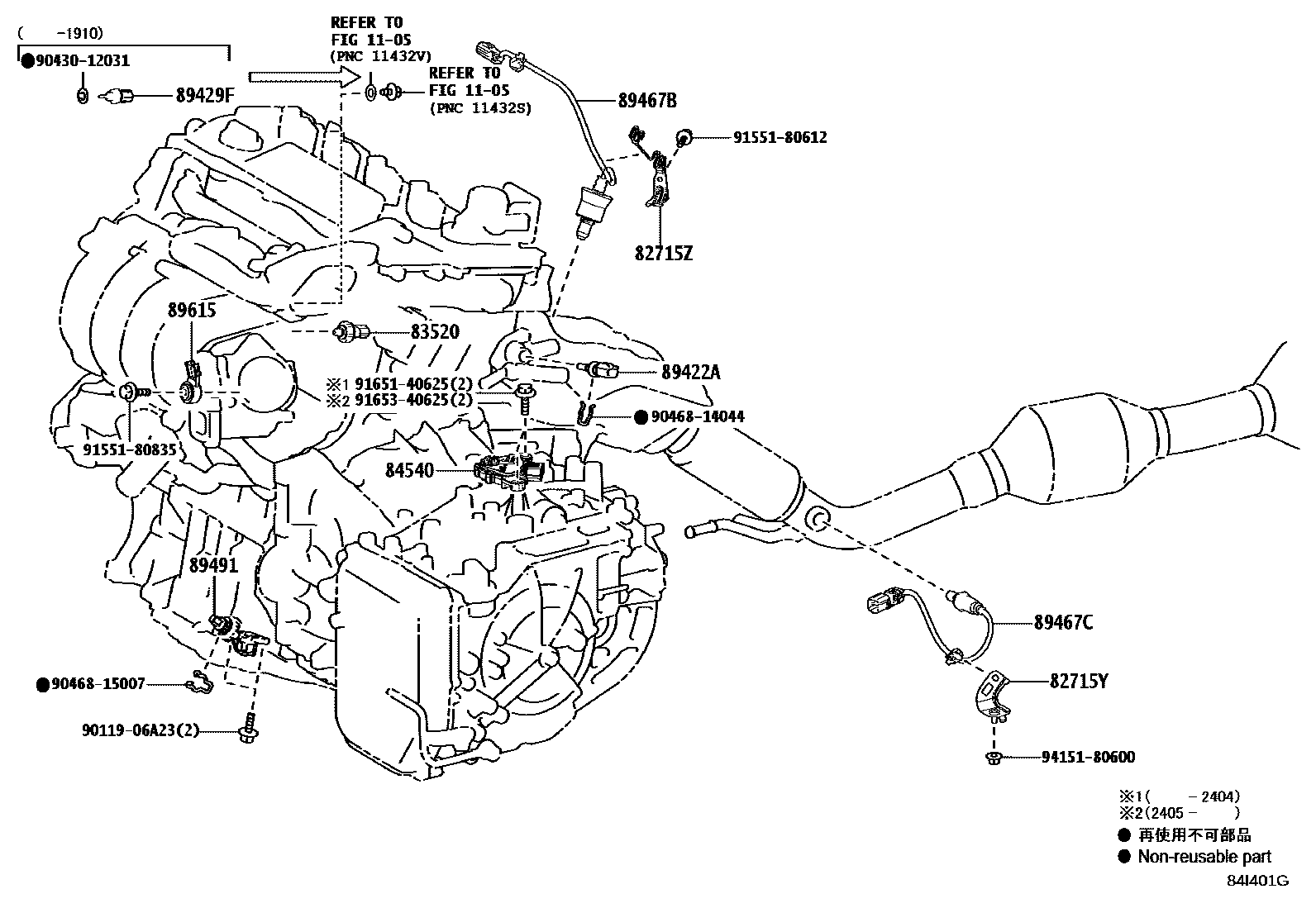

82715BRACKET,WIRING HARNESS CLAMP

main82715-33Q20iASV70,AXVA70,GSV70¥1,360201709-202101

main82715-33T30iAXVH7#¥1,450201712-202101

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-33J90iGSV70201712-202111

main82715-33K30iAXVA70,AXVH7#¥230201712-202101

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-12X50iMXVA71¥260202102

main82715-33K11iAXVA70,AXVH7#¥300201712-202101

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-33010iAXVA70,AXVH71¥2,710201712-201910

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXVA71¥7,600202102

main84540-33010iASV70¥7,600201709-202101

main84540-33020iAXVA70,GSV70¥8,400201712-202202

sub84540-33021¥7,600

sub35572-48051¥740

main84540-33021iAXVA70,GSV70¥7,600202202

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXVA70,AXVH7#¥2,410201712-202101

89429FSENSOR, TEMPERATURE

main89429-12010iAXVA70,AXVH71¥3,380201712-201910

89467BSENSOR, AIR FUEL RATIO

main89467-12280iMXVA71¥9,900202102

main89467-33270iGSV70201712-202111

main89467-33290iAXVA70,AXVH7#¥9,900201712-202101

main89467-48270iASV70¥9,900201709-202101

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-33210iAXVA70,AXVH7#¥9,900201712-202101

main89467-48320iGSV70¥9,900201712-202101

89491SENSOR, ENGINE OIL LEVEL

main89491-33050iAXVA70,AXVH71¥4,400201712-201805

sub89491-33051¥3,670

main89491-33051iAXVA70,AXVH7#¥3,670201806-202204

sub89491-33052¥3,330

main89491-33052iAXVA70,AXVH7#,MXVA71¥3,330202205

main89491-48020iGSV70¥4,400201712-201808

sub89491-48021¥4,410

main89491-48021iGSV70¥4,410201809-202004

sub89491-48040¥3,670

main89491-48040iGSV70¥3,670202005-202204

sub89491-48041¥3,330

main89491-48041iGSV70¥3,330202205

89615SENSOR, KNOCK CONTROL

main89615-06010iGSV70201712-202101

(L)

main89615-20090iGSV70¥2,370201712-202101

(J)

main89615-20090iASV70,AXVA70,AXVH7#¥2,370201709-202101

9011906A23

main90119-06A23¥60

9043012031

main90430-12031¥90

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180612

main91551-80612¥60

9155180835

main91551-80835¥80

9165140625

main91651-40625¥70

9165340625

main91653-40625

9415180600

main94151-80600¥60
