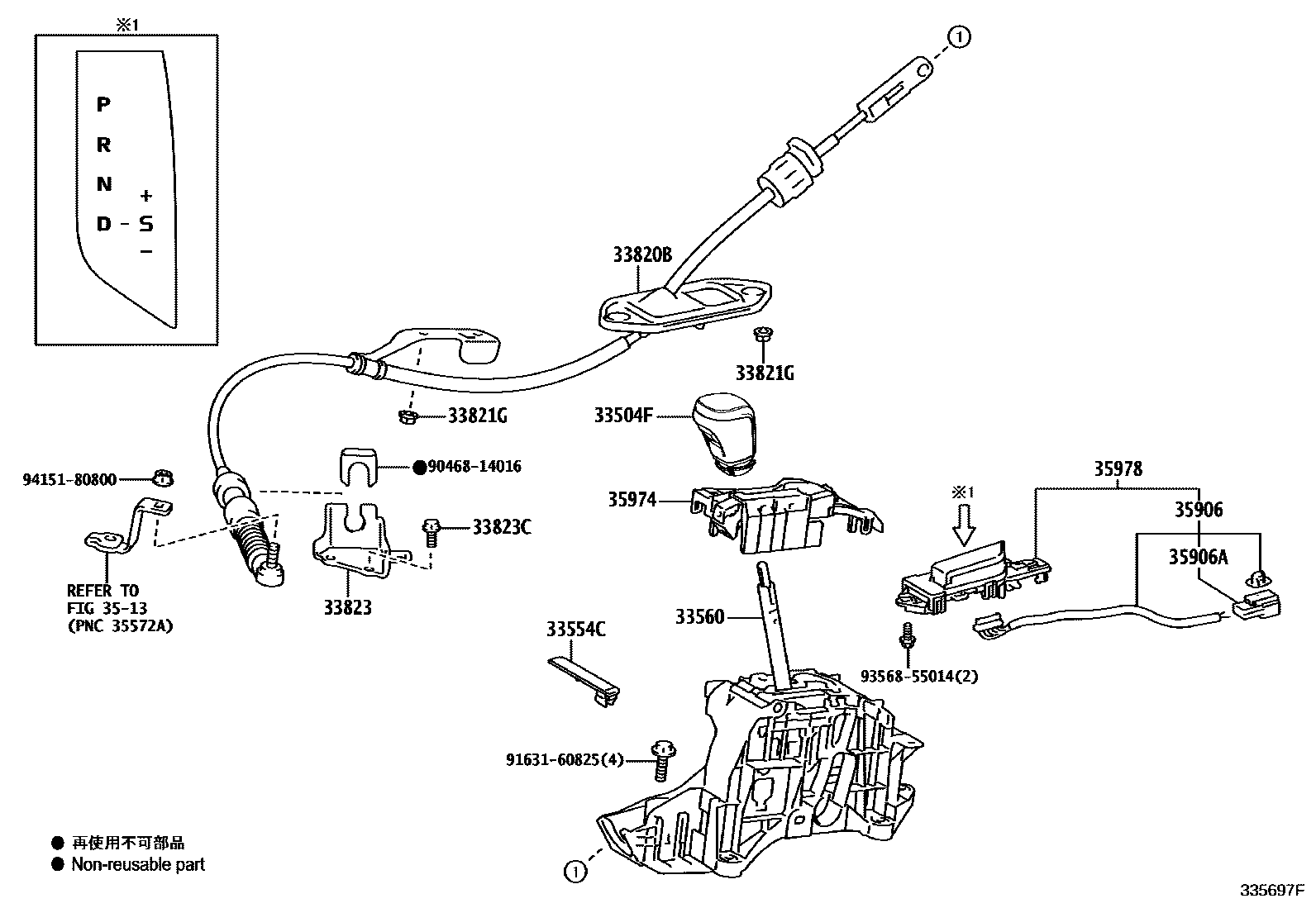

Toyota CAMRY/HYBRID — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12770-C0iAXVA70..SE201808-202101

BLACK,TRIM1#,2#,3#

main33504-12770-C0iAXVA70..SE201808-202101

ATARA S,BLACK,TRIM2#

main33504-12770-C0iAXVA70..SE201808-202101

ATARA SL,BLACK,TRIM2#

main33504-12770-C0iAXVA70..SE201808-202101

GLE,BLACK,TRIM1#,2#,4#

main33504-12770-C0iAXVA70..SE201808-202101

LIMITED,BLACK,TRIM1#,2#,4#

main33504-12770-C0iAXVH70..V201808-202101

BLACK,TRIM1#

main33504-12770-C0iAXVH70..V201808-202101

BLACK,TRIM2#,3#

main33504-12770-C0iAXVH70..V201808-202101

BLACK,TRIM2#,4#

main33504-12770-C0iAXVH70..V201808-202101

BLACK,TRIM1#,2#,4#

main33504-12770-C0iASV70,GSV70..V201808-202101

BLACK,TRIM2#

main33504-33170-C0iAXVH71..ARL;ASV70..D..ARL201712-202101

BLACK,TRIM1#,2#,4#

main33504-33170-C0iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

BLACK,TRIM1#,2#

main33504-33170-C0iAXVH70202008-202101

BLACK,TRIM2#

main33504-33180-C0iGSV70..SE201712-201807

ATARA SL,BLACK,TRIM2#,4#

main33504-33180-C0iASV70,AXVA70..SE201712-201807

BLACK,TRIM2#,3#

main33504-33180-C0iASV70,AXVA70..SE201712-201807

BLACK,TRIM1#,2#,4#

main33504-33180-C0iASV70,AXVA70..SE201712-201807

BLACK,TRIM1#,2#,3#

main33504-33180-C0iASV70,AXVA70..SE201712-201807

BLACK,TRIM1#,2#

main33504-33180-C0iASV70,AXVA70..SE201712-201807

ATARA S,BLACK,TRIM2#,4#

main33504-33180-C0iASV70,GSV70..N201709-201807

BLACK,TRIM2#,4#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-33130iAXVA70,AXVH71,GSV70,MXVA71..LHD201712-202101

main33554-33180iAXVA70,AXVH70..ARL¥210201709-202101

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33370iASV70..TAIW;ASV70,AXVA70..LE201712-202101

main33560-33380iAXVH71,GSV70;AXVA70..GLE,SE202102

TW 2.0 G

main33560-33380iAXVH71,GSV70..LHD;ASV70,AXVA70..GLE,SE201712-202101

main33560-33390iASV70..D..ARL201712-202101

main33560-33400iAXVH70¥18,400201709-202101

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-33400iAXVA70,GSV70..GCC201712-201810

main33820-33410iAXVH71..D201804-201810

main33820-33420iGSV70..ARL201712-201810

main33820-33430iAXVH71..ARL¥14,700201712-201810

main33820-33440iASV70..GCC201712-201811

main33820-33450iASV70..ARL201709-201811

sub33820-33451

main33820-33451iASV70..ARL201812-202101

main33820-33470iAXVA70..GCC201811-202207

main33820-33480iAXVA70..ARL201811-202101

main33820-33490iASV70..LHD201811-202101

sub33820-33440

main33820-33500iAXVH71..D201811-202101

main33820-33510iAXVH7#..ARL¥16,200201811-202101

main33820-33540iMXVA71202102

(L)

main33820-33560iAXVA70..GCC202207

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iAXVA70,AXVH7#,GSV70,MXVA71¥70201709-202101

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMXVA71¥650202102

main33823-33070iAXVA70,GSV70¥510201712-202101

main33823-33080iAXVH7#¥1,130201712-202101

main33823-33110iASV70201709-202101

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iASV70..ARL¥120201709-202101

main90119-W0016iASV70..LHD201712-202101

sub90119-08026¥120

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33180iAXVA70,GSV70..GCC201712-202101

main35906-33190iAXVH71..D201804-202101

main35906-33200iASV70,GSV70..ARL201709-202101

main35906-33210iAXVH70¥1,140201712-202101

main35906-33270iMXVA71202102

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iAXVA70,GSV70,MXVA71¥240201709-202101

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33240iAXVA70,AXVH71,GSV70,MXVA71..LHD201712-202101

main35974-33250iASV70,AXVH7#,GSV70..ARL¥2,410201709-202101

35978INDICATOR, SHIFT POSITION

main35978-33180iAXVA70,GSV70..GCC201712-202101

main35978-33190iAXVH71201804-202101

main35978-33200iASV70,GSV70..ARL201709-202101

main35978-33210iAXVH7#..ARL¥5,900201712-202101

main35978-33370iMXVA71202102

9046814016

main90468-14016¥160

9163160825

main91631-60825¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

16 parts on this diagram · 7 diagrams in section
