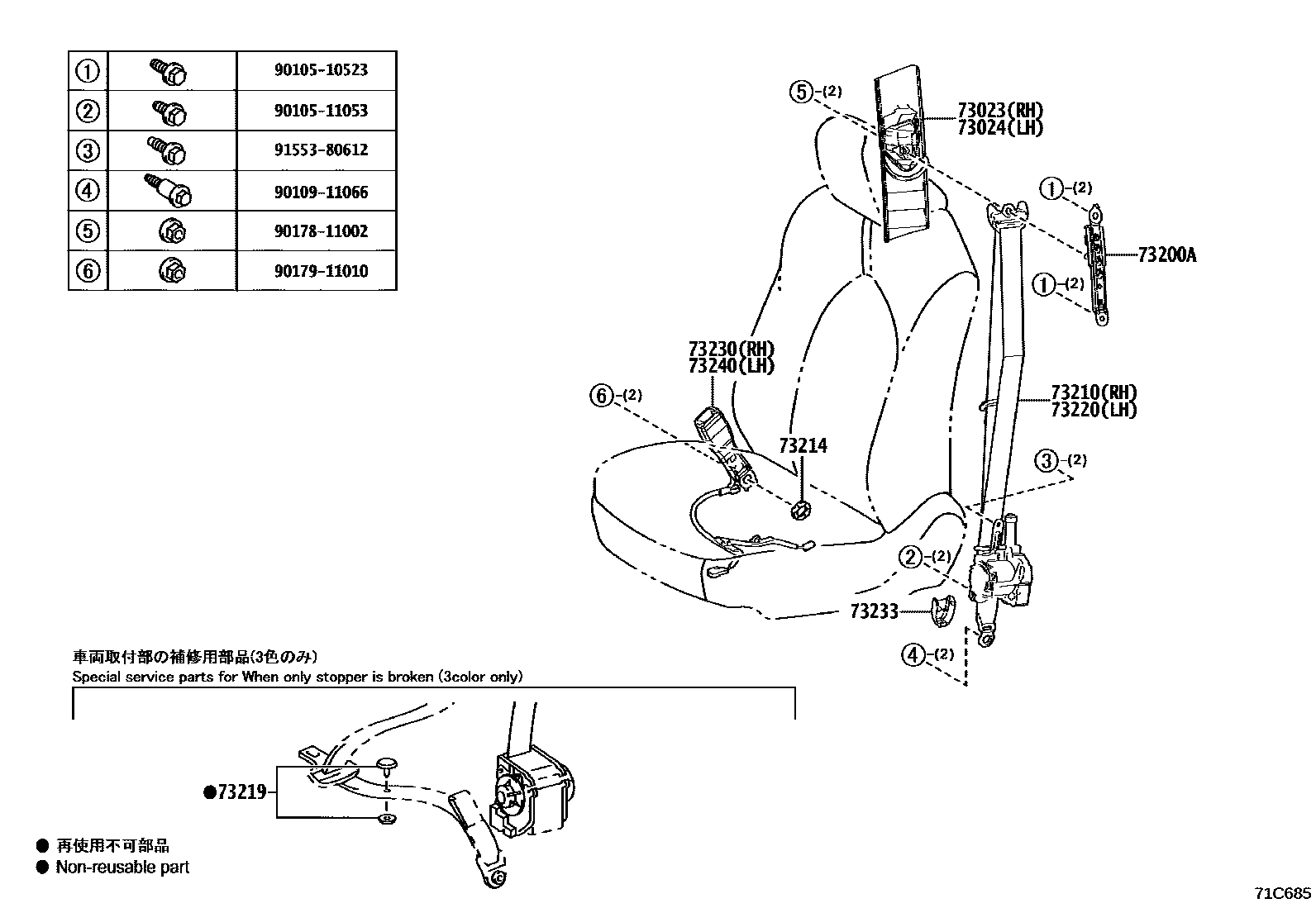

Toyota CAMRY/HYBRID — SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-B4iAXVA70..SE202102

GRAY,TRIM2#

main73023-58010-B4iAXVH70,GSV70..D,N;ASV70,AXVH71..TAIW,TAKR201712-202101

GRAY,TRIM2#

main73023-58010-B4iASV70,GSV70..V201712-202101

GRAY,TRIM1#,2#,3#

main73023-58010-B4iASV70,AXVA70,GSV70..SE201712-202101

GRAY,TRIM2#,3#

main73023-58010-B4iAXVA70..LE202102

GRAY,TRIM1#,2#

main73023-58010-B4iAXVA70..LE202102

GRAY,TRIM1#,2#,3#

main73023-58010-B4iAXVA70..LE202102

GRAY,TRIM1#

main73023-58010-B4iAXVA70..LE202102

GRAY,TRIM2#,3#

main73023-58010-B4iAXVA70..LE202102

GRAY,TRIM1#,2#,41

main73023-58010-B4iAXVH71..ARL,GCC;ASV70..(D,N)..ARL;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

GRAY,TRIM1#,2#

main73023-58010-E1iAXVH71;ASV70..TAIW;ASV70,GSV70..N;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

NEUTRAL BEIGE,TRIM4#

main73023-58010-E1iAXVA70..LE;AXVH71,MXVA71..TAIW,TAKR202102

NEUTRAL BEIGE,TRIM4#

main73023-58010-E1iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102

NEUTRAL BEIGE,TRIM40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-B4iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102

GRAY,TRIM1#,2#,41

sub73024-58010¥1,710

main73024-58010-B4iAXVH71..ARL,GCC;ASV70..(D,N)..ARL;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

GRAY,TRIM1#,2#

sub73024-58010¥1,710

main73024-58010-B4iASV70,GSV70..V201712-202101

GRAY,TRIM2#,3#

sub73024-58010¥1,710

main73024-58010-B4iASV70,GSV70..V201712-202101

GRAY,TRIM1#,2#,3#

sub73024-58010¥1,710

main73024-58010-B4iASV70,GSV70..V201712-202101

GRAY,TRIM2#

sub73024-58010¥1,710

main73024-58010-B4iAXVA70..LE202102

GRAY,TRIM1#,2#

sub73024-58010¥1,710

main73024-58010-B4iAXVA70..LE202102

GRAY,TRIM1#,2#,3#

sub73024-58010¥1,710

main73024-58010-B4iAXVA70..LE202102

GRAY,TRIM1#

sub73024-58010¥1,710

main73024-58010-B4iAXVA70..LE202102

GRAY,TRIM2#,3#

sub73024-58010¥1,710

main73024-58010-B4iAXVA70..LE202102

GRAY,TRIM2#

sub73024-58010¥1,710

main73024-58010-E1iAXVA70..LE;AXVH71,MXVA71..TAIW,TAKR202102

NEUTRAL BEIGE,TRIM4#

sub73024-58010¥1,710

main73024-58010-E1iAXVH71;ASV70..TAIW;ASV70,GSV70..N;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

NEUTRAL BEIGE,TRIM4#

sub73024-58010¥1,710

main73024-58010-E1iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102

NEUTRAL BEIGE,TRIM40

sub73024-58010¥1,710

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iASV70,AXVA70,AXVH7#,GSV70¥3,200201709-202101

main73200-12070iAXVA70,AXVH7#,GSV70,MXVA71¥3,200202102

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47281-A4iGSV70..N;ASV70,AXVH71..LHD..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

IVORY,TRIM4#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-A4iAXVA70..LE;AXVH71,MXVA71..TAIW,TAKR202102-202207

IVORY,TRIM40

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-A4iAXVH71..GCC;AXVA70,GSV70..GLE,LIMD202102-202207

IVORY,TRIM4#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iGSV70..SE202102-202207

BLACK,TRIM2#,3#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iAXVH7#..ARL,TAKR;ASV70,GSV70..D,N201709-202101

BLACK,TRIM2#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iASV70,GSV70..V201712-202101

BLACK,TRIM1#,2#,3#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iASV70,GSV70..V201712-202101

BLACK,TRIM1#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iASV70,GSV70..V201712-202101

BLACK,TRIM1#,2#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iAXVA70..LE202102-202207

BLACK,TRIM1#,2#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iAXVA70..LE202102-202207

BLACK,TRIM1#,2#,3#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iAXVA70..LE202102-202207

BLACK,TRIM1#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iAXVA70..LE202102-202207

BLACK,TRIM1#,2#,41

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47281-C7iAXVA70..LE202102-202207

BLACK,TRIM2#

sub73210-47281¥31,500

sub73210-47282¥26,200

main73210-47282-A4iAXVH71..GCC;GSV70..LIMD202208

NEUTRAL BEIGE/IVORY,TRIM40

main73210-47282-A4iAXVA70..GLE,LE;AXVH71,MXVA71..TAIW,TAKR202208

NEUTRAL BEIGE/IVORY,TRIM4#

main73210-47282-C7iAXVA70..GLE,LE202208

BLACK/BLACK,TRIM1#

main73210-47282-C7iAXVA70..GLE,LE202208

BLACK/BLACK,TRIM1#,2#

main73210-47282-C7iAXVA70..GLE,LE202208

BLACK/BLACK,TRIM1#,2#,41

main73210-47282-C7iAXVA70..GLE,LE202208

BLACK/BLACK,TRIM2#,3#

main73210-47282-C7iAXVA70..GLE,LE202208

BLACK/BLACK,TRIM2#

main73210-47282-C7iAXVH71..GCC;GSV70..LIMD202208

BLACK/BLACK,TRIM1#,2#,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iASV70,AXVA70,AXVH7#,GSV70¥170201709-202101

main73214-75010iAXVA70,AXVH7#,GSV70,MXVA71¥170202102

73219STOPPER, TONGUE PLATE

main73219-33010iAXVA70,AXVH7#,GSV70,MXVA71¥100202102

BLACK

main73219-33010iASV70,AXVA70,AXVH7#,GSV70¥100201709-202101

BLACK

main73219-33020iAXVA70,AXVH7#,GSV70,MXVA71¥100202102

GRAY

main73219-33020iASV70,AXVA70,AXVH7#,GSV70¥100201709-202101

GRAY

main73219-33030iASV70,AXVA70,AXVH7#,GSV70¥100201709-202101

BEIGE

main73219-33030iAXVA70,AXVH7#,GSV70,MXVA71¥100202102

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-A4iAXVA70..LE;AXVH71,MXVA71..TAIW,TAKR202102-202207

IVORY,TRIM4#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-A4iAXVA70..LE;AXVH71,MXVA71..TAIW,TAKR202102-202207

IVORY,TRIM40

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-A4iGSV70..N;ASV70,AXVH71..LHD..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

IVORY,TRIM4#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102-202207

BLACK,TRIM1#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102-202207

BLACK,TRIM2#,3#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102-202207

BLACK,TRIM1#,2#,41

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVA70,AXVH7#,MXVA71..D..(ARL,TAIW,TAKR)202102-202207

BLACK,TRIM2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVA70..LE202102-202207

BLACK,TRIM1#,2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVA70..LE202102-202207

BLACK,TRIM1#,2#,3#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iAXVH7#..ARL,TAKR;ASV70,GSV70..D,N201709-202101

BLACK,TRIM2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iASV70,GSV70..V201712-202101

BLACK,TRIM1#,2#,3#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iASV70,GSV70..V201712-202101

BLACK,TRIM1#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iASV70,GSV70..V201712-202101

BLACK,TRIM1#,2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47222-A4iAXVH71..GCC;GSV70..LIMD202208

NEUTRAL BEIGE/IVORY,TRIM40

main73220-47222-A4iAXVH71..GCC;GSV70..LIMD202208

NEUTRAL BEIGE/IVORY,TRIM4#

main73220-47222-C7iGSV70..SE202208

BLACK/BLACK,TRIM1#,2#,3#

main73220-47222-C7iGSV70..SE202208

BLACK/BLACK,TRIM1#

main73220-47222-C7iGSV70..SE202208

BLACK/BLACK,TRIM1#,2#

main73220-47222-C7iGSV70..SE202208

BLACK/BLACK,TRIM1#,2#,41

main73220-47222-C7iGSV70..SE202208

BLACK/BLACK,TRIM2#,3#

main73220-47222-C7iGSV70..SE202208

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33870-C0iASV70,GSV70..V201712-202101

ATARA S,BLACK,TRIM2#

main73230-33870-C0iASV70,GSV70..V201712-202101

ATARA SL,BLACK,TRIM2#

main73230-33870-C0iAXVH7#..ARL201712-202101

BLACK,TRIM2#,3#

main73230-33870-C0iASV70,GSV70..N201709-202101

BLACK,TRIM2#

main73230-33870-C0iAXVH70..D202102

ATARA SL,BLACK,TRIM2#

main73230-33870-C0iAXVH70..D202102

ATARA S,BLACK,TRIM2#

main73230-33870-C0iAXVH70..D202102

BLACK,TRIM2#,3#

main73230-33870-E0iGSV70..N201712-202101

ATARA SL,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iASV70..N;AXVH71..ARL201712-202101

NEUTRAL BEIGE,TRIM4#

main73230-33880-C0iAXVH7#..ARL;ASV70..D..ARL201712-202101

BLACK,TRIM2#

main73230-33880-C0iAXVA70,AXVH70..D202102

BLACK,TRIM2#

main73230-33890-C0iGSV70..LIMD202102

BLACK,TRIM1#,2#

main73230-33890-C0iGSV70..LIMD202102

BLACK,TRIM2#

main73230-33890-C0iGSV70..SE202102

BLACK,TRIM1#,2#,41

main73230-33890-C0iGSV70..SE202102

BLACK,TRIM1#,2#,3#

main73230-33890-C0iGSV70..SE202102

BLACK,TRIM1#

main73230-33890-C0iGSV70..SE201712-202101

BLACK,TRIM1#,2#,3#

main73230-33890-C0iGSV70..SE201712-202101

BLACK,TRIM1#,2#

main73230-33890-C0iASV70,AXVH71..TAIW,TAKR201808-202101

BLACK,TRIM2#

main73230-33890-E0iAXVH71..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101

NEUTRAL BEIGE,TRIM4#

main73230-33890-E0iAXVH71,MXVA71;AXVA70..GLE,LE202102

NEUTRAL BEIGE,TRIM4#

main73230-33890-E0iAXVH71,MXVA71;AXVA70..GLE,LE202102

NEUTRAL BEIGE,TRIM40

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iAXVH71..GCC;AXVA70,GSV70..GLE,LE,LIMD202102

BLACK,TRIM1#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iAXVH71..GCC;AXVA70,GSV70..GLE,LE,LIMD202102

BLACK,TRIM2#,3#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iAXVH71..GCC;AXVA70,GSV70..GLE,LE,LIMD202102

BLACK,TRIM2#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iAXVH71..GCC;AXVA70,GSV70..GLE,LE,LIMD202102

BLACK,TRIM1#,2#,4#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iGSV70..SE202102

BLACK,TRIM1#,2#,3#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iGSV70..SE202102

BLACK,TRIM2#,4#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iASV70..N;AXVH71..ARL,GCC;ASV70,AXVA70,GSV70..GLE,LE,LIMD201709-202101

BLACK,TRIM1#,2#,4#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iASV70,GSV70..V201712-202101

BLACK,TRIM1#,2#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iASV70,GSV70..V201712-202101

BLACK,TRIM1#,2#,3#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iASV70,GSV70..V201712-202101

BLACK,TRIM2#,4#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iAXVH70202008-202101

BLACK,TRIM2#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33800-C0iGSV70..N201712-202101

BLACK,TRIM2#

main73230-33800-E0iASV70..N;AXVH71..ARL201712-202101

ATARA SL,NEUTRAL BEIGE,TRIM4#

main73230-33800-E0iGSV70..N201712-202101

NEUTRAL BEIGE,TRIM4#

main73230-33870-C0iGSV70..SE202102

BLACK,TRIM2#

main73230-33870-C0iGSV70..SE201712-202101

BLACK,TRIM1#,2#,3#

main73230-33870-C0iGSV70..SE201712-202101

BLACK,TRIM1#,2#

main73230-33870-C0iGSV70..LIMD202102

GLE&CONVENIENT PACKAGE,BLACK,TRIM1#,2#,41

main73230-33870-C0iGSV70..LIMD202102

LIMITED,BLACK,TRIM1#,2#,41

main73230-33870-C0iGSV70..LIMD202102

LIMITED&EXCLUSIVE PACKAGE,BLACK,TRIM1#,2#,41

main73230-33870-C0iGSV70..LIMD202102

TW 2.0 G,BLACK,TRIM2#

main73230-33870-C0iGSV70..SE202102

BLACK,TRIM1#,2#,41

main73230-33870-C0iGSV70..SE202102

BLACK,TRIM1#,2#,3#

main73230-33870-C0iGSV70..SE202102

BLACK,TRIM1#,2#

main73230-33870-C0iGSV70..SE202102

BLACK,TRIM1#

main73230-33870-C0iGSV70..SE202102

GLE,BLACK,TRIM1#,2#

main73230-33870-C0iAXVH71..TAKR201808-202101

BLACK,TRIM2#

main73230-33870-E0iAXVA70..GLE;AXVH71..TAKR202102

GLE,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVA70..GLE;AXVH71..TAKR202102

NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iAXVA70..GLE;AXVH71..TAKR202102

NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..LIMD202102

TW 2.0 G,NEUTRAL BEIGE,TRIM4#

main73230-33870-E0iGSV70..LIMD202102

LIMITED&EXCLUSIVE PACKAGE,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..LIMD202102

LIMITED,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iGSV70..LIMD202102

GLE&CONVENIENT PACKAGE,NEUTRAL BEIGE,TRIM40

main73230-33870-E0iAXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD201712-202101

NEUTRAL BEIGE,TRIM4#

main73230-33880-C0iMXVA71202102

BLACK,TRIM2#

main73230-33880-C0iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

BLACK,TRIM1#,2#

main73230-33880-C0iASV70..TAIW201810-202101

BLACK,TRIM2#

main73230-33880-C0iAXVA70..LE;AXVH71..GCC202102

BLACK,TRIM1#,2#

main73230-33880-E0iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

NEUTRAL BEIGE,TRIM4#

main73230-33880-E0iAXVA70..LE;AXVH71,MXVA71..GCC,TAIW202102

NEUTRAL BEIGE,TRIM4#

main73230-33890-C0iASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

main73230-33890-C0iAXVA70,AXVH70..D202102

BLACK,TRIM2#

main73230-33890-C0iAXVA70,AXVH70..D202102

BLACK,TRIM2#,3#

main73230-33890-C0iAXVH7#..ARL;ASV70..(D,N)..ARL201709-202101

BLACK,TRIM2#

9010510523

main90105-10523¥100

9010511053

main90105-11053¥100

9010911066

main90109-11066¥190

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

16 parts on this diagram · 2 diagrams in section
