Toyota CAMRY/HYBRID — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

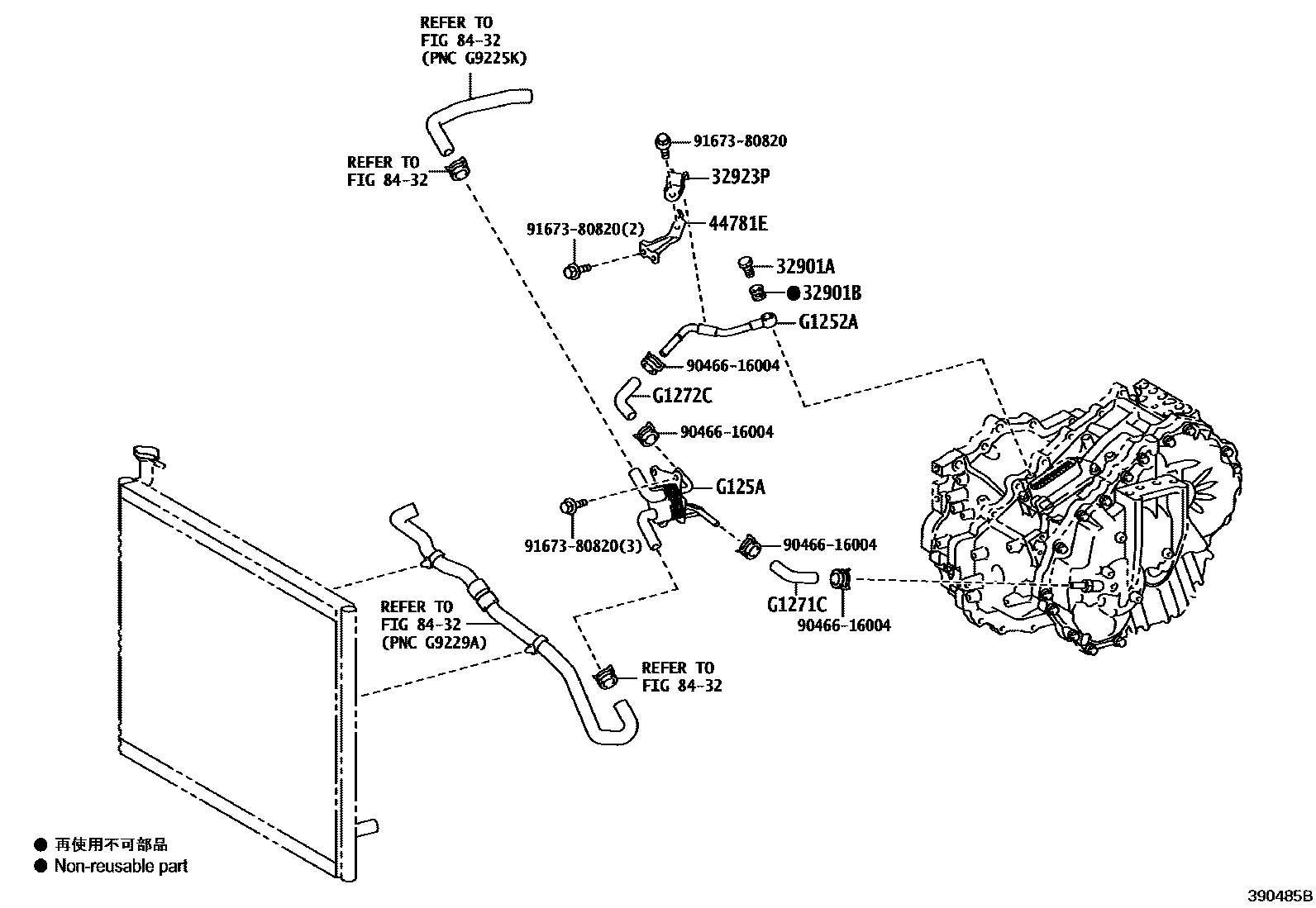

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i¥390201712-202101

main90401-12039i¥390202102

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i¥80201712-202101

main90430-12037i¥80202102

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i¥200201712-202101

main32923-52040i¥200202102

44781EBRACKET, HOSE

main44781-33020i¥470201712-202101

main44781-33020i¥470202102

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010i201712-202101

mainG125233010i202102

G125ACOOLER, MOTOR COOLING

mainG125A33010i201712-202101

mainG125A33010i202102

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010i201712-202101

mainG127133010i202102

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010i201712-202101

mainG127233010i202102

9046616004

main90466-16004¥180

9167380820

main91673-80820¥80

11 parts on this diagram · 1 diagram in section
