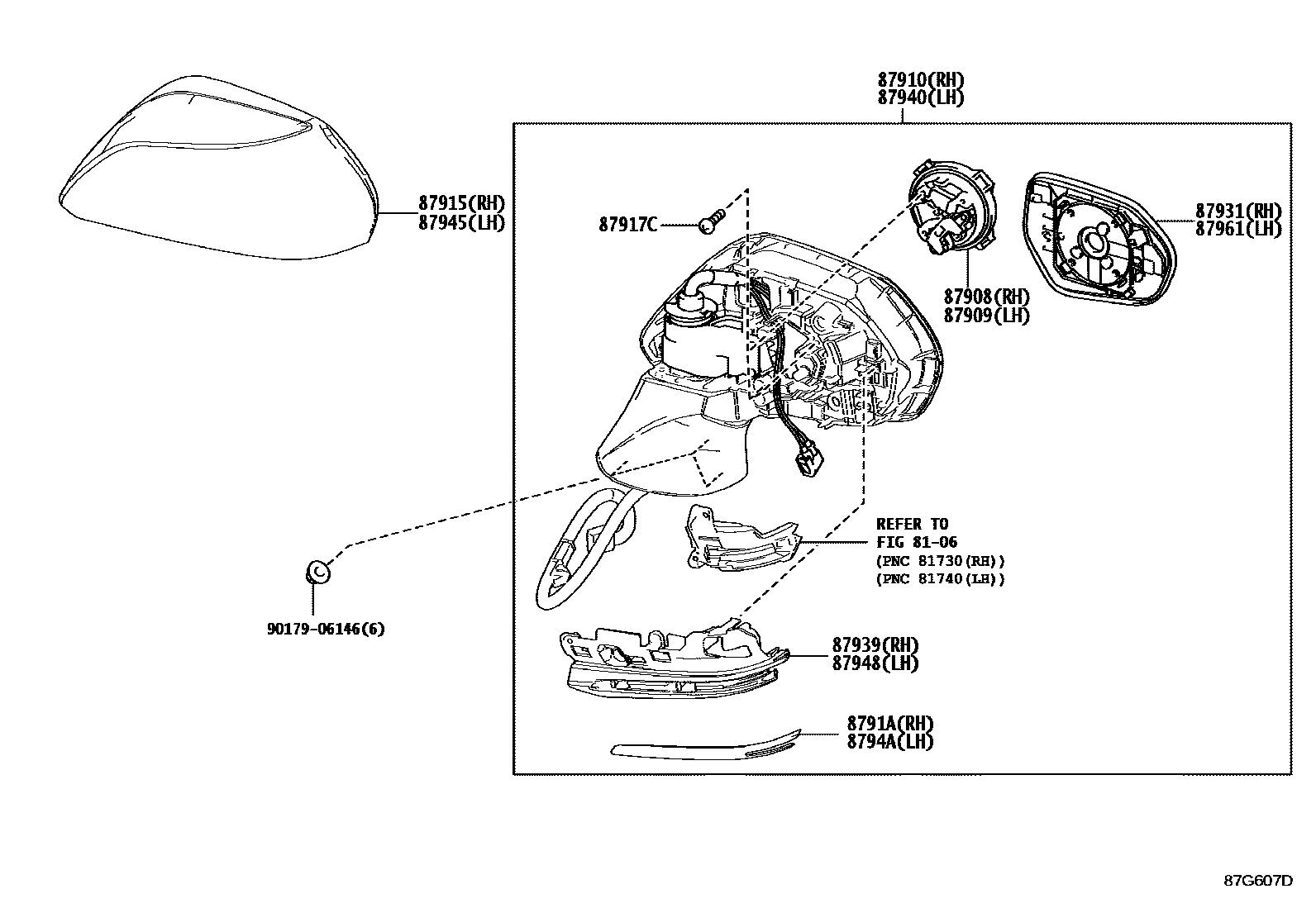

Toyota CAMRY/HYBRID — MIRROR

0001 1OUTER REAR VIEW MIRROR,*551 0004 1OUTER REAR VIEW MIRROR,*57 0005 1OUTER REAR VIEW MIRROR,*57 0006 1INNER REAR VIEW MIRROR

8106

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-42M50iGSV70..GCC¥18,300201709-202101

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-42M50iAXVA70,AXVH7#,GSV70,MXVA71¥18,300201709-202101

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-33C40iGSV70..V;ASV70,AXVH7#..ARL201709-202101

main87910-33C40iAXVA70,AXVH70..D202102

NO PAINT REQ.

main87910-33C50iGSV70..N201712-202101

main87910-33C60iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

main87910-33C60iAXVA70..LE;AXVH71..GCC202102

NO PAINT REQ.

main87910-33C70iAXVH71..GCC202102

NO PAINT REQ.,LIMITED

sub87910-33C71

main87910-33C70iASV70,AXVA70,GSV70..GLE,LIMD,SE201712-202101

sub87910-33C71

main87910-33C70iAXVH71..GCC202102

NO PAINT REQ.

sub87910-33C71

main87910-33C70iAXVH71..GCC202102

NO PAINT REQ.,GLE

sub87910-33C71

main87910-33D30iASV70..TAIW¥27,900201810-202101

main87910-33D30iMXVA71¥27,900202102

NO PAINT REQ.

main87910-33J50iAXVH71..TAKR201808-202101

main87910-33K10iAXVH70..V¥36,700202102

NO PAINT REQ.,ATARA S

main87910-33K10iAXVH70..D¥36,700202102

NO PAINT REQ.

main87910-33K30iMXVA71202102

NO PAINT REQ.,TW 2.0 G

main87910-33K30iAXVH71..TAKR202102

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-33030-A0iAXVA70..GLE,LE;AXVA70,AXVH7#,MXVA71..D,V201709-202101

SUPER WHITE 2,040

main87915-33030-A1iASV70,AXVA70,AXVH7#,GSV70..ARL,GCC201709-202101

PLATINUM WHITE PEARL MC.,089

main87915-33030-B0iASV70,AXVA70,AXVH7#,GSV70201709-202101

SILVER ME.,1F7

main87915-33030-B3iAXVA70,AXVH7#,GSV70,MXVA71202102

PRECIOUS METAL,1L5

main87915-33030-C0iAXVH70..V201709-202101

ATTITUDE BLACK MC.,218

main87915-33030-C0iGSV70..SE201712-202101

ATTITUDE BLACK MC.,218 ,2PG ,2SC

main87915-33030-C0iGSV70..SE202102

ATTITUDE BLACK MC.,218 ,2PS ,2SC ,2XM

main87915-33030-C0iGSV70..SE202102

ATTITUDE BLACK MC.,218 ,2PS ,2RC ,2SC

main87915-33030-D0iASV70,AXVA70,AXVH71,GSV70201709-201808

EMOTIONAL RED,3T7

main87915-33030-D1iASV70,AXVA70,AXVH7#,GSV70201808-202208

EMOTIONAL RED 2,3U5

main87915-33030-D3iAXVA70,AXVH7#,GSV70,MXVA71202208

EMOTIONAL RED 3,3U9

main87915-33030-E0iAXVH71..GCC;AXVA70..GLE,LE201712-202101

YANMER BEIGE,4Q0

main87915-33030-E1iASV70,AXVA70,AXVH7#,GSV70201709-202101

STEEL BLONDE ME.,4X1

main87915-33030-E2iASV70,AXVA70,AXVH7#,GSV70201709-202101

GRAPHITE ME.,4X7

main87915-33030-J0iAXVA70,AXVH7#,GSV70..ARL,GCC201709-202101

DK.BLUE M.M.,8W7

87917CSCREW, OUTER MIRROR

main87917-15010iAXVA70,AXVH7#,GSV70,MXVA71¥50201709-202101

8791ACOVER, OUTER MIRROR, RH NO.2

main8791B-47360iAXVA70,AXVH7#,GSV70,MXVA71¥1,010201709-202101

87931OUTER MIRROR, RH

main87902-12010iMXVA71¥6,300202102

TW 2.0 G

main87902-33120iAXVA70,AXVH70..D201709-202101

main87902-33130iGSV70..N201712-202101

main87902-33140iAXVA70,AXVH71,GSV70..GCC201712-202101

main87902-33190iASV70..TAIW201810-202101

main87902-33200iAXVH71..TAKR201808-202101

main87902-33350iAXVH70..V¥7,800202102

ATARA SL

main87902-33350iAXVH70..V¥7,800202102

ATARA S

87939COVER, OUTER MIRROR HOLE, RH

main87939-47360iAXVA70,AXVH7#,GSV70,MXVA71¥1,630201709-202101

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-33C40iAXVA70,AXVH70..D202102

NO PAINT REQ.

main87940-33C40iGSV70..V;ASV70,AXVH7#..ARL201709-202101

main87940-33C50iGSV70..N201712-202101

main87940-33C60iAXVA70..LE;AXVH71..GCC202102

NO PAINT REQ.

main87940-33C60iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

main87940-33C70iAXVH71..GCC202102

NO PAINT REQ.

sub87940-33C71¥27,600

main87940-33C70iASV70,AXVA70,GSV70..GLE,LIMD,SE201712-202101

sub87940-33C71¥27,600

main87940-33C70iAXVA70,GSV70..GLE,LIMD,SE202102

NO PAINT REQ.,GLE

sub87940-33C71¥27,600

main87940-33C70iAXVA70,GSV70..GLE,LIMD,SE202102

NO PAINT REQ.,LIMITED

sub87940-33C71¥27,600

main87940-33D30iMXVA71202102

NO PAINT REQ.

main87940-33D30iASV70..TAIW201810-202101

main87940-33J50iAXVH71..TAKR201808-202101

main87940-33K10iAXVH70..D¥34,300202102

NO PAINT REQ.

main87940-33K10iAXVH70..V¥34,300202102

NO PAINT REQ.,ATARA S

main87940-33K30iAXVH71..TAKR202102

NO PAINT REQ.

main87940-33K30iAXVH71..TAKR202102

NO PAINT REQ.,TW 2.0 G

87945COVER, OUTER MIRROR, LH

main87945-33030-A0iAXVH7#;ASV70,AXVA70..GLE,LE;ASV70,GSV70..ARL,TAIW201709-202101

SUPER WHITE 2,040

main87945-33030-A1iAXVA70,AXVH7#,GSV70..ARL,GCC201709-202101

PLATINUM WHITE PEARL MC.,089

main87945-33030-B0iASV70,AXVA70,AXVH7#,GSV70201709-202101

SILVER ME.,1F7

main87945-33030-B3iAXVA70,AXVH7#,GSV70,MXVA71202102

PRECIOUS METAL,1L5

main87945-33030-C0iAXVH70..V202102

ATTITUDE BLACK MC.,218 ,2PS ,2SC ,2XM

main87945-33030-C0iGSV70..ARL;GSV70..LIMD;ASV70,AXVA70,AXVH7#201709-202101

ATTITUDE BLACK MC.,218

main87945-33030-C0iGSV70..SE201712-202101

ATTITUDE BLACK MC.,218 ,2PG ,2SC

main87945-33030-C0iGSV70..SE202102

ATTITUDE BLACK MC.,218 ,2PS ,2RC ,2SC

main87945-33030-D0iASV70,AXVA70,AXVH71,GSV70201709-201808

EMOTIONAL RED,3T7

main87945-33030-D1iAXVA70,AXVH7#,GSV70,MXVA71201808-202208

EMOTIONAL RED 2,3U5

main87945-33030-D3iAXVA70,AXVH7#,GSV70,MXVA71202208

EMOTIONAL RED 3,3U9

main87945-33030-E0iAXVH71..GCC;AXVA70..GLE,LE201712-202101

YANMER BEIGE,4Q0

main87945-33030-E1iASV70,AXVA70,AXVH7#,GSV70201709-202101

STEEL BLONDE ME.,4X1

main87945-33030-E2iASV70,AXVA70,AXVH7#,GSV70201709-202101

GRAPHITE ME.,4X7

main87945-33030-J0iASV70,AXVA70,AXVH7#,GSV70..ARL,GCC201709-202101

DK.BLUE M.M.,8W7

87948COVER, OUTER MIRROR HOLE, LH

main87948-47250iASV70,AXVA70,AXVH7#,GSV70¥1,630201709-202101

8794ACOVER, OUTER MIRROR, LH NO.2

main8794B-47250iASV70,AXVA70,AXVH7#,GSV70¥1,010201709-202101

87961MIRROR OUTER, LH

main87907-12020iAXVH70..D¥6,300202102

ATARA SL

main87907-12020iAXVH70..V¥6,300202102

ATARA S

main87907-33100iGSV70..V;ASV70,AXVH7#..ARL201709-202101

main87907-33110iGSV70..N201712-202101

main87907-33120iASV70,AXVA70,AXVH71,GSV70..GCC201712-202101

main87907-33170iASV70..TAIW¥4,090201810-202101

main87907-33190iAXVH71..TAKR201808-202101

main87907-33191iMXVA71202102

TW 2.0 G

9017906146

main90179-06146¥100

15 parts on this diagram · 4 diagrams in section
