Toyota CAMRY/HYBRID — METER

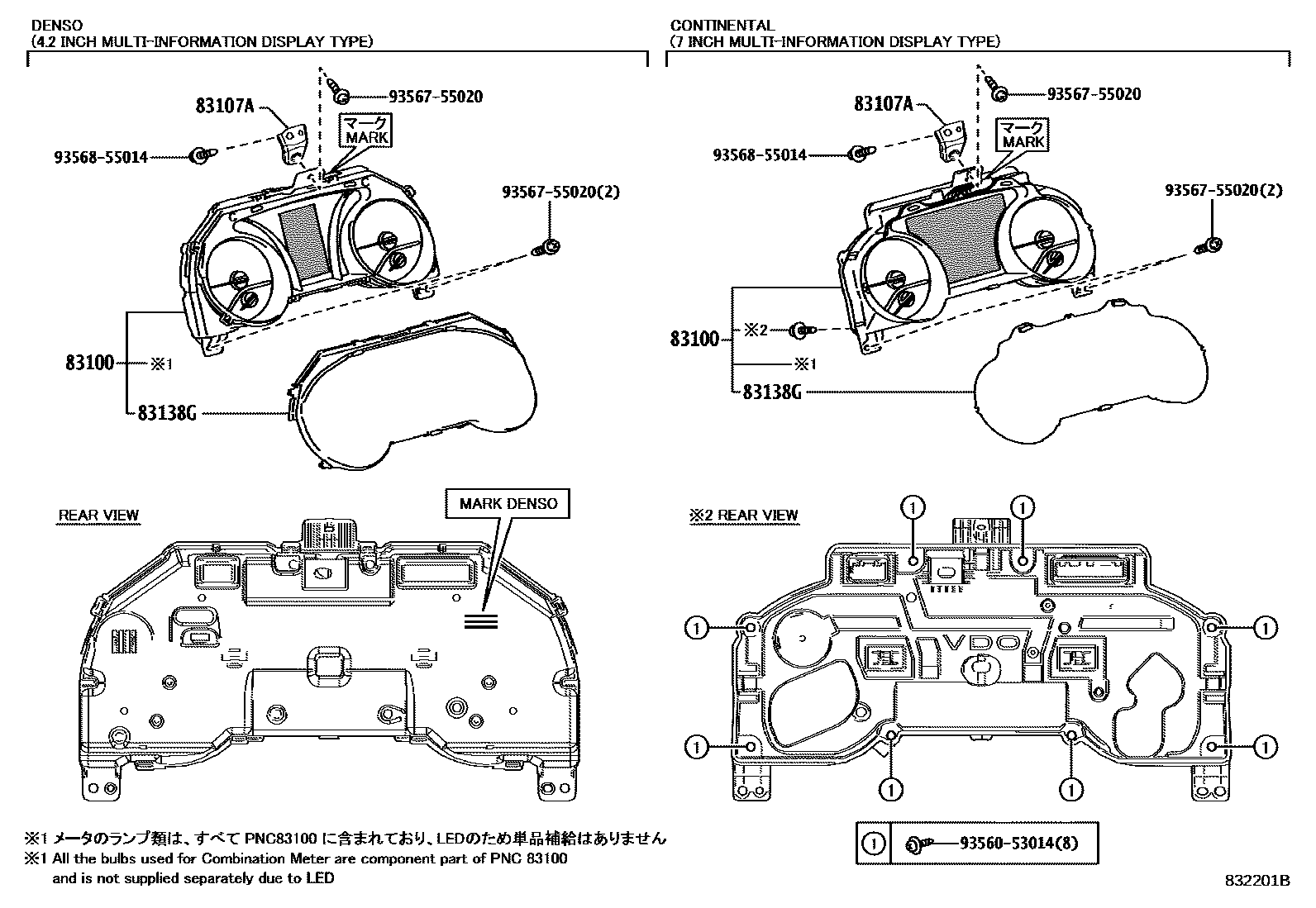

83100METER ASSY, COMBINATION

main83800-33Q30i201712-201910

DENSO,MARK=83800-33Q30

main83800-33Q31i201910-202101

DENSO,MARK=83800-33Q31

main83800-33Q32i202102-202208

DENSO,MARK=83800-33Q32

main83800-33Q33i202208

DENSO,MARK=83800-33Q33

main83800-33Q70i201712-201910

DENSO,MARK=83800-33Q70

main83800-33Q71i201910-202101

DENSO,MARK=83800-33Q71

main83800-33Q72i202102-202208

DENSO,MARK=83800-33Q72

main83800-33Q73i202208

DENSO,MARK=83800-33Q73

main83800-33R00i201712-201808

DENSO,MARK=83800-33R00

main83800-33R01i201808-201910

DENSO,MARK=83800-33R01

main83800-33R02i201910-202101

DENSO,MARK=83800-33R02

main83800-33R40i201712-201808

CONTINENTAL,MARK=83800-33R40

main83800-33R41i201808-201812

CONTINENTAL,MARK=83800-33R41

sub83800-33R42

main83800-33R42i201901-201910

CONTINENTAL,MARK=83800-33R42

main83800-33R43i201910-202101

CONTINENTAL,MARK=83800-33R43

main83800-33R44i202102-202105

CONTINENTAL,MARK=83800-33R44

sub83800-33R45

main83800-33R45i202106-202111

CONTINENTAL,MARK=83800-33R45

main83800-33R46i202111-202208

CONTINENTAL,MARK=83800-33R46

main83800-33R47i202208

CONTINENTAL,MARK=83800-33R47

main83800-33R90i201712-201910

DENSO,MARK=83800-33R90

main83800-33R91i201910-202101

DENSO,MARK=83800-33R91

main83800-33R92i202102-202208

DENSO,MARK=83800-33R92

main83800-33R93i202208

DENSO,MARK=83800-33R93

main83800-33S20i201709-201910

CONTINENTAL,MARK=83800-33S20

main83800-33S21i201910-202101

CONTINENTAL,MARK=83800-33S21

main83800-33S30i201712-201910

CONTINENTAL,MARK=83800-33S30

main83800-33S31i201910-202101

CONTINENTAL,MARK=83800-33S31

main83800-33S31i201910-202101

CONTINENTAL,ATARA SL,MARK=83800-33S31

main83800-33S40i201712-201910

CONTINENTAL,MARK=83800-33S40

main83800-33S41i201910-202101

CONTINENTAL,MARK=83800-33S41

main83800-33S52i202102-202105

CONTINENTAL,ATARA S,MARK=83800-33S52

sub83800-33S53

main83800-33S52i202102-202105

CONTINENTAL,ATARA SL,MARK=83800-33S52

sub83800-33S53

main83800-33S52i202102-202105

CONTINENTAL,MARK=83800-33S52

sub83800-33S53

main83800-33S53i202106-202111

CONTINENTAL,MARK=83800-33S53

main83800-33S53i202106-202111

CONTINENTAL,ATARA S,MARK=83800-33S53

main83800-33S53i202106-202111

CONTINENTAL,ATARA SL,MARK=83800-33S53

main83800-33S54i202111-202208

CONTINENTAL,ATARA SL,MARK=83800-33S54

main83800-33S54i202111-202208

CONTINENTAL,MARK=83800-33S54

main83800-33S54i202111-202208

CONTINENTAL,ATARA S,MARK=83800-33S54

main83800-33S55i202208

CONTINENTAL,ATARA S,MARK=83800-33S55

main83800-33S55i202208

CONTINENTAL,ATARA SL,MARK=83800-33S55

main83800-33S55i202208

CONTINENTAL,MARK=83800-33S55

main83800-33X30i201804-201910

DENSO,MARK=83800-33X30

main83800-33X31i201910-202101

DENSO,MARK=83800-33X31

main83800-33X32i202102-202208

DENSO,MARK=83800-33X32

main83800-33X33i202208

DENSO,MARK=83800-33X33

main83800-33X50i201712-201910

CONTINENTAL,MARK=83800-33X50

main83800-33X51i201910-202101

CONTINENTAL,MARK=83800-33X51

main83800-33X52i202102-202105

CONTINENTAL,MARK=83800-33X52

sub83800-33X53

main83800-33X53i202106-202111

CONTINENTAL,MARK=83800-33X53

main83800-33X54i202111-202208

CONTINENTAL,MARK=83800-33X54

main83800-33X55i202208

CONTINENTAL,MARK=83800-33X55

main83800-33X60i201808-201910

CONTINENTAL,MARK=83800-33X60

main83800-33X61i201910-202101

CONTINENTAL,MARK=83800-33X61

main83800-33X62i202102-202105

CONTINENTAL,MARK=83800-33X62

sub83800-33X63

main83800-33X63i202106-202111

CONTINENTAL,MARK=83800-33X63

main83800-33X64i202111-202208

CONTINENTAL,MARK=83800-33X64

main83800-33X65i202208

CONTINENTAL,MARK=83800-33X65

main83800-33Y10i201810-201811

DENSO

sub83800-33Y11

main83800-33Y11i201811-201910

DENSO,MARK=83800-33Y11

main83800-33Y12i201910-202101

DENSO,MARK=83800-33Y12

main83800-33Y13i202102-202208

DENSO,MARK=83800-33Y13

main83800-33Y14i202208

DENSO,MARK=83800-33Y14

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-33010i¥180201709-202101

83138GGLASS, COMBINATION METER

main83852-33Q10i201712-202101

main83852-33S80i¥2,450202102

LIMITED

main83852-33S80i¥2,450201709-202101

main83852-33S80i¥2,450202102

ATARA S

main83852-33S80i¥2,450202102

ATARA SL

9356053014

main93560-53014¥70

9356755020

main93567-55020¥70

9356855014

main93568-55014¥70

6 parts on this diagram · 3 diagrams in section
