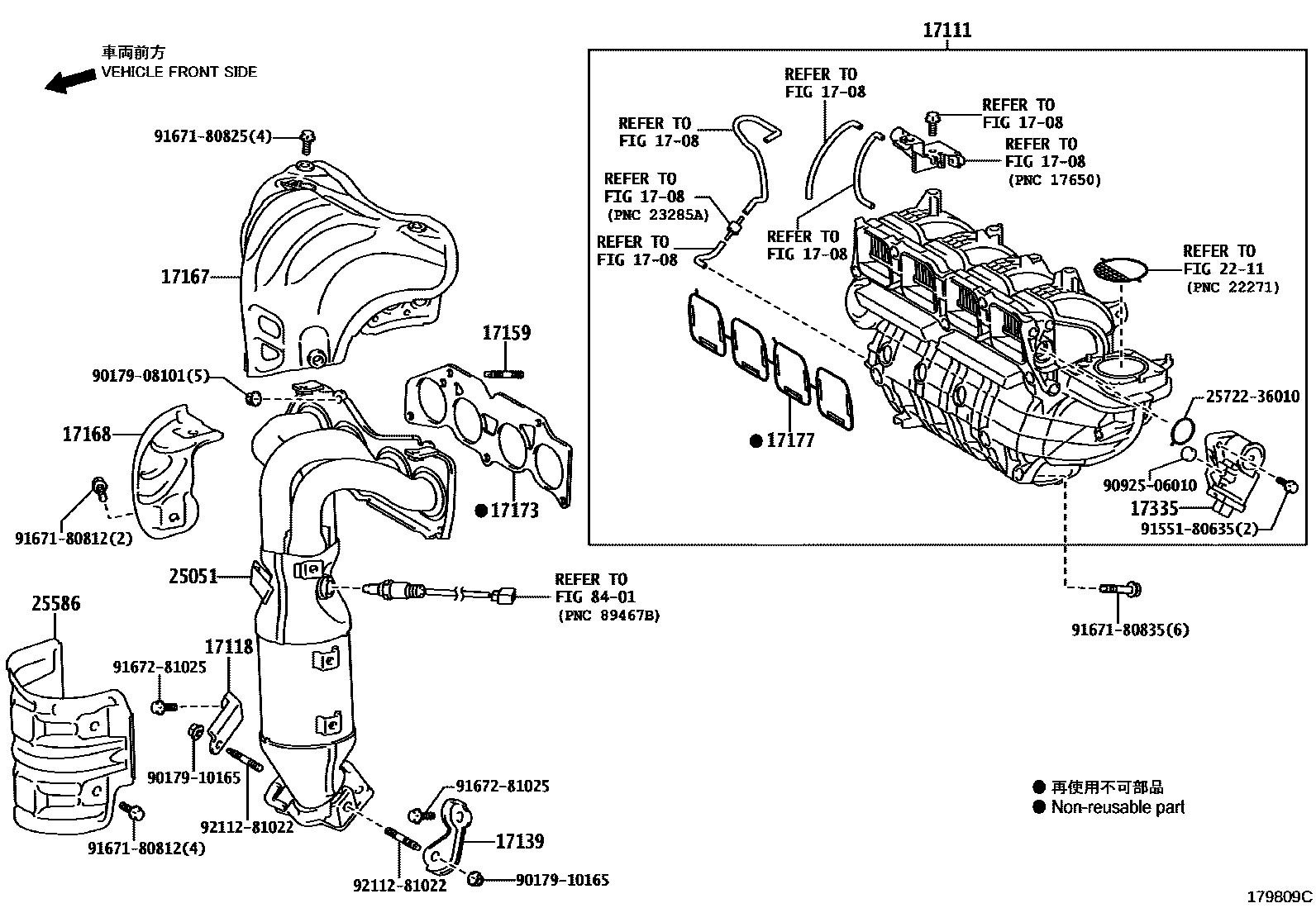

Toyota CAMRY/HYBRID — MANIFOLD
1708
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17139STAY, MANIFOLD, NO.2
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17335ACTUATOR, INTAKE AIR CONTROL VALVE
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
8401
2572236010GASKET, ELECTRIC AIR CONTROL VALVE
9017908101
9017910165
9092506010
9155180635
9167180812
9167180825
9167180835
9167281025
9211281022
24 parts on this diagram · 8 diagrams in section
