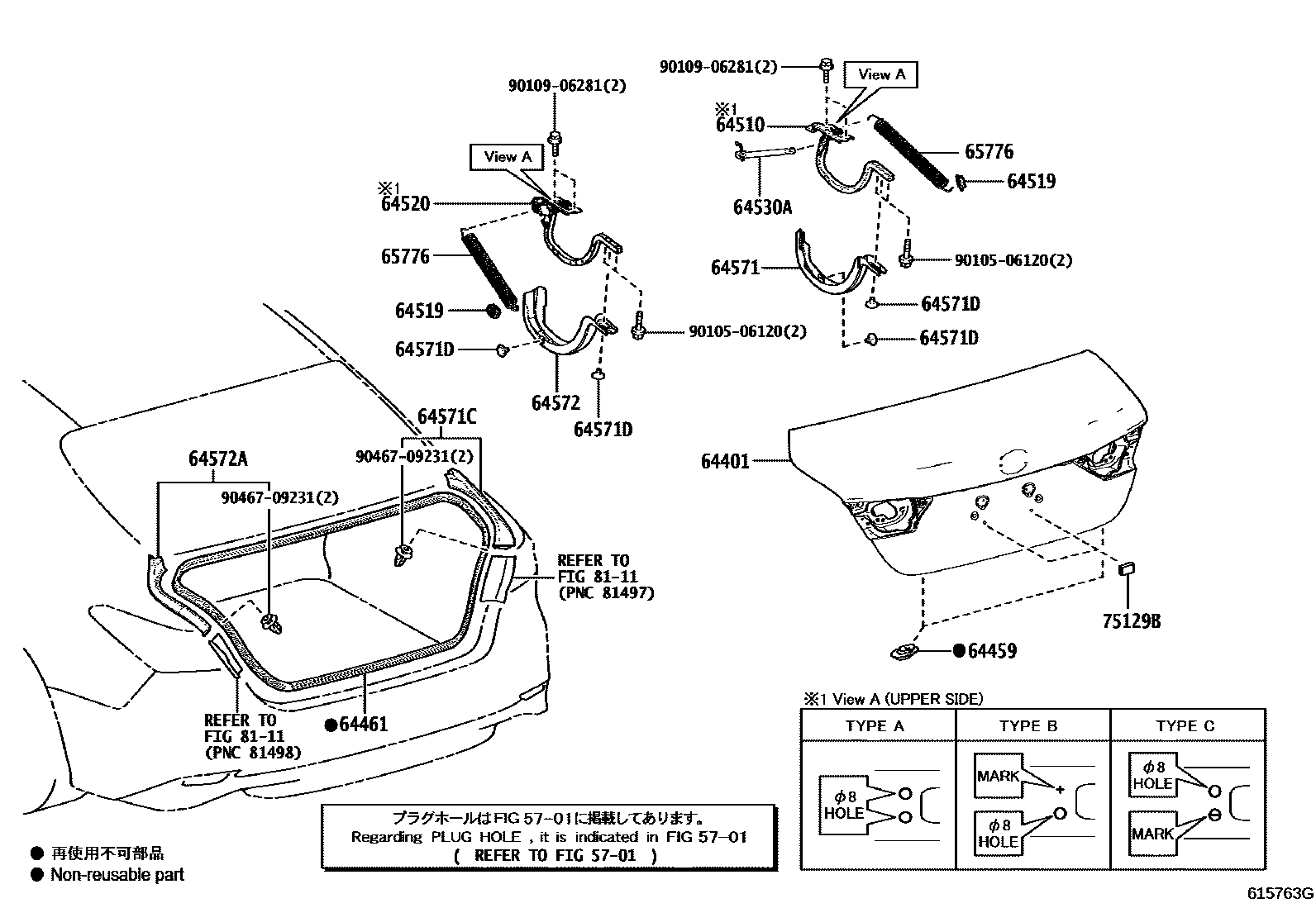

Toyota CAMRY/HYBRID — LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR PANE0002 1LUGGAGE DOOR LOCK

5701

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-33740iAXVA70..LE;AXVA70,MXVA71..D¥36,900202102

main64401-33740iASV70..D;ASV70,AXVA70..LE¥36,900201712-202101

main64401-33760iAXVH7#..D;AXVA70,GSV70..GLE,LIMD¥36,900202102

TW 2.0 G

main64401-33760iAXVH7#;ASV70..N;ASV70,AXVA70,GSV70..GLE,LIMD¥36,900201709-202101

main64401-33770iAXVH70..D¥36,900202102

ATARA SL

main64401-33770iAXVH70..D¥36,900202102

ATARA S

main64401-33770iASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE¥36,900201712-202101

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-33030iAXVA70,AXVH7#,GSV70,MXVA71¥330202102

main64459-33030iASV70,AXVA70,AXVH7#,GSV70¥330201709-202101

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-33120iASV70,AXVA70,AXVH7#,GSV70¥3,890201709-202101

main64461-33120iAXVA70,AXVH7#,GSV70,MXVA71¥3,890202102

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-33181iAXVA70,AXVH7#,GSV70,MXVA71¥3,370202102

TYPE A:REFER ILLUST.

main64510-33181iASV70,AXVA70,AXVH7#,GSV70¥3,370201709-202101

TYPE A:REFER ILLUST.

main64510-33191iAXVA70,AXVH7#,GSV70,MXVA71¥3,370202102

TYPE B:REFER ILLUST.

main64510-33191iASV70,AXVA70,AXVH7#,GSV70¥3,370201709-202101

TYPE B:REFER ILLUST.

main64510-33201iASV70,AXVA70,AXVH7#,GSV70¥3,370201709-202101

TYPE C:REFER ILLUST.

main64510-33201iAXVA70,AXVH7#,GSV70,MXVA71¥3,370202102

TYPE C:REFER ILLUST.

64519BUSH, LUGGAGE DOOR HINGE SUPPORT

main69358-24010iASV70,AXVA70,AXVH7#,GSV70¥190201709-202101

main69358-24010iAXVA70,AXVH7#,GSV70,MXVA71¥190202102

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-33071iASV70,AXVA70,AXVH7#,GSV70¥3,180201709-202101

TYPE A:REFER ILLUST.

main64520-33071iAXVA70,AXVH7#,GSV70,MXVA71¥3,180202102

TYPE A:REFER ILLUST.

main64520-33081iASV70,AXVA70,AXVH7#,GSV70¥3,180201709-202101

TYPE B:REFER ILLUST.

main64520-33081iAXVA70,AXVH7#,GSV70,MXVA71¥3,180202102

TYPE B:REFER ILLUST.

main64520-33091iAXVA70,AXVH7#,GSV70,MXVA71¥3,180202102

TYPE C:REFER ILLUST.

main64520-33091iASV70,AXVA70,AXVH7#,GSV70¥3,180201709-202101

TYPE C:REFER ILLUST.

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-06020iASV70,AXVA70,AXVH7#,GSV70¥5,100201709-202101

main64530-06020iAXVA70,AXVH7#,GSV70,MXVA71¥5,100202102

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-33070iASV70,AXVA70,AXVH7#,GSV70¥1,850201709-202101

main64571-33070iAXVA70,AXVH7#,GSV70,MXVA71¥1,850202102

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-33080iASV70,AXVA70,AXVH7#,GSV70¥1,180201709-202101

main64571-33080iAXVA70,AXVH7#,GSV70,MXVA71¥1,180202102

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-07215iASV70,AXVA70,AXVH7#,GSV70¥80201709-202101

main90467-07215iAXVA70,AXVH7#,GSV70,MXVA71¥80202102

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-33050iAXVA70,AXVH7#,GSV70,MXVA71¥1,980202102

main64572-33050iASV70,AXVA70,AXVH7#,GSV70¥1,980201709-202101

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-33060iASV70,AXVA70,AXVH7#,GSV70¥1,180201709-202101

main64572-33060iAXVA70,AXVH7#,GSV70,MXVA71¥1,180202102

65776SPRING, BACK DOOR STAY

main65776-33011iASV70,AXVA70,AXVH7#,GSV70¥1,610201709-202101

main65776-33011iAXVA70,AXVH7#,GSV70,MXVA71¥1,610202102

75129BCUSHION, REAR LICENCE PLATE

main75129-13020iASV70,AXVA70,AXVH7#,GSV70¥80201709-202101

main75129-13020iAXVA70,AXVH7#,GSV70,MXVA71¥80202102

8111

9010506120

main90105-06120¥90

9010906281

main90109-06281¥60

9046709231

main90467-09231¥90

19 parts on this diagram · 2 diagrams in section
