Toyota CAMRY/HYBRID — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1HEATER CONTROL PANEL 0004 1HEATER CONTROL PANEL 0005 1AIR DUCT 0006 1AIR DUCT 0007 1AIR DUCT 0008 1AIR DUCT 0009 1AIR DUCT 0010 1AIR DUCT 0011 1SENSOR 0012 1SENSOR 0013 1SENSOR 0014 1SENSOR 0015 1SENSOR 0016 1SENSOR 0017 1SENSOR 0018 1SENSOR

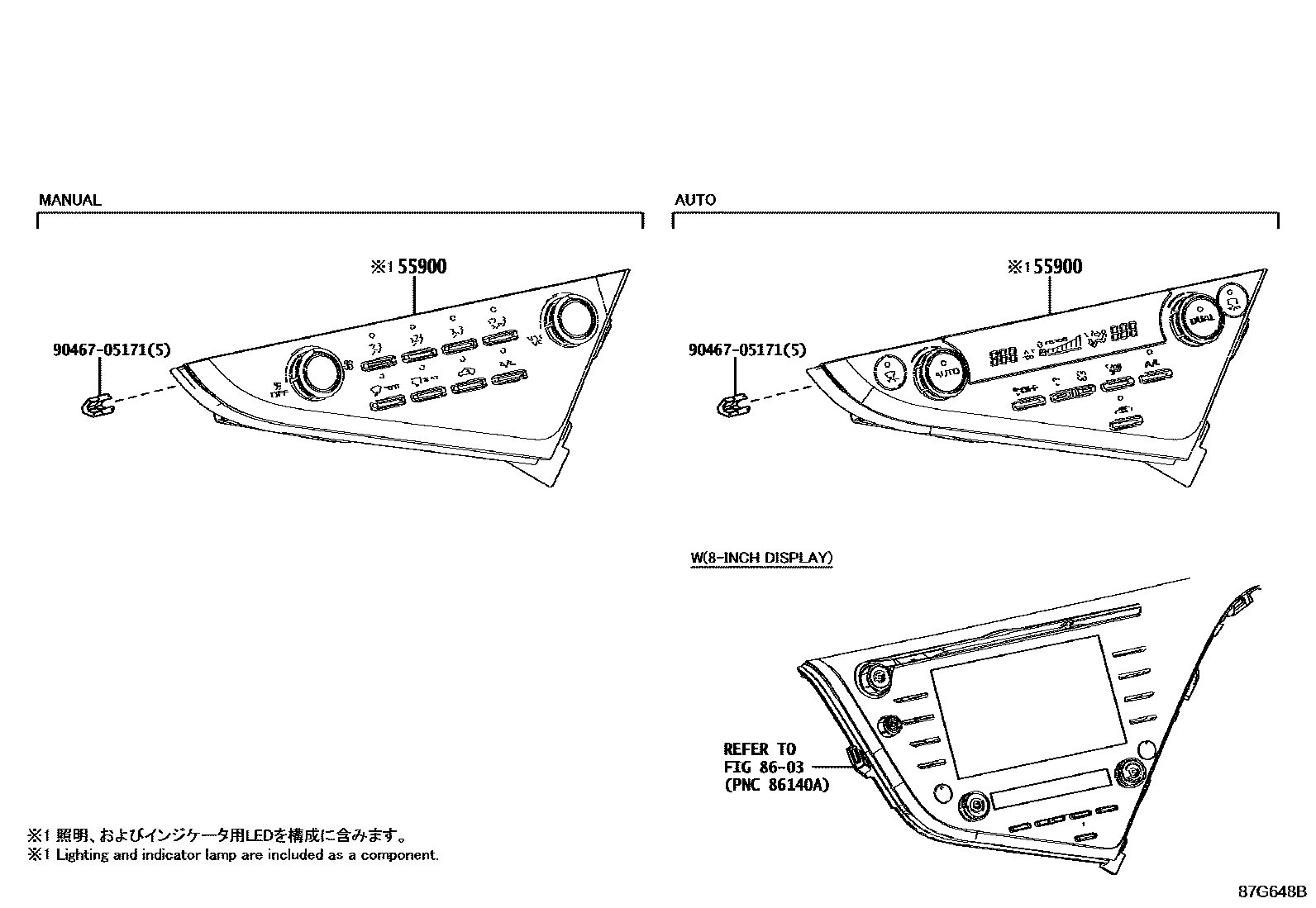

55900CONTROL ASSY, AIR CONDITIONER

main55900-33K70iAXVH70..D202102

main55900-33K70iAXVH7#..ARL201712-202101

ATARA S

main55900-33K70iAXVH7#..ARL201712-202101

ATARA SL

main55900-33K80iAXVH70..D202102

ATARA SL&AUDIO-9INCH & *DA & 9SPEAKAR & JBL

main55900-33K80iAXVH70..D202102

ATARA S&AUDIO-9INCH & *DA & 6SPEAKAR

main55900-33L00iASV70,AXVA70..LE201712-202101

main55900-33L00iAXVA70..LE202102

main55900-33L20iASV70,AXVH71..TAIW,TAKR201808-202101

HV Q PACKAGE(TAIWAN SPEC)

main55900-33L20iAXVH71,MXVA71..TAIW,TAKR202102

LIMITED&EXCLUSIVE PACKAGE

main55900-33L30iASV70..GLE¥32,800201712-202101

NAVI PACKAGE

main55900-33L30iASV70..GLE¥32,800201712-202101

CONVENIENT PACKAGE

main55900-33L30iAXVA70..GLE,SE;AXVH71,GSV70..GCC¥32,800202102

main55900-33L80iASV70..D..ARL201712-202101

main55900-33L80iAXVA70..ARL202102

8603

9046705171

main90467-05171¥60

3 parts on this diagram · 18 diagrams in section
