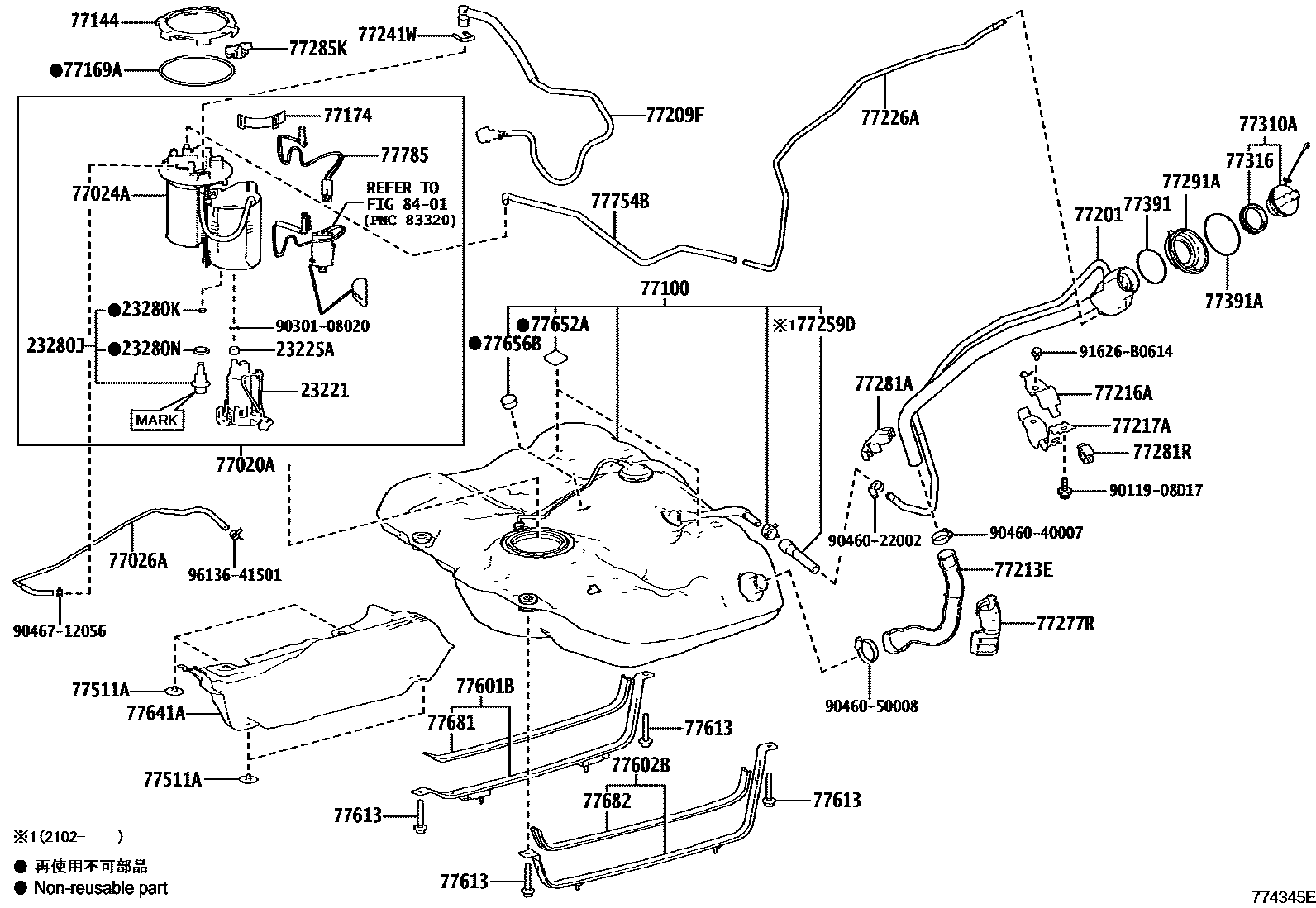

Toyota CAMRY/HYBRID — FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
MARK 77020-33510
KOREA SPEC
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
MARK 77020-33511
77024APLATE SUB-ASSY, FUEL SUCTION
MARK 77020-33510
MARK 77020-33511
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
(L)
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77259DHOSE, FUEL, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401
9011908D17
9030108020
9046022002
9046040007
9046050008
9046712056
91626B0614
9613641501
50 parts on this diagram · 13 diagrams in section
