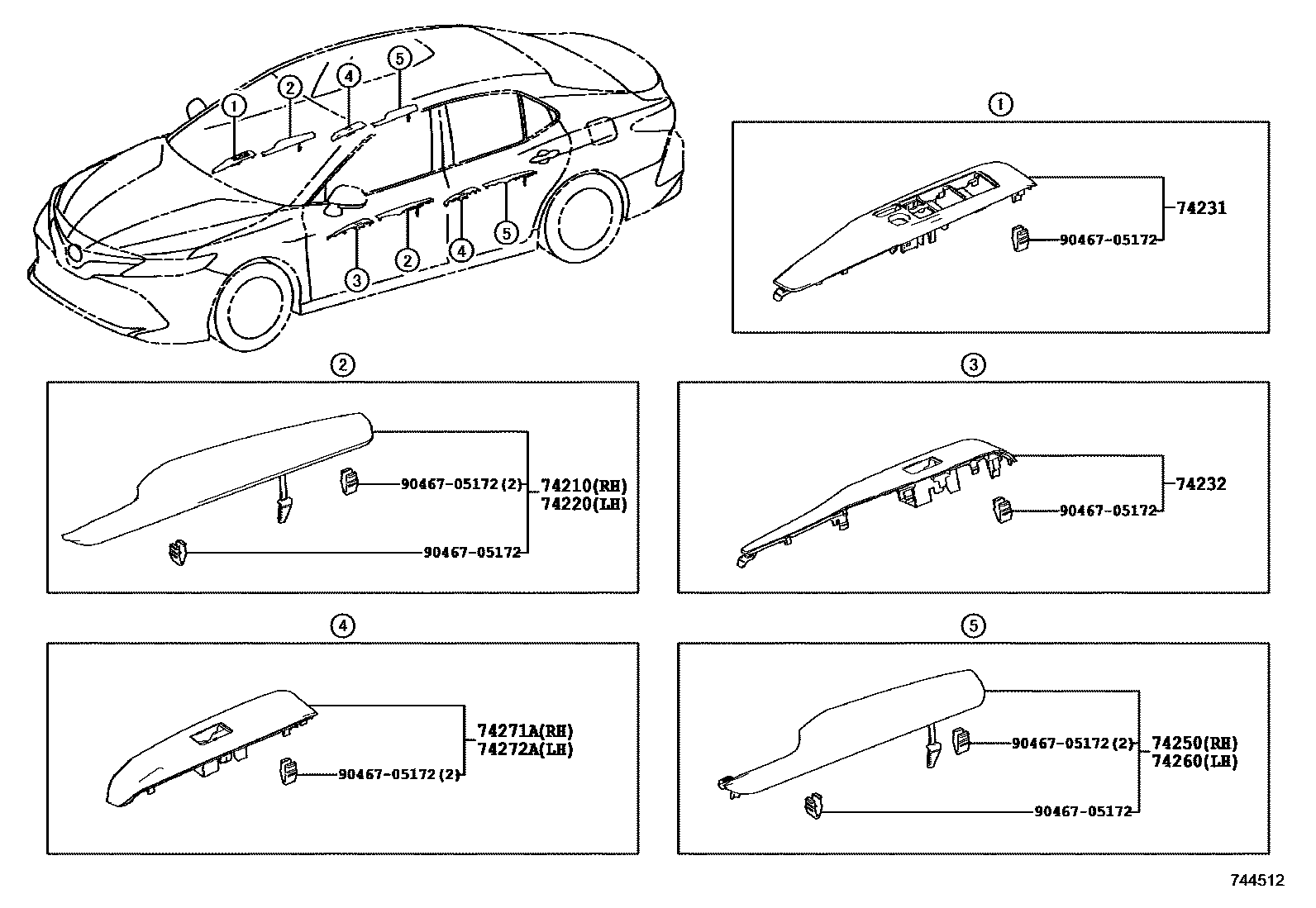

Toyota CAMRY/HYBRID — ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-33140-A0iASV70,AXVA70..GLE,LE;ASV70,AXVH71..D..(GCC,TAIW)201712-202101

FROMAGE,TRIM4#

main74210-33140-B1iAXVA70,AXVH71..GCC201709-202101

GRAY,TRIM1#

main74210-33140-C0iASV70..D,N;ASV70..GCC;AXVA70,AXVH7#..ARL,GCC201709-202101

BLACK,TRIM2#

main74210-33160-A1iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

FROMAGE/IVORY,TRIM4#

main74210-33160-A2iGSV70..LIMD202102-202208

FROMAGE/DK.GRAY,TRIM4#

main74210-33160-A2iAXVH71..GCC;AXVA70..GLE202102-202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM4#

main74210-33160-A2iAXVH71..GCC;AXVA70..GLE202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM40

main74210-33160-A2iAXVH71..GCC;AXVA70..GLE202208

FROMAGE/DK.GRAY,TRIM40

main74210-33160-B1iGSV70..GCC201712-202101

GRAY/GRAY,TRIM1#

main74210-33160-B2iAXVH71..GCC;AXVA70..GLE202102

SEAT COVER MATERIAL-LEATHER,GRAY/DK.GRAY,TRIM1#

main74210-33160-B2iAXVH71..GCC;AXVA70..GLE202102

GRAY/DK.GRAY,TRIM1#

main74210-33160-C1iAXVH70..V;GSV70..SE201712-202101

BLACK/GRAY,TRIM2#

main74210-33160-C1iMXVA71202102

BLACK/GRAY,TRIM20

main74210-33160-C2iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

BLACK/CHOCOLATE BROWN,TRIM2#

main74210-33160-C3iGSV70..LIMD;AXVH71..TAKR202102

BLACK/DK.GRAY,TRIM20

main74210-33160-C3iGSV70..LIMD;AXVH71..TAKR202102

BLACK/DK.GRAY,TRIM2#

main74210-33160-C3iGSV70..LIMD;AXVH71..TAKR202102

SEAT COVER MATERIAL-LEATHER,BLACK/DK.GRAY,TRIM2#

main74210-33160-D1iAXVH70..V;GSV70..SE201712-202101

SENSUAL RED/GRAY,TRIM3#

main74210-33160-E1iAXVH71..GCC;AXVA70..GLE202208

SEAT COVER MATERIAL-LEATHER,OCHER/DARK GRAY,TRIM41

main74210-33160-E1iGSV70..LIMD202208

OCHER/DARK GRAY,TRIM41

74220ARMREST ASSY, FRONT, LH

main74220-33140-A0iAXVH71..GCC;AXVA70..GLE,LE201712-202101

FROMAGE,TRIM4#

main74220-33140-B1iASV70..GCC;ASV70..(D,N)..ARL;AXVA70,AXVH71..ARL,GCC201709-202101

GRAY,TRIM1#

main74220-33140-C0iAXVA70..GLE,LE;AXVA70,AXVH7#..D..(ARL,GCC)201709-202101

BLACK,TRIM2#

main74220-33160-A1iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

FROMAGE/IVORY,TRIM4#

main74220-33160-A2iGSV70..LIMD202208

FROMAGE/DK.GRAY,TRIM40

main74220-33160-A2iGSV70..LIMD202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM40

main74220-33160-A2iGSV70..LIMD202102-202208

FROMAGE/DK.GRAY,TRIM4#

main74220-33160-A2iGSV70..LIMD202102-202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM4#

main74220-33160-B1iGSV70..GCC201712-202101

GRAY/GRAY,TRIM1#

main74220-33160-B2iGSV70202102

GRAY/DK.GRAY,TRIM1#

main74220-33160-B2iGSV70202102

SEAT COVER MATERIAL-LEATHER,GRAY/DK.GRAY,TRIM1#

main74220-33160-C1iGSV70..SE;ASV70,GSV70..V201712-202101

BLACK/GRAY,TRIM2#

main74220-33160-C1iMXVA71202102

BLACK/GRAY,TRIM20

main74220-33160-C2iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

BLACK/CHOCOLATE BROWN,TRIM2#

main74220-33160-C3iMXVA71202102

BLACK/DK.GRAY,TRIM20

main74220-33160-C3iMXVA71202102

SEAT COVER MATERIAL-LEATHER,BLACK/DK.GRAY,TRIM2#

main74220-33160-C3iAXVA70..GLE;AXVH7#..D..(ARL,GCC)202102

BLACK/DK.GRAY,TRIM2#

main74220-33160-D1iAXVH70..V;GSV70..SE201712-202101

SENSUAL RED/GRAY,TRIM3#

main74220-33160-E1iGSV70..LIMD202208

OCHER/DARK GRAY,TRIM41

main74220-33160-E1iGSV70..LIMD202208

SEAT COVER MATERIAL-LEATHER,OCHER/DARK GRAY,TRIM41

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-33540iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main74231-33541iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main74231-33601iAXVH70..D¥1,870202102

ATARA S

main74231-33640iGSV70..V;ASV70,AXVH7#..ARL201709-202101

main74231-33641iAXVA70,AXVH70..D202102

main74231-33650iGSV70..N201712-202101

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-33440iASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE201712-202101

main74232-33441iAXVH71..GCC202102

GLE

main74232-33441iAXVH71,MXVA71..TAIW,TAKR;AXVA70,GSV70..GLE,LIMD,SE202102

LIMITED

main74232-33450iAXVH71..GCC;ASV70,AXVA70..LE201712-202101

main74232-33451iAXVA70..LE;AXVH71..GCC202102

main74232-33460iASV70,AXVH7#,GSV70..ARL¥2,400201709-202101

main74232-33461iAXVA70,AXVH70..ARL¥2,010202102

74250ARMREST ASSY, REAR RH

main74250-33160-A0iAXVH71..GCC;AXVA70..GLE,LE201712-202101

FROMAGE,TRIM4#

main74250-33160-B1iAXVA70,AXVH71..GCC201709-202101

GRAY,TRIM1#

main74250-33160-C0iASV70..D,N;ASV70..GCC;AXVA70,AXVH7#..ARL,GCC201709-202101

BLACK,TRIM2#

main74250-33180-A1iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

FFROMAGE/IVORY,TRIM4#

main74250-33180-A2iGSV70..LIMD202208

FROMAGE/DK.GRAY,TRIM40

main74250-33180-A2iAXVH71..GCC;AXVA70..GLE202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM40

main74250-33180-A2iGSV70..LIMD202102-202208

FROMAGE/DK.GRAY,TRIM4#

main74250-33180-A2iGSV70..LIMD202102-202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM4#

main74250-33180-B1iGSV70..GCC201712-202101

GRAY/GRAY,TRIM1#

main74250-33180-B2iGSV70202102

SEAT COVER MATERIAL-LEATHER,GRAY/DK.GRAY,TRIM1#

main74250-33180-B2iAXVH71..GCC;AXVA70..GLE202102

GRAY/DK.GRAY,TRIM1#

main74250-33180-C1iMXVA71202102

BLACK/GRAY,TRIM20

main74250-33180-C1iAXVH70..V;GSV70..SE201712-202101

BLACK/GRAY,TRIM2#

main74250-33180-C2iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

BLACK/CHOCOLATE BROWN,TRIM2#

main74250-33180-C3iAXVA70..GLE;AXVH7#..D..(ARL,GCC)202102

BLACK/DK.GRAY,TRIM2#

main74250-33180-C3iGSV70..LIMD;AXVH71..TAKR202102

BLACK/DK.GRAY,TRIM20

main74250-33180-C3iGSV70..LIMD;AXVH71..TAKR202102

SEAT COVER MATERIAL-LEATHER,BLACK/DK.GRAY,TRIM2#

main74250-33180-D1iAXVH70..V;GSV70..SE201712-202101

SENSUAL RED/GRAY,TRIM3#

main74250-33180-E1iAXVH71..GCC;AXVA70..GLE202208

OCHER/DARK GRAY,TRIM41

main74250-33180-E1iAXVH71..GCC;AXVA70..GLE202208

SEAT COVER MATERIAL-LEATHER,OCHER/DARK GRAY,TRIM41

74260ARMREST ASSY, REAR LH

main74260-33170-A0iAXVH71..GCC;AXVA70..GLE,LE201712-202101

FROMAGE,TRIM4#

main74260-33170-B1iASV70..GCC;ASV70..(D,N)..ARL;AXVA70,AXVH71..ARL,GCC201709-202101

GRAY,TRIM1#

main74260-33170-C0iASV70..D,N;ASV70..GCC;AXVA70,AXVH7#..ARL,GCC201709-202101

BLACK,TRIM2#

main74260-33190-A1iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

FROMAGE/IVORY,TRIM4#

main74260-33190-A2iGSV70..LIMD202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM40

main74260-33190-A2iAXVH71..GCC;AXVA70..GLE202208

FROMAGE/DK.GRAY,TRIM40

main74260-33190-A2iGSV70..LIMD202102-202208

FROMAGE/DK.GRAY,TRIM4#

main74260-33190-A2iGSV70..LIMD202102-202208

SEAT COVER MATERIAL-LEATHER,FROMAGE/DK.GRAY,TRIM4#

main74260-33190-B1iGSV70..GCC201712-202101

GRAY/GRAY,TRIM1#

main74260-33190-B2iAXVH71..GCC;AXVA70..GLE202102

SEAT COVER MATERIAL-LEATHER,GRAY/DK.GRAY,TRIM1#

main74260-33190-B2iAXVH71..GCC;AXVA70..GLE202102

GRAY/DK.GRAY,TRIM1#

main74260-33190-C1iAXVH70..V;GSV70..SE201712-202101

BLACK/GRAY,TRIM2#

main74260-33190-C1iMXVA71202102

BLACK/GRAY,TRIM20

main74260-33190-C2iGSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR)201712-202101

BLACK/CHOCOLATE BROWN,TRIM2#

main74260-33190-C3iMXVA71202102

BLACK/DK.GRAY,TRIM20

main74260-33190-C3iMXVA71202102

SEAT COVER MATERIAL-LEATHER,BLACK/DK.GRAY,TRIM2#

main74260-33190-C3iAXVA70..GLE;AXVH7#..D..(ARL,GCC)202102

BLACK/DK.GRAY,TRIM2#

main74260-33190-D1iGSV70..SE;ASV70,GSV70..V201712-202101

SENSUAL RED/GRAY,TRIM3#

main74260-33190-E1iGSV70..LIMD202208

OCHER/DARK GRAY,TRIM41

main74260-33190-E1iGSV70..LIMD202208

SEAT COVER MATERIAL-LEATHER,OCHER/DARK GRAY,TRIM41

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-33380iASV70,AXVA70,AXVH7#,GSV70¥2,100201709-202101

main74271-33381iAXVA70,AXVH7#,GSV70,MXVA71¥1,590202102

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-33380iASV70,AXVA70,AXVH7#,GSV70¥2,100201709-202101

main74272-33381iAXVA70,AXVH7#,GSV70,MXVA71¥1,590202102

9046705172

main90467-05172¥60

9 parts on this diagram · 3 diagrams in section
