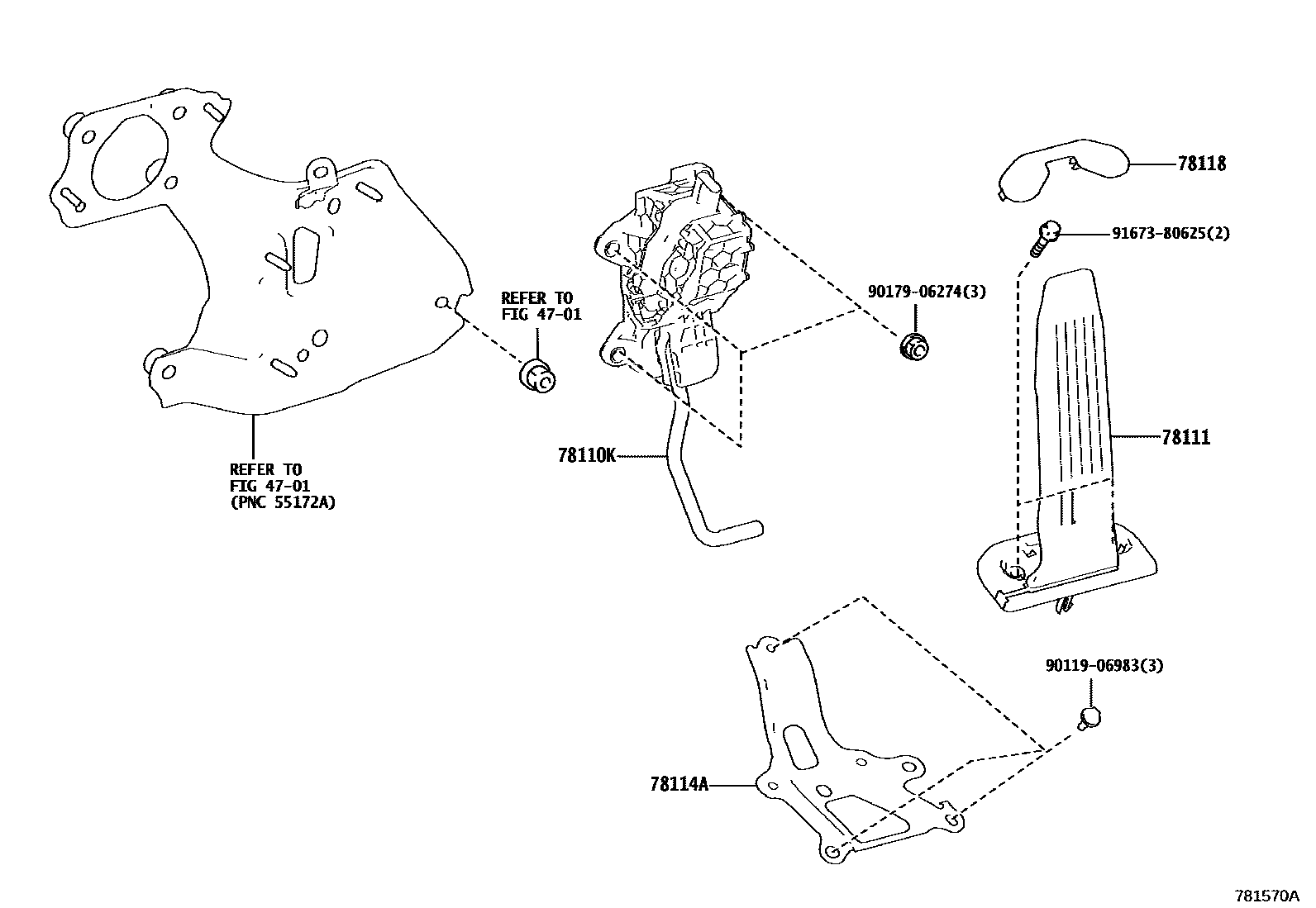

Toyota CAMRY/HYBRID — ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33130iASV70,AXVH71..LHD¥10,100201712-202010

sub78110-33131

main78110-33131iAXVH71,MXVA71202011-202101

main78110-33140iAXVA70,GSV70..GCC¥10,700201712-202010

sub78110-33141

main78110-33141iAXVA70,GSV70..GCC202011-202101

main78110-33150iASV70,AXVH7#..ARL¥10,100201709-202010

sub78110-33151¥8,400

main78110-33151iASV70,AXVH70..ARL¥8,400202011-202101

main78110-33160iGSV70..ARL201712-202010

sub78110-33161

main78110-33161iGSV70..ARL202011-202101

78111PEDAL, ACCELERATOR

main78101-33060iAXVA70,AXVH7#,GSV70,MXVA71¥1,650201709-202202

sub78101-33061¥1,490

main78101-33061iAXVA70,AXVH7#,GSV70,MXVA71¥1,490202203

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-33020iASV70,AXVH7#,GSV70..ARL¥810201709-202101

78118PAD, ACCELERATOR PEDAL

main78117-33020iASV70,AXVA70,AXVH7#,GSV70¥260201709-202101

9011906983

main90119-06983¥60

9017906274

main90179-06274¥70

9167380625

main91673-80625¥80

8 parts on this diagram · 2 diagrams in section
