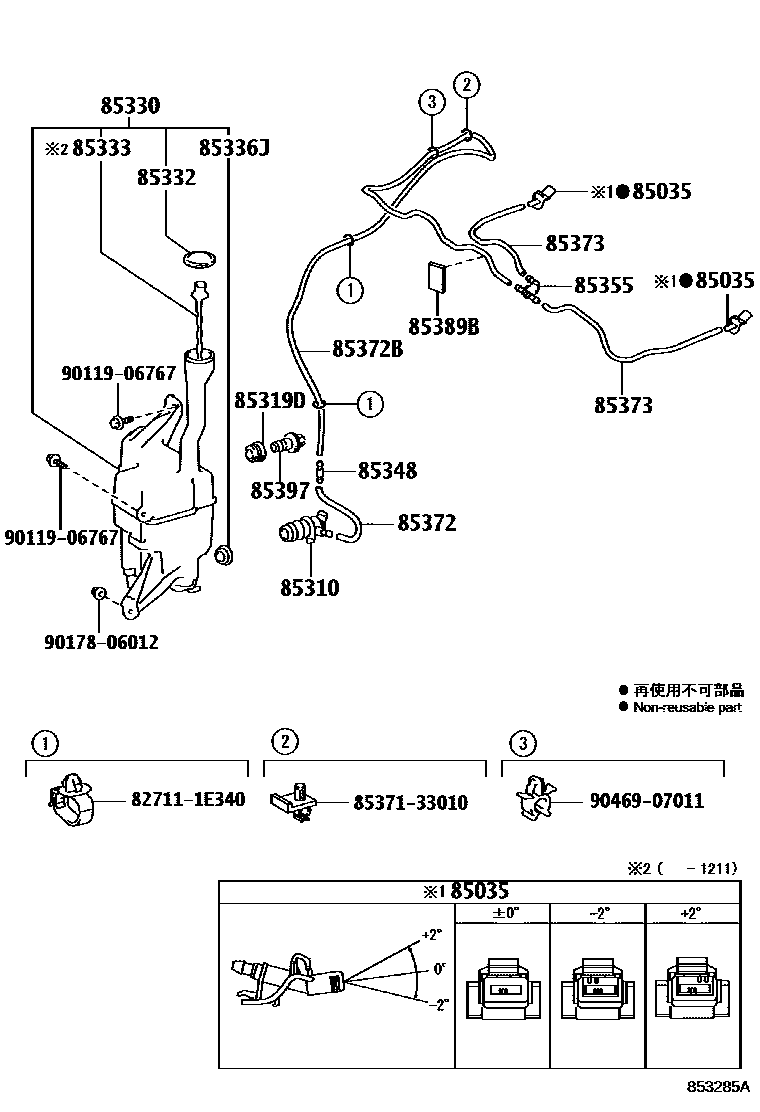

Toyota CAMRY/HYBRID — WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0003 1W(HEADLAMP CLEANER) 0005 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-30150iASV5#,GSV50..RUP201409

ANGLE +2

main85381-30150iASV50,AVV50,GSV50..JPP201409-201704

ANGLE +2

main85381-30150iACV51,ASV50,GSV50..RUP201108-201411

ANGLE +2,ANGLE +2

main85381-30150iASV50,AVV50,GSV50..JPP201108-201409

ANGLE +2,ANGLE +2

main85381-30160iASV50,AVV50,GSV50..JPP201108-201409

ANGLE -2,ANGLE -2

main85381-30160iACV51,ASV50,GSV50..RUP201108-201411

ANGLE -2,ANGLE -2

main85381-30160iASV50,AVV50,GSV50..JPP201409-201704

ANGLE -2

main85381-30160iASV5#,GSV50..RUP201409

ANGLE -2

main85381-33080iASV50,AVV50,GSV50..JPP201409-201704

ANGLE 0

main85381-33080iASV50,AVV50,GSV50..JPP201108-201409

ANGLE 0

main85381-33080iASV5#,GSV50..RUP201409

ANGLE 0

main85381-33080iACV51,ASV50,GSV50..RUP201108-201411

ANGLE 0

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iASV50..LHD..EUR¥0201108-201409

sub85330-0D100¥7,500

main85330-21010iASV50..LHD..EUR¥0201409-201704

sub85330-0D100¥7,500

main85330-47010iASV50..LHD..EUR¥0201210-201409

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main85330-47010iASV50..RUS;ASV50..RHD;AVV50,GSV50¥0201207-201209

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main85330-47010iASV50..RUS;ASV50..RHD;AVV50,GSV50¥0201209-201210

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main85330-47010iACV51¥0201207-201411

main85330-47010iASV50,GSV50..RUP¥0201210-201411

main85330-47010iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP¥0201409-201704

WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)

main85330-47010iASV5#,GSV50..RUP¥0201409

main85330-60190iASV50..LHD..EUR¥5,500201108-201206

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

85319DPACKING, FRONT WASHER

main85319-33230iACV51201211-201411

main85319-33230iASV50,AVV50,GSV50..JPP201409-201704

main85319-33230iASV5#,GSV50..RUP201409

main85319-33230iASV50,GSV50..RUP201210-201411

main85319-33230iASV50,AVV50,GSV50..JPP201209-201411

85330JAR ASSY, WINDSHIELD WASHER

main85315-33440iACV51201108-201211

main85315-33440iASV50..LHD..EUR201108-201209

main85315-33490iACV51201211-201411

main85315-33490iASV50..LHD..EUR201409-201704

main85315-33490iASV51201409

main85315-33490iASV50..LHD..EUR201209-201411

main85355-33130iASV50..LHD..EUR201108-201210

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER),W/O PNC=85397

main85355-33130iASV50..RUS;ASV50..RHD;AVV50,GSV50201108-201210

W/O PNC=85397

main85355-33140iASV50..RUS;ASV50..RHD;AVV50,GSV50201409-201704

WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)

sub85355-33141

main85355-33141iASV50,GSV50..RUP201704

main85355-33180iASV50,GSV50..RUP201210-201411

W/ PNC=85397

main85355-33180iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP201209-201411

W/ PNC=85397

85332CAP, WINDSHIELD WASHER JAR

main85316-33320iASV50..LHD..EUR201209-201210

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main85316-33320iASV50..RUS;ASV50..RHD;AVV50,GSV50201210-201408

main85316-33320iASV50..RUS;ASV50..RHD;AVV50,GSV50201108-201209

main85316-33320iACV51;ASV50..LHD..EUR201108-201408

main85316-33490iACV51,ASV50,GSV50..RUP201408-201411

main85316-33490iASV50,AVV50,GSV50..JPP201408-201409

main85316-33490iASV50,AVV50,GSV50201409-201704

main85316-33490iASV51201409

main85316-33490iASV50,GSV50..RUP201704

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020iASV50..LHD..EUR¥0201108-201209

main85312-21020iASV50..RUS;ASV50..RHD;AVV50,GSV50¥0201108-201210

main85312-21020iACV51¥0201108-201211

85336JPROTECTOR, WASHER JAR

main85336-60300iASV50..RUS;ASV50..RHD;AVV50,GSV50¥0201108-201209

main85336-60300iASV50..RUS;ASV50..RHD;AVV50,GSV50¥0201209-201210

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main85336-60300iASV50..LHD..EUR¥0201108-201409

main85336-60300iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP¥0201210-201409

main85336-60300iACV51¥0201108-201411

main85336-60300iASV50,GSV50..RUP¥0201210-201411

main85336-60300iASV50,AVV50,GSV50¥0201409-201704

main85336-60300iASV51¥0201409

main85336-60300iASV50,GSV50..RUP¥0201704

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iASV50..LHD..EUR¥120201108-201409

main85375-10260iASV50..LHD..EUR¥120201409-201704

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iASV50,AVV50,GSV50..JPP¥680201108-201409

main85321-28020iACV51,ASV50,GSV50..RUP¥680201108-201411

main85321-28020iASV50,AVV50,GSV50..JPP¥680201409-201704

main85321-28020iASV5#,GSV50..RUP¥680201409

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP¥500201108-201409

L=2350

main90099-33803iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP¥500201108-201409

L=2350,WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main90099-33803iACV51,ASV50,GSV50..RUP¥500201108-201411

L=2350

main90099-33803iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP¥500201409-201704

L=2350

main90099-33803iASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP¥500201409-201704

L=2350,WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)

main90099-33803iASV5#,GSV50..RUP¥500201409

L=2350

main90099-62062iASV50..LHD..EUR201409-201704

L=50

main90099-62062iASV50..LHD..EUR201108-201409

L=50

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iASV50..LHD..EUR¥0201108-201409

L=3300(*H,L=2240)

main90099-33589iASV50..LHD..EUR¥0201409-201704

L=3300(*H,L=2240)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62061iASV50..LHD..EUR201108-201409

L=465,WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)

main90099-62061iACV51,ASV50,GSV50..RUP201108-201411

L=465

main90099-62061iASV50,AVV50,GSV50..JPP201409-201704

L=465

main90099-62061iASV50..LHD..EUR201409-201704

L=465,WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)

main90099-62061iASV5#,GSV50..RUP201409

L=465

main90099-62061iASV50,AVV50,GSV50..JPP201108-201409

L=465

85389BPROTECTOR, WINDSHIELD WASHER

main85389-33380iASV50..LHD..EUR201311-201409

main85389-33380iASV50..LHD..EUR201409-201704

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iASV50,GSV50..RUP¥2,590201210-201411

main85397-30400iACV51¥2,590201211-201411

main85397-30400iASV50,AVV50,GSV50..JPP¥2,590201409-201704

main85397-30400iASV50,AVV50,GSV50..JPP¥2,590201209-201411

main85397-30400iASV5#,GSV50..RUP¥2,590201409

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340¥100

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010¥150

9011906767

main90119-06767¥60

9017806012

main90178-06012¥80

9046907011

main90469-07011¥110

19 parts on this diagram · 3 diagrams in section
