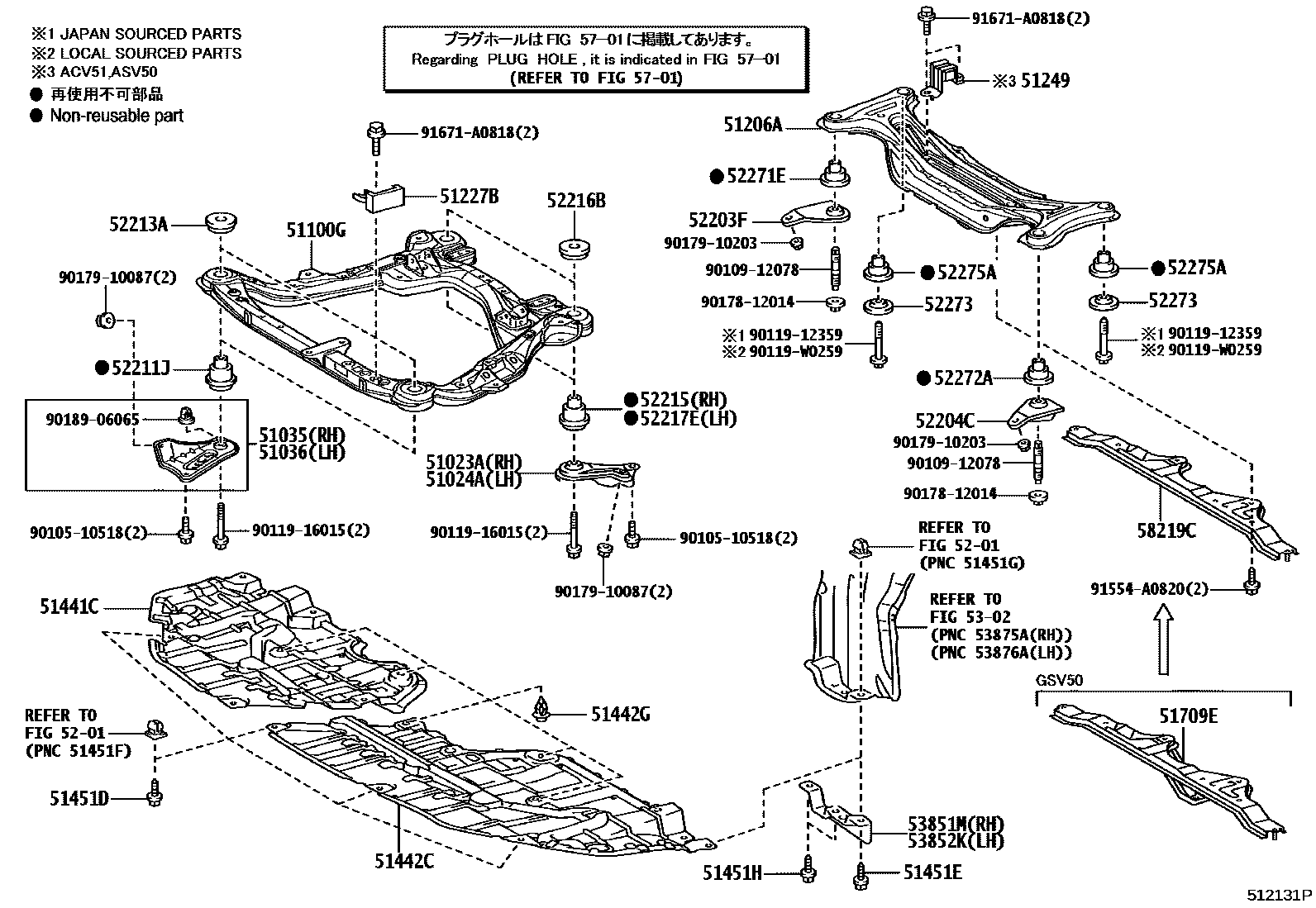

Toyota CAMRY/HYBRID — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1 0004 1 0006 1

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-33060iACV51,ASV50,AVV50,GSV50¥3,270201108-201411

main51023-33060iASV5#,AVV50,GSV50¥3,270201409-201803

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-33070iACV51,ASV50,AVV50,GSV50¥3,270201108-201411

main51024-33070iASV5#,AVV50,GSV50¥3,270201409-201803

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33030iASV5#,GSV50¥4,060201409-201803

main51035-33030iACV51,ASV50,GSV50¥4,060201108-201411

main51035-33050iAVV50¥4,250201409-201704

main51035-33050iAVV50¥4,250201108-201409

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33050iASV5#,AVV50,GSV50¥4,250201409-201803

main51036-33050iACV51,ASV50,AVV50,GSV50¥4,250201108-201411

51100GFRAME ASSY, FRONT

main51100-33070iACV51,ASV50,GSV50¥86,900201108-201212

sub51100-33073¥86,900

main51100-33071iACV51,ASV50,GSV50201301-201308

sub51100-33073¥86,900

main51100-33072iASV5#,AVV50,GSV50¥72,400201409-201801

sub51100-33111¥72,400

main51100-33072iACV51,ASV50,AVV50,GSV50¥72,400201310-201411

sub51100-33111¥72,400

main51100-33073iACV51,ASV50,GSV50¥86,900201308-201310

sub51100-33072¥72,400

sub90119-08D06¥110

main51100-33100iAVV50¥79,300201108-201212

sub51100-33101¥79,300

main51100-33101iAVV50¥79,300201301-201308

sub51100-33103¥79,300

main51100-33103iAVV50¥79,300201308-201310

sub51100-33102¥79,300

sub90119-08D06¥110

main51100-33111iASV5#,GSV50¥72,400201801-201803

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33100iACV51,ASV50,AVV50,GSV50¥38,100201108-201411

main51206-33100iASV5#,AVV50,GSV50¥38,100201409-201803

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33110iACV51,ASV50,AVV50,GSV50¥4,980201108-201411

main51227-33110iASV5#,AVV50,GSV50¥4,980201409-201803

51249DAMPER, REAR SUSPENSION MEMBER

main51249-33010iACV51,ASV50¥5,400201108-201411

main51249-33010iASV5#¥5,400201409-201803

51441CCOVER, ENGINE UNDER, RH

main51441-33140iACV51,ASV50,GSV50201108-201411

main51441-33150iAVV50¥5,100201108-201409

main51441-33180iASV5#,GSV50201409-201803

main51441-33190iAVV50¥4,180201409-201704

51442CCOVER, ENGINE UNDER, LH

main51442-33140iACV51,ASV50,GSV50201108-201411

main51442-33150iAVV50¥5,100201108-201409

main51442-33180iASV5#,GSV50201409-201803

main51442-33190iAVV50¥4,880201409-201704

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07214iACV51,ASV50,AVV50,GSV50¥70201108-201308

main90467-07220iACV51,ASV50,AVV50,GSV50¥80201309-201411

main90467-07220iASV5#,AVV50,GSV50¥80201409-201803

51451DSCREW, NO.1

main90159-60477iACV51,ASV50,GSV50¥70201108-201411

main90159-60477iAVV50¥70201108-201409

main90159-60477iAVV50¥70201409-201704

main90159-60477iASV5#,GSV50¥70201409-201803

51451ESCREW, NO.2

main90159-60477iACV51,ASV50,AVV50,GSV50¥70201108-201411

main90159-60477iASV5#,AVV50,GSV50¥70201409-201803

51451HSCREW, NO.3

main90159-60477iACV51,ASV50,AVV50,GSV50¥70201108-201411

main90159-60477iASV5#,AVV50,GSV50¥70201409-201803

51709EBRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-33010iGSV50201108-201411

main51709-33010iGSV50201409-201803

5201

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-33030iACV51,ASV50,AVV50,GSV50¥3,150201108-201411

main52203-33030iASV5#,AVV50,GSV50¥3,150201409-201803

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-33030iACV51,ASV50,AVV50,GSV50¥3,150201108-201411

main52204-33030iASV5#,AVV50,GSV50¥3,150201409-201803

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33080iACV51,ASV50,AVV50,GSV50¥4,110201108-201411

main52211-33080iASV5#,AVV50,GSV50¥4,110201409-201803

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33080iACV51,ASV50,AVV50,GSV50¥1,750201108-201411

main52213-33080iASV5#,AVV50,GSV50¥1,750201409-201803

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33100iACV51,ASV50,AVV50,GSV50¥4,330201108-201411

main52215-33100iASV5#,AVV50,GSV50¥4,330201409-201803

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33080iACV51,ASV50,AVV50,GSV50¥1,750201108-201411

main52216-33080iASV5#,AVV50,GSV50¥1,750201409-201803

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33030iACV51,ASV50,AVV50,GSV50¥4,330201108-201411

main52217-33030iASV5#,AVV50,GSV50¥4,330201409-201803

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-33051iACV51,ASV50,AVV50,GSV50¥2,780201108-201411

main52271-33051iASV5#,AVV50,GSV50¥2,780201409-201803

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-33051iACV51,ASV50,AVV50,GSV50¥2,460201108-201411

main52272-33051iASV5#,AVV50,GSV50¥2,460201409-201803

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iACV51,ASV50,AVV50,GSV50¥690201108-201411

main52273-33010iASV5#,AVV50,GSV50¥690201409-201803

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33051iACV51,ASV50,AVV50,GSV50¥2,460201108-201411

main52275-33051iASV5#,AVV50,GSV50¥2,460201409-201803

5302

53851MPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-33040iACV51,ASV50,AVV50,GSV50¥1,550201108-201411

main53851-33040iASV5#,AVV50,GSV50¥1,550201409-201803

53852KPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-33040iACV51,ASV50,AVV50,GSV50¥1,550201108-201411

main53852-33040iASV5#,AVV50,GSV50¥1,550201409-201803

5701

58219CPLATE, CENTER FLOOR REAR END

main58219-33010iACV51,ASV50,AVV50¥3,540201108-201411

main58219-33010iASV5#,AVV50¥3,540201409-201803

9010510518

main90105-10518¥140

9010912078

main90109-12078¥330

9011912359

main90119-12359¥410

9011916015

main90119-16015¥600

90119W0259

main90119-W0259

9017812014

main90178-12014¥160

9017910087

main90179-10087¥110

9017910203

main90179-10203¥170

9018906065

main90189-06065¥80

91554A0820

main91554-A0820¥80

91671A0818

main91671-A0818¥80

43 parts on this diagram · 4 diagrams in section
