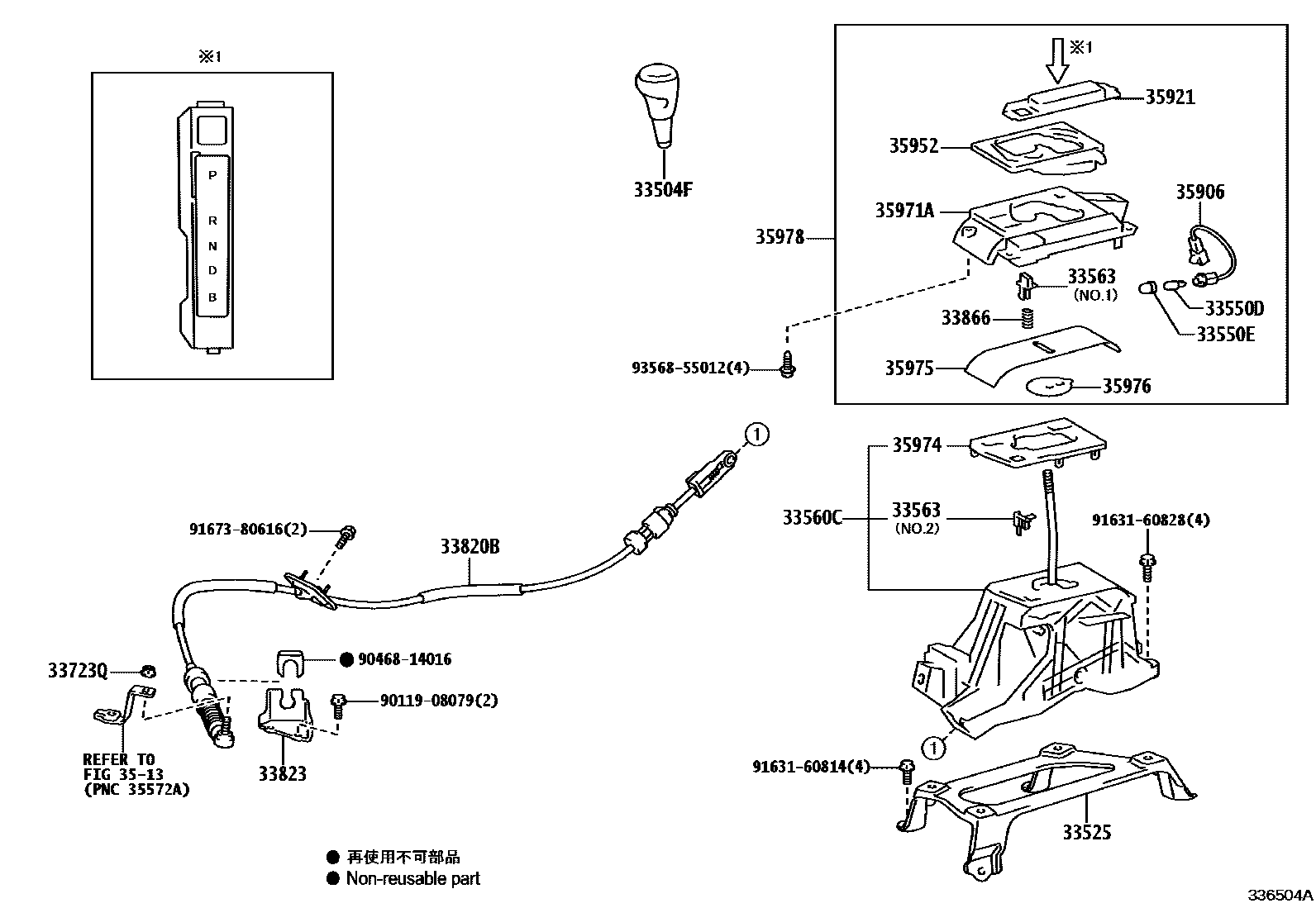

Toyota CAMRY/HYBRID — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM2#
BROWN & BLACK,TRIM0#,2#
BROWN & BLACK,TRIM0#,2#
TMMR,2GR,SFX,N5,SHELL & BLACK,TRIM20
SHELL & BLACK,TRIM2#
SHELL & BLACK,TRIM0#,2#
SHELL & BLACK,TRIM0#,2#,4#
SHELL & BLACK,TRIM0#,20
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 2.0W
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33560CLEVER ASSY, SHIFT, LOWER
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER)
WIRELESS DOOR LOCK-W(SMART ENTRY & *IM CODE COMPUTER)
33563BUTTON, SHIFT LOCK RELEASE
NO.2
NO.2
NO.1
NO.1
33723QNUT (FOR CONNECTING ROD SWIVEL)
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33866SPRING, SHIFT LOCK RELEASE
3513
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35952LENS, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
9011908079
9046814016
9163160814
9163160828
9167380616
9356855012
25 parts on this diagram · 9 diagrams in section
