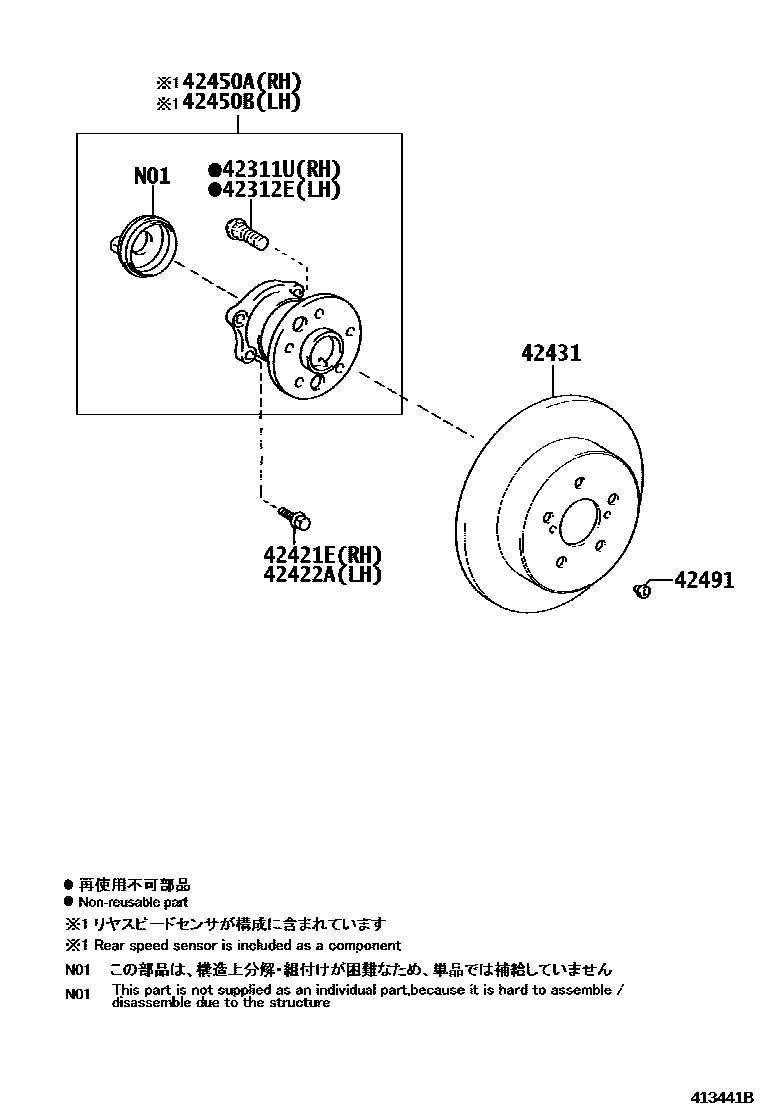

Toyota CAMRY/HYBRID — REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iASV50,AVV50,GSV50..JPP¥240201108-201409

main90942-02049iACV51,ASV50,GSV50..RUP¥240201108-201411

main90942-02049iASV5#,AVV50,GSV50¥240201409

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iASV50,AVV50,GSV50..JPP¥240201108-201409

main90942-02049iACV51,ASV50,GSV50..RUP¥240201108-201411

main90942-02049iASV5#,AVV50,GSV50¥240201409

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10510iASV50,AVV50,GSV50..JPP¥140201108-201409

main90105-10510iACV51,ASV50,GSV50..RUP¥140201108-201411

main90105-10510iASV5#,AVV50,GSV50¥140201409

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10510iASV50,AVV50,GSV50..JPP¥140201108-201409

main90105-10510iACV51,ASV50,GSV50..RUP¥140201108-201411

main90105-10510iASV5#,AVV50,GSV50¥140201409

42431DISC, REAR

main42431-33130iACV51,ASV50,AVV50,GSV50¥8,200201108-201411

main42431-33130iASV5#,AVV50,GSV50¥8,200201409-201803

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-33030iASV50,AVV50,GSV50..JPP¥30,100201108-201409

main42450-33030iACV51,ASV50,GSV50..RUP¥30,100201108-201411

main42450-33030iASV5#,AVV50,GSV50¥30,100201409

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-33010iASV50,AVV50,GSV50..JPP¥30,000201108-201409

main42460-33010iACV51,ASV50,GSV50..RUP¥30,000201108-201411

main42460-33010iASV5#,AVV50,GSV50¥30,000201409

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iACV51,ASV50,AVV50,GSV50¥140201108-201411

main47491-22020iASV5#,AVV50,GSV50¥140201409-201803

8 parts on this diagram · 1 diagram in section
