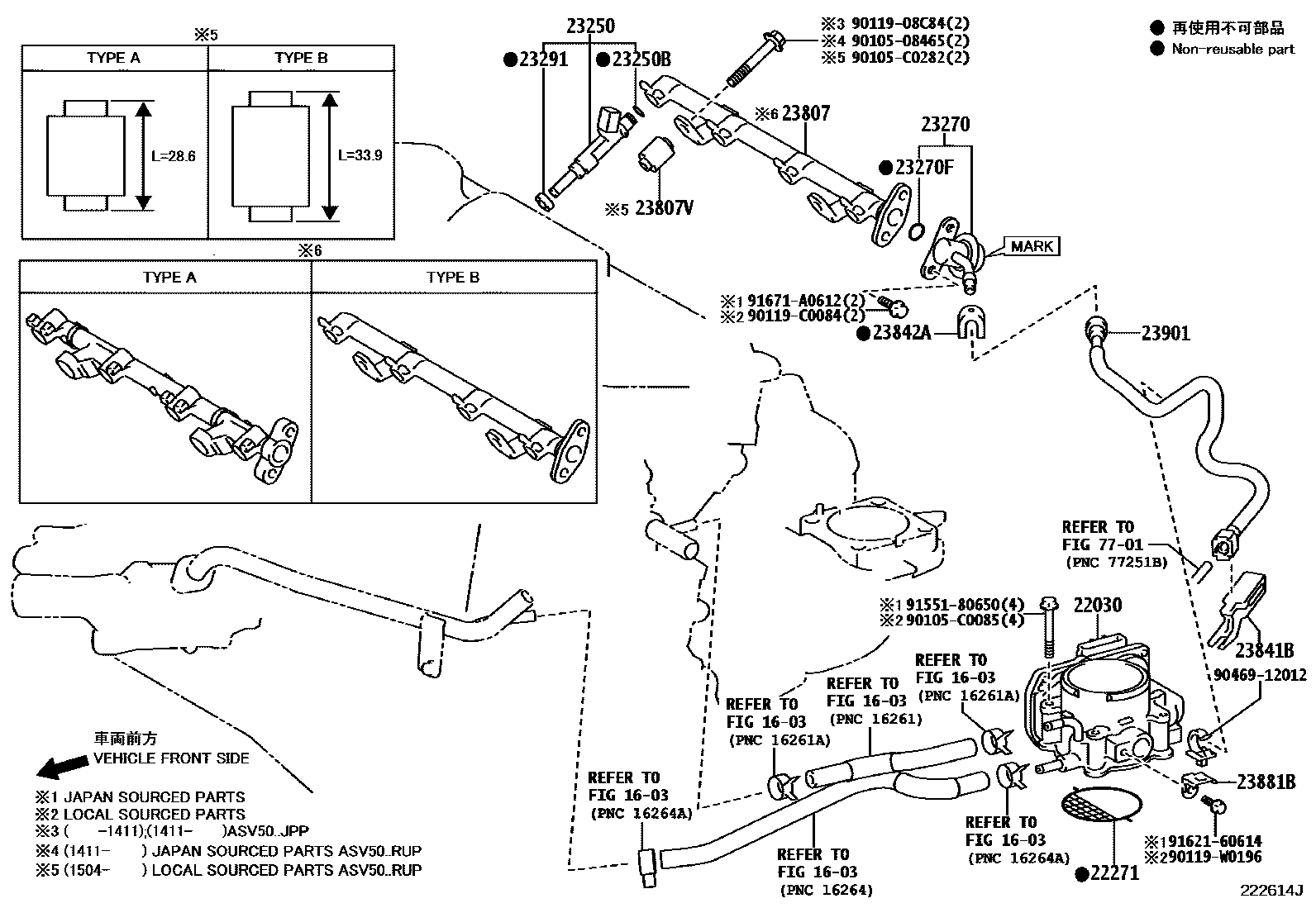

Toyota CAMRY/HYBRID — FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(L)
*347
(J)
*107
22271GASKET, THROTTLE BODY
*347
*107
23250INJECTOR ASSY, FUEL
*347
*107
23250BRING, O(FOR FUEL INJECTOR)
*107
*347
(J)
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
*107MARK 23270-36031
*347
23270FRING, O(FOR PULSATION DAMPER)
*107
*347
23291INSULATOR, INJECTOR VIBRATION
(L)
(L),*347
(L)
(J)
(J)
(J),*347
*107
23807PIPE SUB-ASSY, FUEL DELIVERY
(L),TYPE B:REF ILL.
TYPE B:REFER ILLUST.
(J),TYPE B:REF ILL.
23807VSPACER, NO.1(FOR DELIVERY PIPE)
TYPE B:REFER ILLUST.
*347T/P A:REF.ILLUST
*107T/P A:REF.ILLUST
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23901TUBE SUB-ASSY, FUEL
7701
9010508465
90105C0085
main90105-C0085
90105C0282
main90105-C0282
9011908C84
90119C0084
main90119-C0084
90119W0196
main90119-W0196
9046912012
9155180650
9162160614
91671A0612
25 parts on this diagram · 5 diagrams in section
