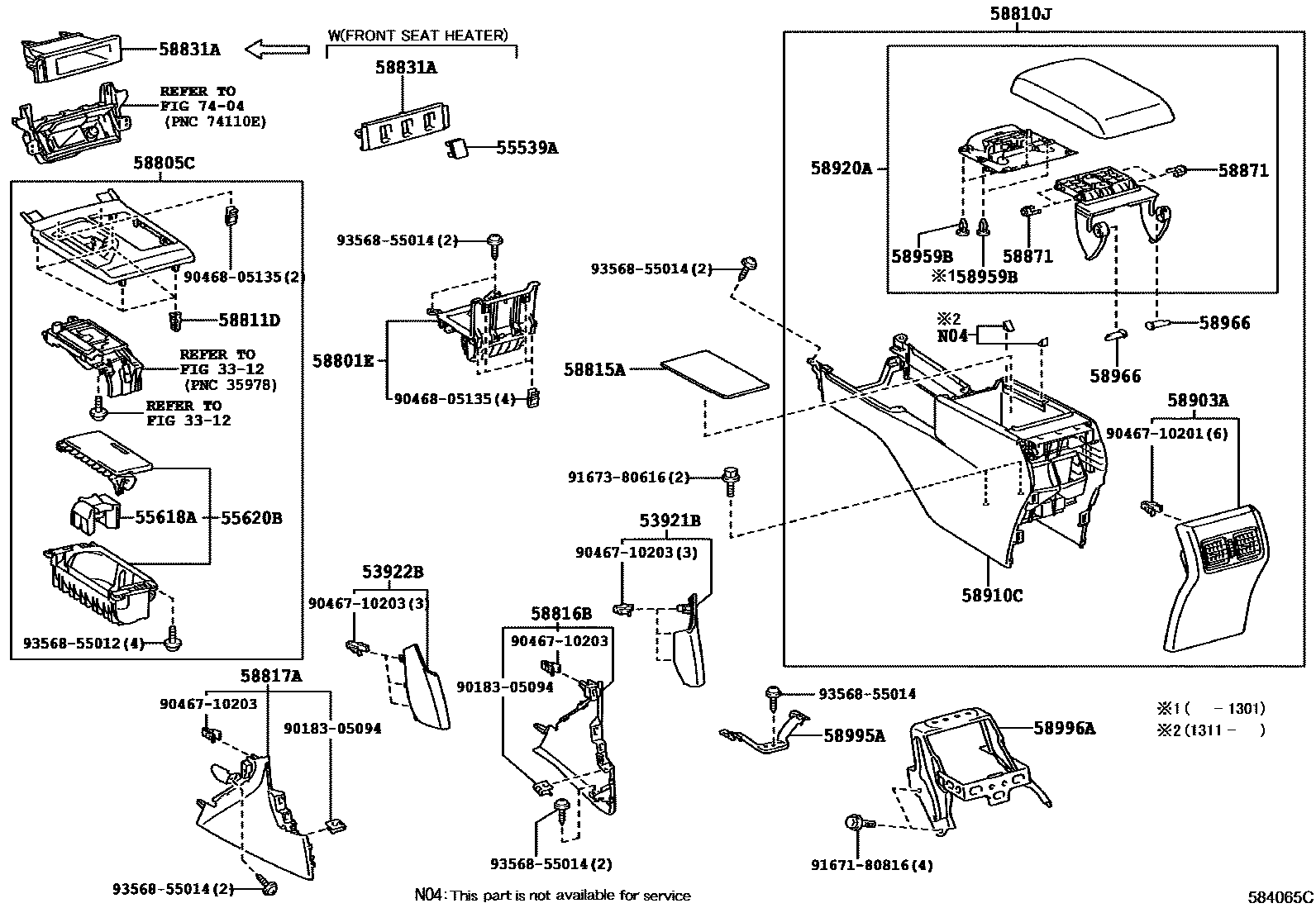

Toyota CAMRY/HYBRID — CONSOLE BOX & BRACKET
53921BGARNISH, FRONT PANEL, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#,(L)
BLACK,TRIM0#,2#,(L)
BLACK,TRIM2#,(J)
BLACK,TRIM0#,2#,4#,(J)
BLACK,TRIM0#,2#,(J)
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
53922BGARNISH, FRONT PANEL, LH
BLACK,TRIM0#,2#,(L)
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#,(L)
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#,(J)
BLACK,TRIM0#,2#,(J)
BLACK,TRIM2#,(J)
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
TMMR,2GR,SFX,N5
55620BHOLDER, INSTRUMENT PANEL CUP
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#,4#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#,4#
SHELL,TRIM0#,2#
BROWN,TRIM0#,2#
58801EBOX SUB-ASSY, CONSOLE, UPPER
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
BROWN,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
BROWN,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#,4#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM2#
BROWN,TRIM0#,2#
BROWN,TRIM0#,2#
58810JBOX ASSY, CONSOLE
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#
sub58810-33212
*SES&HID,SHELL,TRIM0#
*SES&*NS&*JA&HID,SHELL,TRIM0#
*LES&*DA&*PSE,SHELL,TRIM0#
SHELL,TRIM0#
BLACK,TRIM2#
*LES&*DA&*PSE,BLACK,TRIM2#
*SES&HID,BLACK,TRIM2#
*SES&*NS&*JA&HID,BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#
sub58810-33290
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3,FLAXEN,TRIM0#
sub58810-33290
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,FLAXEN,TRIM0#
sub58810-33290
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,FLAXEN,TRIM0#
sub58810-33290
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3,BLACK,TRIM2#
sub58810-33290
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,BLACK,TRIM2#
sub58810-33290
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,BLACK,TRIM2#
sub58810-33290
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
(L)
(J)
58816BINSERT, CONSOLE BOX
BLACK,TRIM0#,2#,(L)
BLACK,TRIM0#,2#,4#,(L)
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#,(J)
BLACK,TRIM0#,2#,(J)
BLACK,TRIM2#,(J)
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,4#,(L)
BLACK,TRIM0#,2#,(L)
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#,(J)
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,(J)
BLACK,TRIM2#,(J)
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
*PSE(*DRP) & LEATHER PACKAGE&SEAT HEATER-W(FRONT)
SEAT HEATER-WITH(FRONT)
58871CUSHION, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
SHELL,TRIM0#
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R4,FLAXEN,TRIM0#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4,FLAXEN,TRIM0#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,R3,FLAXEN,TRIM0#
58910CBOX ASSY, CONSOLE, REAR
SHELL,TRIM0#
FLAXEN,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
58920AARMREST ASSY, REAR CONSOLE
*LES&*DA&*PSE&*AFLS&HID,SHELL,TRIM0#,REFER TO ILLUST.
*SES&*AFLS&HID,SHELL,TRIM0#,REFER TO ILLUST.
*SES&*AFLS&*NS&*JA&HID,SHELL,TRIM0#,REFER TO ILLUST.
*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#,REFER TO ILLUST.
SHELL,TRIM0#,REFER TO ILLUST.
*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,REFER TO ILLUST.
BLACK,TRIM2#,REFER TO ILLUST.
*LES&*DA&*PSE&*AFLS&HID,BLACK,TRIM2#,REFER TO ILLUST.
*SES&*AFLS&HID,BLACK,TRIM2#,REFER TO ILLUST.
*SES&*AFLS&*NS&*JA&HID,BLACK,TRIM2#,REFER TO ILLUST.
*SES&HID,SHELL,TRIM0#,REFER TO ILLUST.
*SES&*NS&*JA&HID,SHELL,TRIM0#,REFER TO ILLUST.
SHELL,TRIM0#,REFER TO ILLUST.
*LEP2&DA&LES,SHELL,TRIM0#,REFER TO ILLUST.
*LES&*DA&*PSE,SHELL,TRIM0#,REFER TO ILLUST.
*LEP2&DA&LES,BLACK,TRIM2#,REFER TO ILLUST.
BLACK,TRIM2#,REFER TO ILLUST.
*LES&*DA&*PSE,BLACK,TRIM2#,REFER TO ILLUST.
*SES&HID,BLACK,TRIM2#,REFER TO ILLUST.
*SES&*NS&*JA&HID,BLACK,TRIM2#,REFER TO ILLUST.
SHELL,TRIM0#,REFER TO ILLUST.
BLACK,TRIM2#,REFER TO ILLUST.
SHELL,TRIM0#,REFER TO ILLUST.
FLAXEN,TRIM0#,REFER TO ILLUST.
BLACK,TRIM2#,REFER TO ILLUST.
BLACK,TRIM2#,REFER TO ILLUST.
FLAXEN,TRIM0#,REFER TO ILLUST.
BLACK,TRIM2#,REFER TO ILLUST.
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58966SHAFT, BOX DOOR HINGE
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
(L)
(J)
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
(L)
(J)
9018305094
9046710201
9046710203
9046805135
9167180816
9167380616
9356855012
9356855014
29 parts on this diagram · 5 diagrams in section
