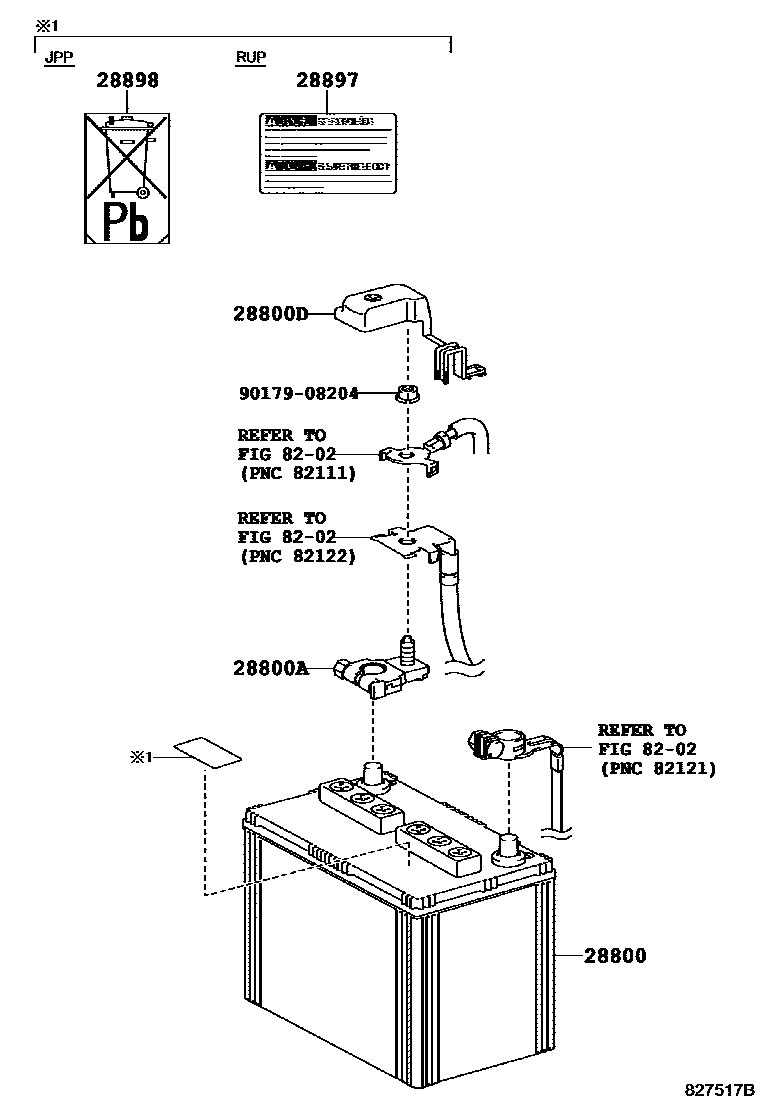

Toyota CAMRY/HYBRID — BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-0H161i2ARFE,6ARFSE,2GRFE..ASV5#,GSV50..RUP201604-201803

80D26L

main28800-17121i2ARFE,2GRFE..ASV50,GSV50..LHD..EUR201108-201204

80D26L,FURUKAWA

sub28800-38080¥50,300

main28800-17121i2ARFE,2GRFE..ASV50,GSV50..LHD..EUR201108-201204

80D26L,COLD AREA SPEC,FURUKAWA

sub28800-38080¥50,300

main28800-28100i2ARFXE..AVV50¥56,400201108-201704

S55D23R

sub28800-28101

main28800-28210i2ARFE,2GRFE..ASV50,GSV50..JPP..RUS201204-201409

80D26L,FURUKAWA

sub28800-28211

main28800-28210i1AZFE,2ARFE,2GRFE..ACV51,ASV50,GSV50..RUP201111-201411

80D26L

sub28800-28211

main28800-28210i2ARFE,2GRFE..ASV50,GSV50..LHD..EUR201204-201409

80D26L,COLD AREA SPEC,FURUKAWA

sub28800-28211

main28800-38080i2ARFE,2GRFE..ASV50,GSV50..LHD..EUR¥50,300201409-201704

80D26L,FURUKAWA

sub28800-38081

main28800-38080i2ARFE,6ARFSE,2GRFE..ASV5#,GSV50..RUP¥50,300201411-201603

80D26L

sub28800-38081

main28800-38080i2ARFE,2GRFE..ASV50,GSV50..JPP..RUS¥50,300201409-201704

80D26L,COLD AREA SPEC,FURUKAWA

sub28800-38081

main28800-42041i2ARFE,2GRFE..ASV50,GSV50..EUR201108-201704

55D23L,PANASONIC,GS YUASA

sub28800-31260

main28800-42061i2ARFE,2GRFE..ASV50,GSV50..EUR201108-201204

55D23L,FURUKAWA

sub28800-42062¥52,200

main28800-42062i2ARFE,2GRFE..ASV50,GSV50..EUR¥52,200201205-201704

55D23L,FURUKAWA

sub28800-42063

main28800-54020i2ARFE,2GRFE..ASV50,GSV50..LHD..EUR201108-201704

80D26L,PANASONIC,GS YUASA

sub28800-67102

main28800-54020i2ARFE,2GRFE..ASV50,GSV50..JPP..RUS201108-201704

80D26L,COLD AREA SPEC,PANASONIC,GS YUASA

sub28800-67102

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFE,2GRFE..ASV50,GSV50..JPP¥850201108-201803

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2ARFE,2GRFE..ASV50,GSV50..JPP¥640201108-201704

main82821-47110i2ARFXE..AVV50¥530201108-201704

28897PLATE, BATTERY CAUTION

main28897-31040i2ARFE,6ARFSE,2GRFE..ASV5#,GSV50..RUP¥180201108-201704

28898PLATE, BATTERY

main28898-46020i2ARFE,2GRFE..ASV50,GSV50..JPP¥110201108-201409

main28898-46020i2ARFE,2GRFE..ASV50,GSV50..JPP¥110201409-201704

BRAZIL SPEC

8202

9017908204

main90179-08204¥140

7 parts on this diagram · 6 diagrams in section
