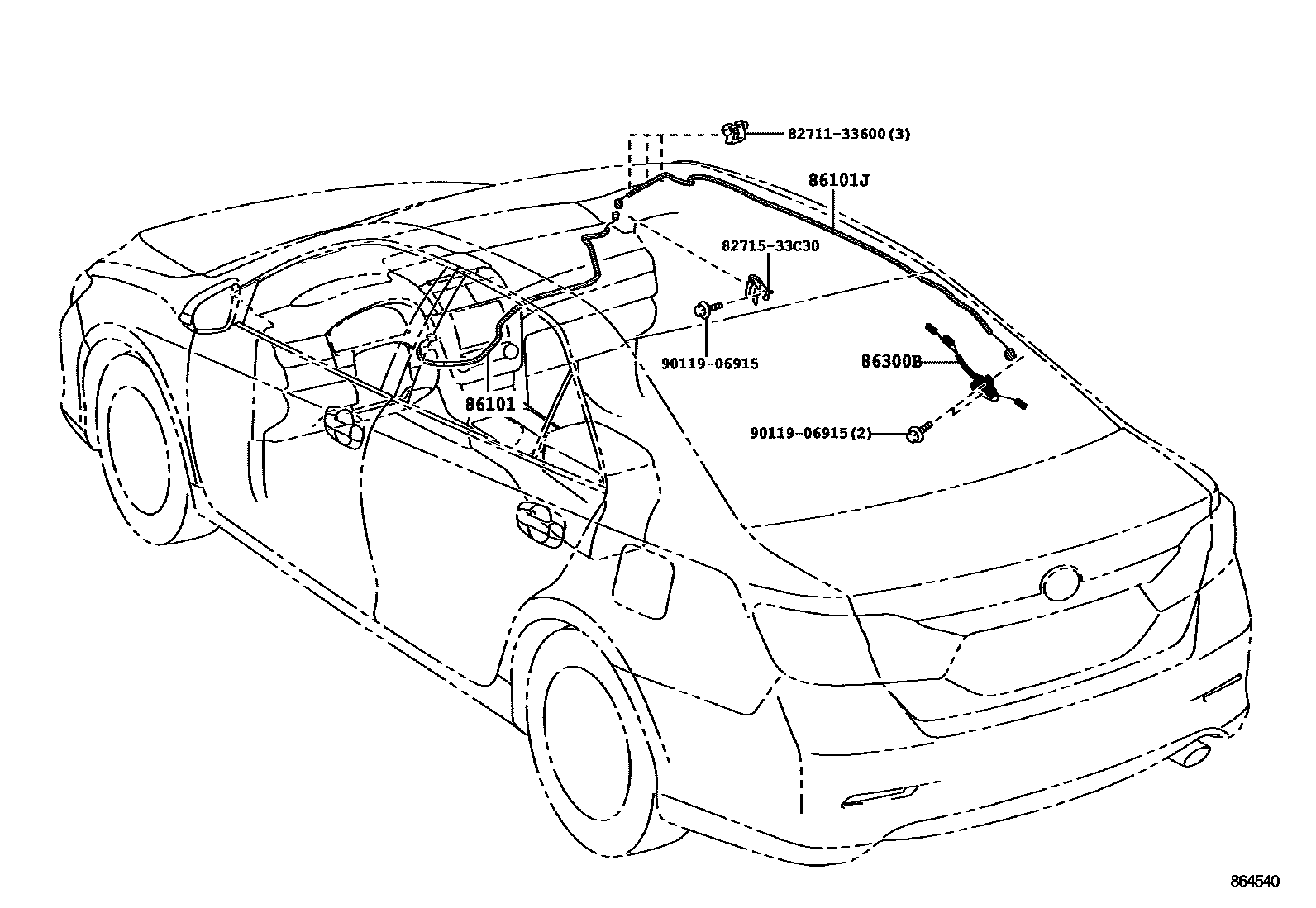

Toyota CAMRY/HYBRID — ANTENNA

0001 1 0003 1 0005 1 0006 1

86101CORD SUB-ASSY, ANTENNA

main86101-33A90iASV50,AVV50..RHD¥4,760201108-201409

main86101-33B00iACV51,ASV50,GSV50..RUP201108-201411

main86101-33E40iGSV50..RUP201411-201612

SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4

main86101-33G70iASV50,AVV50..RHD¥5,400201409-201704

main86101-33G80iASV50,AVV50,GSV50..JPP..LHD201409-201704

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-33A70iASV5#..RUP¥5,400201108-201411

main86101-33D90iGSV50..RUP201411-201612

SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4

main86101-33G60iASV50,AVV50,GSV50..JPP¥5,400201409-201704

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-33330iASV50,AVV50,GSV50..JPP¥7,600201108-201411

8271133600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33600¥210

8271533C30BRACKET,WIRING HARNESS CLAMP

main82715-33C30¥270

9011906915

main90119-06915¥60

6 parts on this diagram · 4 diagrams in section
