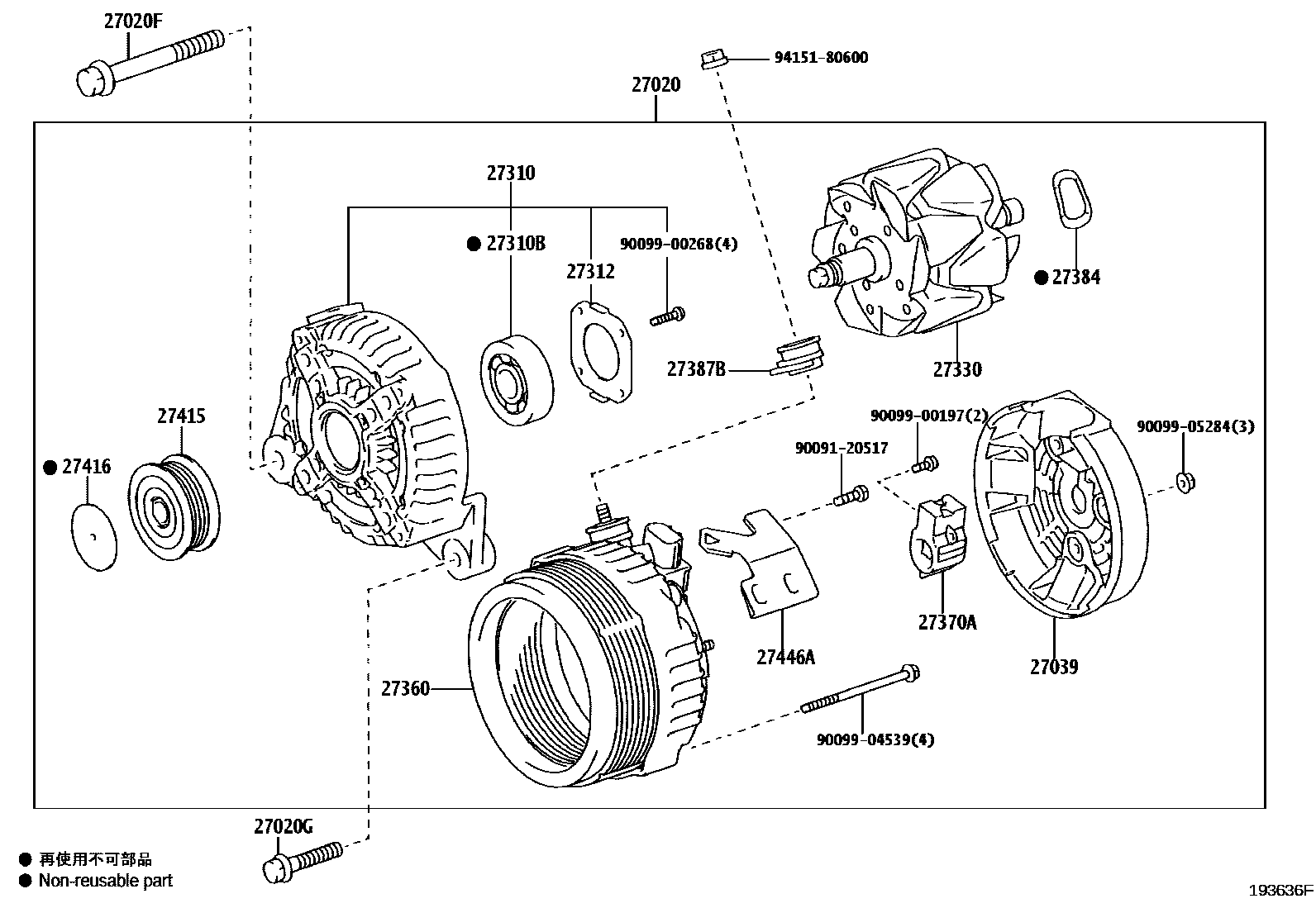

Toyota CAMRY/HYBRID — ALTERNATOR
27020ALTERNATOR ASSY
12V 130A,TYPE A:REFER ILLUST.
12V 100A
12V 100A
12V 100A
12V 100A
12V 100A
12V 130A,SEAT HEATER-WITH(FRONT & REAR)
12V 130A
12V 130A,TYPE B:REFER ILLUST.
12V 150A
12V 100A
12V 100A
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
(L)
(J)
27039COVER, ALTERNATOR REAR END
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
27310FRAME ASSY, DRIVE END, ALTERNATOR
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
SEAT HEATER-WITH(FRONT & REAR)
TYPE B:REFER ILLUST.
SEAT COVER MATERIAL-SYNTHETIC LEATHER,N4
27360COIL ASSY, ALTERNATOR
TYPE A:REFER ILLUST.
sub27360-28200
SEAT HEATER-WITH(FRONT & REAR)
TYPE B:REFER ILLUST.
sub27360-36091
27370AHOLDER ASSY, ALTERNATOR BRUSH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
27384WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
27387BINSULATOR, ALTERNATOR TERMINAL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27446ACLAMP
9009120517
9009900197
main90099-00197
9009900268
9009904539
9009905284
9415180600
21 parts on this diagram · 11 diagrams in section
