Toyota CAMRY/HYBRID (NAP) — TELEPHONE & MAYDAY

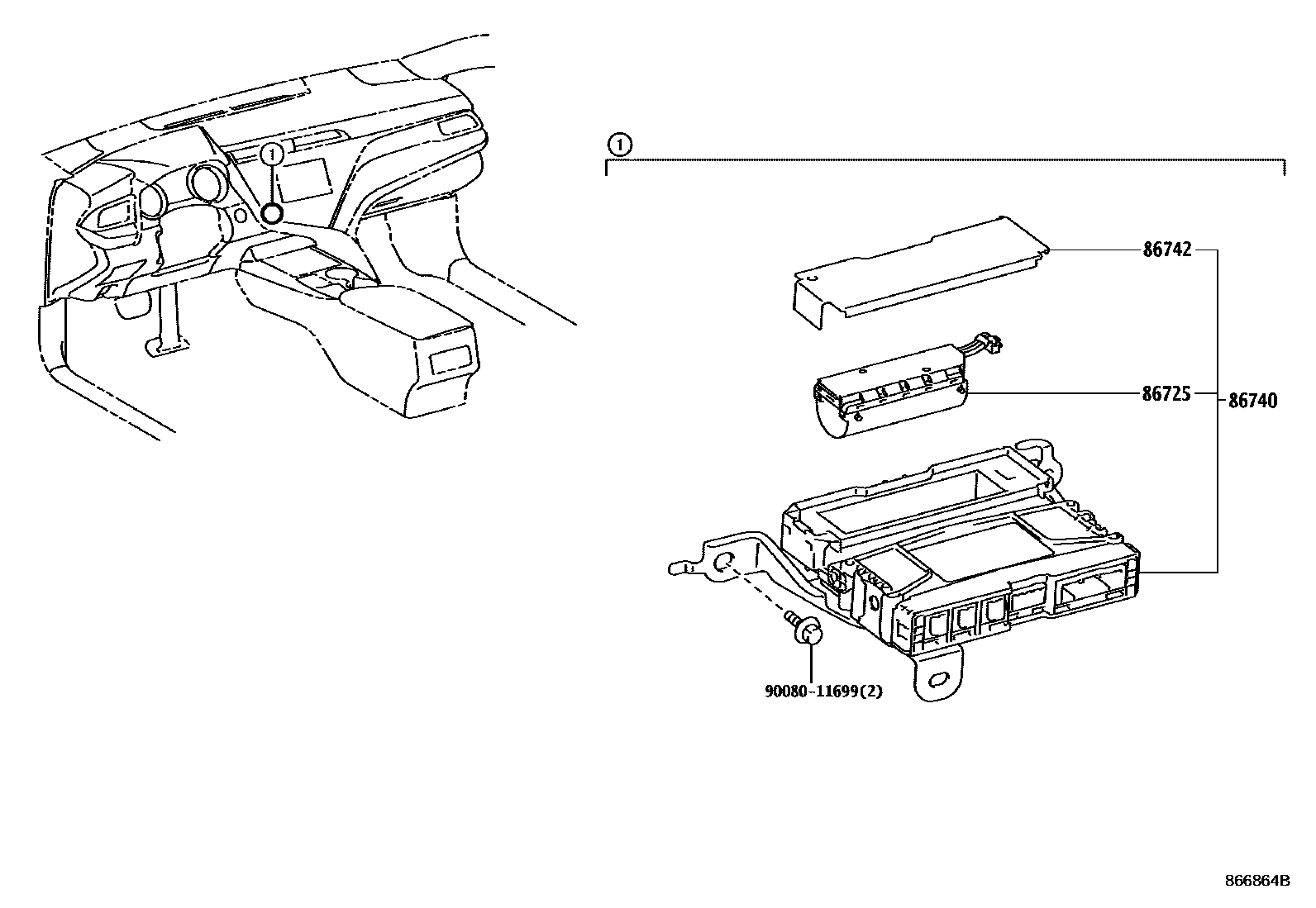

Parts diagram
86725BATTERY, MOBILEPHONE
main86725-06010i201706-201909
MEXICO SPEC
sub86725-0E010¥7,500
main86725-06010i201706-201909
USA POSSESSION SPEC
sub86725-0E010¥7,500
main86725-06010i201706-201909
CANADA SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
sub86725-0E010¥7,500
main86725-06010i201706-201909
HAWAII SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
sub86725-0E010¥7,500
main86725-06010i201706-201909
PUERTO RICO SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
sub86725-0E010¥7,500
main86725-06010i201809-201909
CANADA SPEC
sub86725-0E010¥7,500
main86725-06010i201809-201909
HAWAII SPEC
sub86725-0E010¥7,500
main86725-06010i201809-201909
MEXICO SPEC
sub86725-0E010¥7,500
main86725-06010i201809-201909
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
sub86725-0E010¥7,500
main86725-06010i201809-201909
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
sub86725-0E010¥7,500
main86725-06010i201809-201909
USA POSSESSION SPEC
sub86725-0E010¥7,500
main86725-06010i201809-201909
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
sub86725-0E010¥7,500
main86725-06010i201809-201909
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
sub86725-0E010¥7,500
main86725-06010i201809-201909
PUERTO RICO SPEC
sub86725-0E010¥7,500
main86725-06020i201909-202010
CANADA SPEC
main86725-06020i201909-202010
HAWAII SPEC
main86725-06020i201909-202010
MEXICO SPEC
main86725-06020i201909-202010
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86725-06020i201909-202010
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86725-06020i201909-202010
USA POSSESSION SPEC
main86725-06020i201909-202010
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86725-06020i201909-202010
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86725-06020i201909-202010
PUERTO RICO SPEC
main86725-06020i201909-202010
AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86725-06020i201909-202010
AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86725-06020i201909-202010
CANADA SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86725-06020i201909-202010
HAWAII SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86725-06020i201909-202010
PUERTO RICO SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86725-06020i202003-202010
CANADA SPEC
main86725-06020i202010
AUDIO-9INCH *DA & 6SPEAKER
main86725-06020i202010
AUDIO-9INCH *DA & JBL & 9SPEAKER
86740TRANSCEIVER ASSY, TELEPHONE
main86740-06060i201706-201909
MEXICO SPEC
main86740-06060i201706-201909
USA POSSESSION SPEC
main86740-06060i201706-201909
CANADA SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86740-06060i201706-201909
HAWAII SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86740-06060i201706-201909
PUERTO RICO SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86740-06060i201809-201909
CANADA SPEC
main86740-06060i201809-201909
HAWAII SPEC
main86740-06060i201809-201909
MEXICO SPEC
main86740-06060i201809-201909
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86740-06060i201809-201909
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86740-06060i201809-201909
USA POSSESSION SPEC
main86740-06060i201809-201909
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86740-06060i201809-201909
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86740-06060i201809-201909
PUERTO RICO SPEC
86742COVER, TRANSCEIVER
main86742-06010i201706-201909
MEXICO SPEC
main86742-06010i201706-201909
USA POSSESSION SPEC
main86742-06010i201706-201909
CANADA SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86742-06010i201706-201909
HAWAII SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86742-06010i201706-201909
PUERTO RICO SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86742-06010i201809-201909
CANADA SPEC
main86742-06010i201809-201909
HAWAII SPEC
main86742-06010i201809-201909
MEXICO SPEC
main86742-06010i201809-201909
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86742-06010i201809-201909
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86742-06010i201809-201909
USA POSSESSION SPEC
main86742-06010i201809-201909
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86742-06010i201809-201909
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86742-06010i201809-201909
PUERTO RICO SPEC
main86742-06020i201909-202010
CANADA SPEC
main86742-06020i201909-202010
HAWAII SPEC
main86742-06020i201909-202010
MEXICO SPEC
main86742-06020i201909-202010
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86742-06020i201909-202010
MEXICO SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86742-06020i201909-202010
USA POSSESSION SPEC
main86742-06020i201909-202010
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86742-06020i201909-202010
USA POSSESSION SPEC&AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86742-06020i201909-202010
PUERTO RICO SPEC
main86742-06020i201909-202010
AUDIO-8INCH DISPLAY & CD & 6SPEAKER
main86742-06020i201909-202010
AUDIO-8INCH DISPLAY & CD & 9SPEAKER
main86742-06020i201909-202010
CANADA SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86742-06020i201909-202010
HAWAII SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86742-06020i201909-202010
PUERTO RICO SPEC&AUDIO-7INCH DISPLAY & 6SPEAKER
main86742-06020i202003-202010
CANADA SPEC
main86742-06020i202010
AUDIO-9INCH *DA & 6SPEAKER
main86742-06020i202010
AUDIO-9INCH *DA & JBL & 9SPEAKER
9008011699
main90080-11699¥110

4 parts on this diagram · 3 diagrams in section
