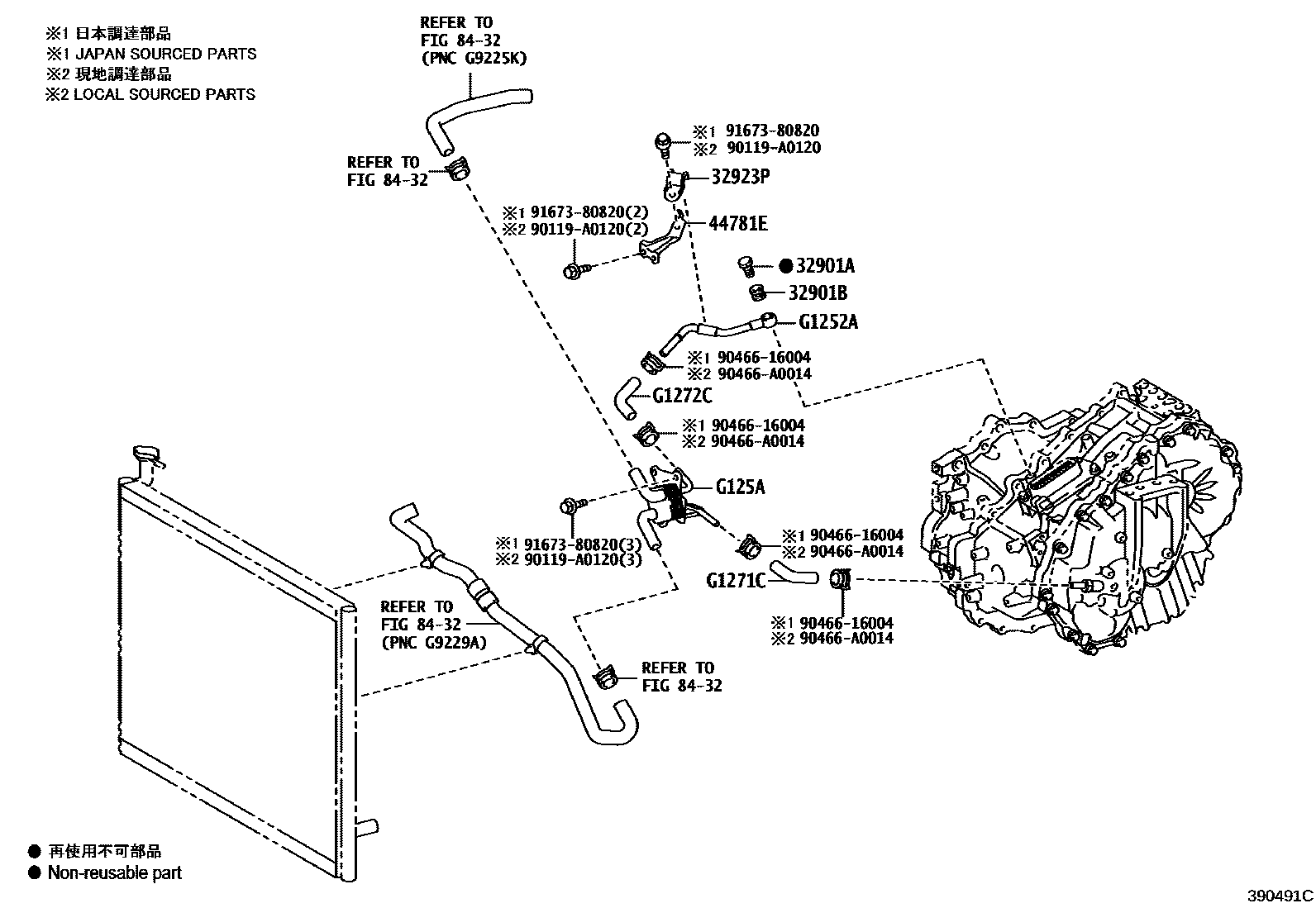

Toyota CAMRY/HYBRID (NAP) — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXVH7#¥390201706-202010

main90401-12039iAXVH7#¥390202010

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXVH7#¥80201706-202010

main90430-12037iAXVH7#¥80202010

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAXVH7#¥200201706-202010

main32923-52040iAXVH7#¥200202010

44781EBRACKET, HOSE

main44781-33020iAXVH7#¥470201706-202010

main44781-33020iAXVH7#¥470202010

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125206010iAXVH7#202010

(L)

mainG125233010iAXVH7#202010

(J)

mainG125233010iAXVH7#201706-202010

G125ACOOLER, MOTOR COOLING

mainG125A33010iAXVH7#201706-202010

mainG125A33010iAXVH7#202010

G1271CHOSE, MOTOR COOLING, NO.1

mainG127106010iAXVH7#202010

(L)

mainG127106010iAXVH7#201706-202010

mainG127133010iAXVH7#202010

(J)

G1272CHOSE, MOTOR COOLING, NO.2

mainG127206010iAXVH7#202010

(L)

mainG127233010iAXVH7#201706-202010

mainG127233010iAXVH7#202010

(J)

90119A0120

main90119-A0120

9046616004

main90466-16004¥180

90466A0014

main90466-A0014

9167380820

main91673-80820¥80

13 parts on this diagram · 1 diagram in section
