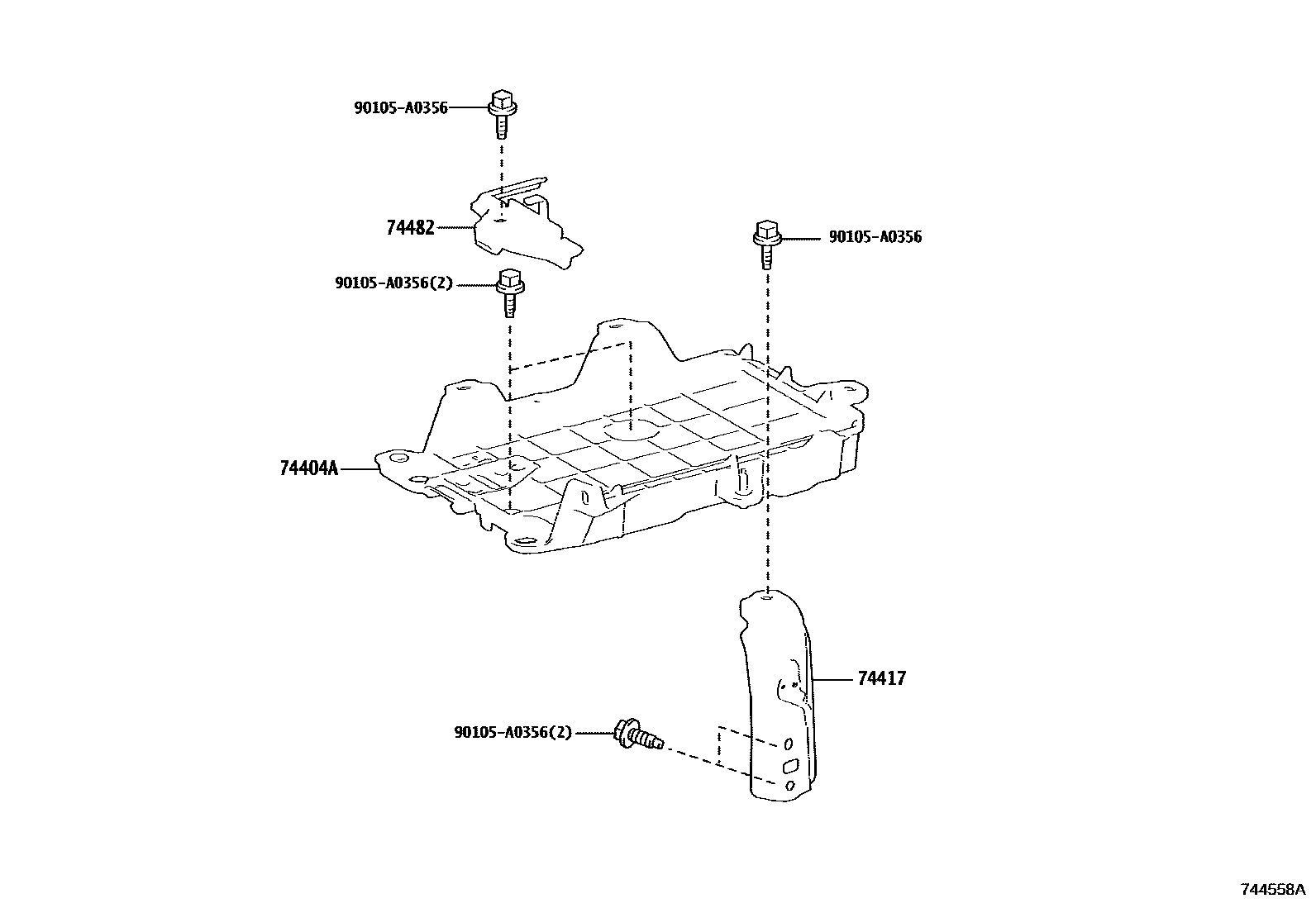

Toyota CAMRY/HYBRID (NAP) — BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-06190iAXVA70,GSV70201706-202010

main74404-06190iAXVA75202003-202010

main74404-06190iAXVA7#,GSV70202010

74417BRACKET, BATTERY CARRIER

main74401-06010iAXVA70,GSV70201706-202010

main74401-06010iAXVA75202003-202010

main74401-06010iAXVA7#,GSV70202010

74482CLAMP, BATTERY, NO.2

main74482-06050iAXVA70,GSV70201706-202010

main74482-06050iAXVA75202003-202010

main74482-06050iAXVA7#,GSV70202010

90105A0356

main90105-A0356

4 parts on this diagram · 2 diagrams in section
