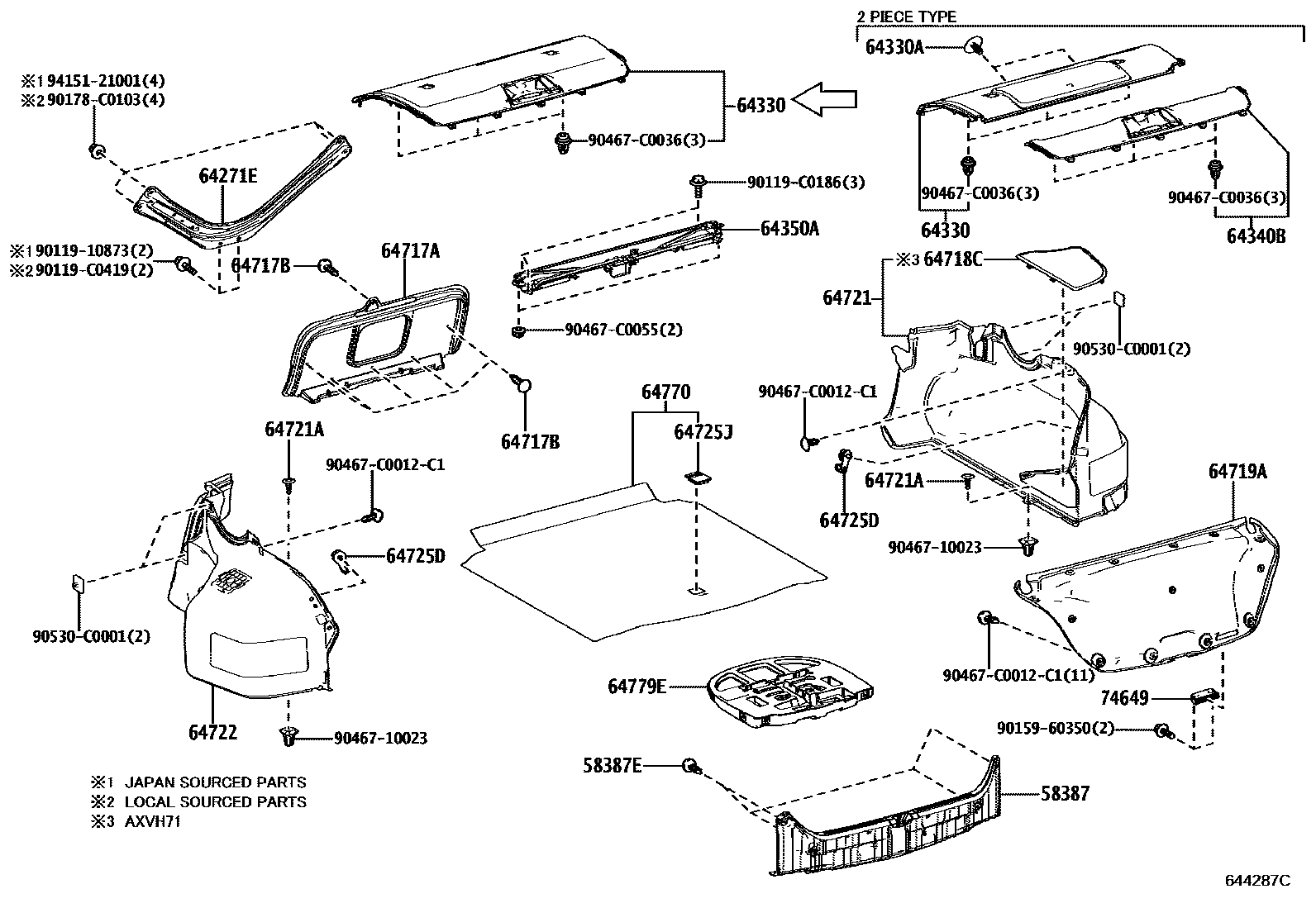

Toyota CAMRY/HYBRID (CHINA) — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1W(FIX TYPE REAR SEAT) 0002 1W(FOLD TYPE REAR SEAT)

58387PLATE, REAR FLOOR FINISH

main58387-06220-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main58387-06220-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main58387-06220-C0iASV71201712-201902

BLACK,TRIM2#,4#

main58387-06220-C0iMXVA71..E201903-202103

BLACK,TRIM4#

main58387-06220-C0iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,4#

main58387-06220-C0iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,3#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-C0012-C1iASV71201712-201902

BLACK

main90467-C0012-C1iAXVA70,AXVH71,MXVA71201712-202103

BLACK

main90467-C0012-C1iAXVA70,AXVH71,MXVA71202103

BLACK

64271EPANEL, ROOM PARTITION

main64241-06090iASV71..E201712-201902

main64241-06090iAXVH71,MXVA71..E201712-202103

UPGRADE PACKAGE

main64241-06090iAXVH71,MXVA71..E202103

WITH(ELECTRIC TILT & TELESCOPIC)

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06A80-C0iASV71..E,G201712-201902

BLACK,TRIM2#,4#

main64330-06A80-C0iASV71..E,G201712-201902

BLACK,TRIM2#

main64330-06A80-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main64330-06A80-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main64330-06A80-C0iMXVA71..E201903-202103

BLACK,TRIM4#

main64330-06A80-C0iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,4#

main64330-06A80-C0iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,3#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-C0016-C1iASV71..G201712-201902

BLACK,TRIM2#,4#

main90467-C0016-C1iASV71..G201712-201902

BLACK,TRIM2#

main90467-C0016-C1iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main90467-C0016-C1iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main90467-C0016-C1iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,3#

main90467-C0016-C1iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,4#

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

64350ASHADE ASSY, REAR WINDOW

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-06300-C1iASV71..E201712-201902

BLACK,TRIM2#,4#

main64717-06300-C1iAXVH71..E201712-202103

BLACK,TRIM2#,4#

main64717-06300-C1iAXVH71..E201712-202103

UPGRADE PACKAGE,BLACK,TRIM2#,4#

main64717-06300-C1iMXVA71..E201903-202103

BLACK,TRIM4#

main64717-06300-C1iAXVH71,MXVA71..E202103

BLACK,TRIM2#,4#

main64717-06300-C1iAXVH71,MXVA71..E202103

WITH(ELECTRIC TILT & TELESCOPIC),BLACK,TRIM2#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-C0012-C1iASV71..E201712-201902

BLACK

main90467-C0012-C1iAXVH71,MXVA71..E201712-202103

BLACK

main90467-C0012-C1iAXVH71,MXVA71..E201712-202103

UPGRADE PACKAGE,BLACK

main90467-C0012-C1iAXVH71,MXVA71..E202103

BLACK

main90467-C0012-C1iAXVH71,MXVA71..E202103

WITH(ELECTRIC TILT & TELESCOPIC),BLACK

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-06150-C1iAXVH71..E,G201712-202103

BLACK,TRIM2#,4#

main64718-06150-C1iAXVH71..S201903-202103

BLACK,TRIM2#,3#

main64718-06150-C1iAXVH71..E,G202103

BLACK,TRIM2#,4#

main64718-06150-C1iAXVH71..E,G202103

BLACK,TRIM2#,3#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06340-C1iASV71201712-201902

BLACK,TRIM2#,4#

main64719-06340-C1iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main64719-06340-C1iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main64719-06340-C1iMXVA71..E201903-202103

BLACK,TRIM4#

main64719-06340-C1iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,4#

main64719-06340-C1iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,3#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06400-C1iAXVA70,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main64721-06400-C1iASV71201712-201902

BLACK,TRIM2#,4#

main64721-06400-C1iAXVA70,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main64721-06400-C1iMXVA71..E201903-202103

BLACK,TRIM4#

main64721-06400-C1iAXVA70,MXVA71..E,G202103

BLACK,TRIM2#,4#

main64721-06400-C1iAXVA70,MXVA71..E,G202103

BLACK,TRIM2#,3#

main64721-06410-C2iAXVH71..S202103

BLACK,TRIM2#,4#

main64721-06410-C2iAXVH71..E,G202103

BLACK,TRIM2#,3#

main64721-06410-C2iAXVH71..S201903-202103

BLACK,TRIM2#,3#

main64721-06410-C2iAXVH71..E,G201712-202103

BLACK,TRIM2#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08222-C1iASV71201712-201902

BLACK

main90467-08222-C1iAXVA70,AXVH71,MXVA71201712-202103

BLACK

main90467-08222-C1iAXVA70,AXVH71,MXVA71202103

BLACK

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06390-C2iAXVH71..S202304

BLACK,TRIM2#,4#

main64722-06390-C2iAXVH71..S202304

BLACK,TRIM4#

main64722-06390-C2iAXVH71..S202304

BLACK,TRIM2#,3#

main64722-06390-C2iASV71..S201712-201902

BLACK,TRIM2#

main64722-06390-C2iASV71..E,G201712-201902

BLACK,TRIM2#,4#

main64722-06390-C2iAXVH71..E,G201712-202001

BLACK,TRIM2#,4#

main64722-06390-C2iAXVH71..E,G201712-202001

BLACK,TRIM2#,3#

main64722-06390-C2iAXVA70,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main64722-06390-C2iAXVA70,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main64722-06390-C2iMXVA71..E201903-202103

BLACK,TRIM4#

main64722-06390-C2iAXVA70,MXVA71..E,G202103

BLACK,TRIM2#,4#

main64722-06390-C2iAXVA70,MXVA71..E,G202103

BLACK,TRIM2#,3#

main64722-06440-C0iAXVH71..S202001-202103

BLACK,TRIM2#,4#

sub64722-06390

main64722-06440-C0iAXVH71..E,G202001-202103

BLACK,TRIM2#,3#

sub64722-06390

main64722-06440-C0iAXVH71..E,G202103-202303

BLACK,TRIM2#,4#

sub64722-06390

main64722-06440-C0iAXVH71..E,G202103-202303

BLACK,TRIM2#,3#

sub64722-06390

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-33090-C2iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main64725-33090-C2iASV71201712-201902

BLACK,TRIM2#,4#

main64725-33090-C2iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main64725-33090-C2iMXVA71..E201903-202103

BLACK,TRIM4#

main64725-33090-C2iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,4#

main64725-33090-C2iAXVA70,AXVH71,MXVA71..E,G202103

BLACK,TRIM2#,3#

64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06060iASV71201712-201902

main64725-06060iAXVA70,AXVH71,MXVA71201712-202103

main64725-06060iAXVA70,AXVH71,MXVA71202103

64770COVER ASSY, SPARE WHEEL

main64770-06430-C1iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

main64770-06430-C1iASV71..G,S201712-201902

BLACK,TRIM2#,4#

main64770-06430-C1iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

main64770-06430-C1iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,3#

main64770-06430-C1iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,4#

main64770-06440-C1iAXVA70,AXVH71..G202103

WITH(ELECTRIC TILT & TELESCOPIC),BLACK,TRIM2#,4#

main64770-06440-C1iASV71..E201712-201902

BLACK,TRIM4#

main64770-06440-C1iAXVH71,MXVA71..E202103

BLACK,TRIM2#,4#

main64770-06440-C1iAXVH71,MXVA71..E201712-202103

BLACK,TRIM4#

main64770-06440-C1iAXVH71,MXVA71..E201712-202103

UPGRADE PACKAGE,BLACK,TRIM2#,4#

64779ETRAY, SPARE WHEEL COVER

main64779-06200iAXVA70,AXVH71,MXVA71201712-202103

main64779-06200iASV71201712-201902

main64779-06200iAXVA70,AXVH71,MXVA71202103

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-51010-C3iASV71..S201712-201902

BLACK,TRIM2#

sub74649-51010¥1,410

main74649-51010-C3iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

sub74649-51010¥1,410

main74649-51010-C3iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,4#

sub74649-51010¥1,410

main74649-51010-C3iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,4#

sub74649-51010¥1,410

main74649-51010-C3iMXVA71..E201903-202103

BLACK,TRIM4#

sub74649-51010¥1,410

main74649-51010-C3iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,3#

sub74649-51010¥1,410

main74649-51010-C3iASV71..E,G201712-201902

BLACK,TRIM2#,4#

sub74649-51010¥1,410

9011910873

main90119-10873¥120

90119C0186

main90119-C0186

90119C0419

main90119-C0419

9015960350

main90159-60350¥60

90178C0103

main90178-C0103

9046710023

main90467-10023¥70

90467C0012C1

main90467-C0012C1

90467C0036

main90467-C0036

90467C0055

main90467-C0055

90530C0001

main90530-C0001

9415121001

main94151-21001¥100

30 parts on this diagram · 2 diagrams in section
