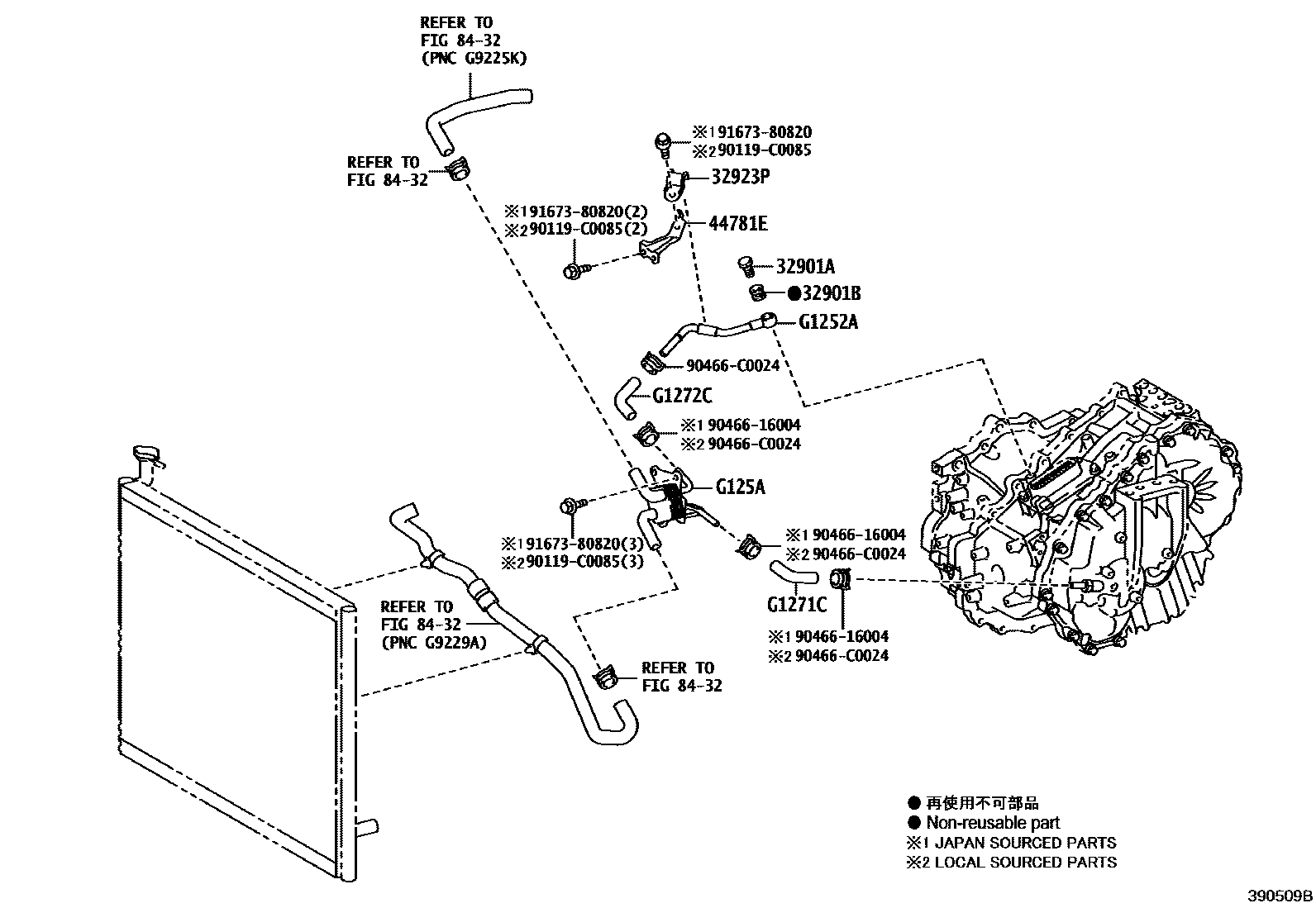

Toyota CAMRY/HYBRID (CHINA) — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXVH71¥390201712-202103

main90401-12039iAXVH71¥390202103

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXVH71¥80201712-202103

main90430-12037iAXVH71¥80202103

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAXVH71¥200201712-202103

main32923-52040iAXVH71¥200202103

44781EBRACKET, HOSE

main44781-06030iAXVH71201712-202103

main44781-06030iAXVH71202103

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125206030iAXVH71201712-202103

mainG125206030iAXVH71202103

G125ACOOLER, MOTOR COOLING

mainG125A06010iAXVH71201712-202103

mainG125A06010iAXVH71202103

G1271CHOSE, MOTOR COOLING, NO.1

mainG127106040iAXVH71201712-202103

mainG127106040iAXVH71202103

G1272CHOSE, MOTOR COOLING, NO.2

mainG127206030iAXVH71201712-202103

mainG127206030iAXVH71202103

90119C0085

main90119-C0085

9046616004

main90466-16004¥180

90466C0024

main90466-C0024

9167380820

main91673-80820¥80

13 parts on this diagram · 1 diagram in section
