Toyota CAMRY/HYBRID (CHINA) — INVERTER COOLING

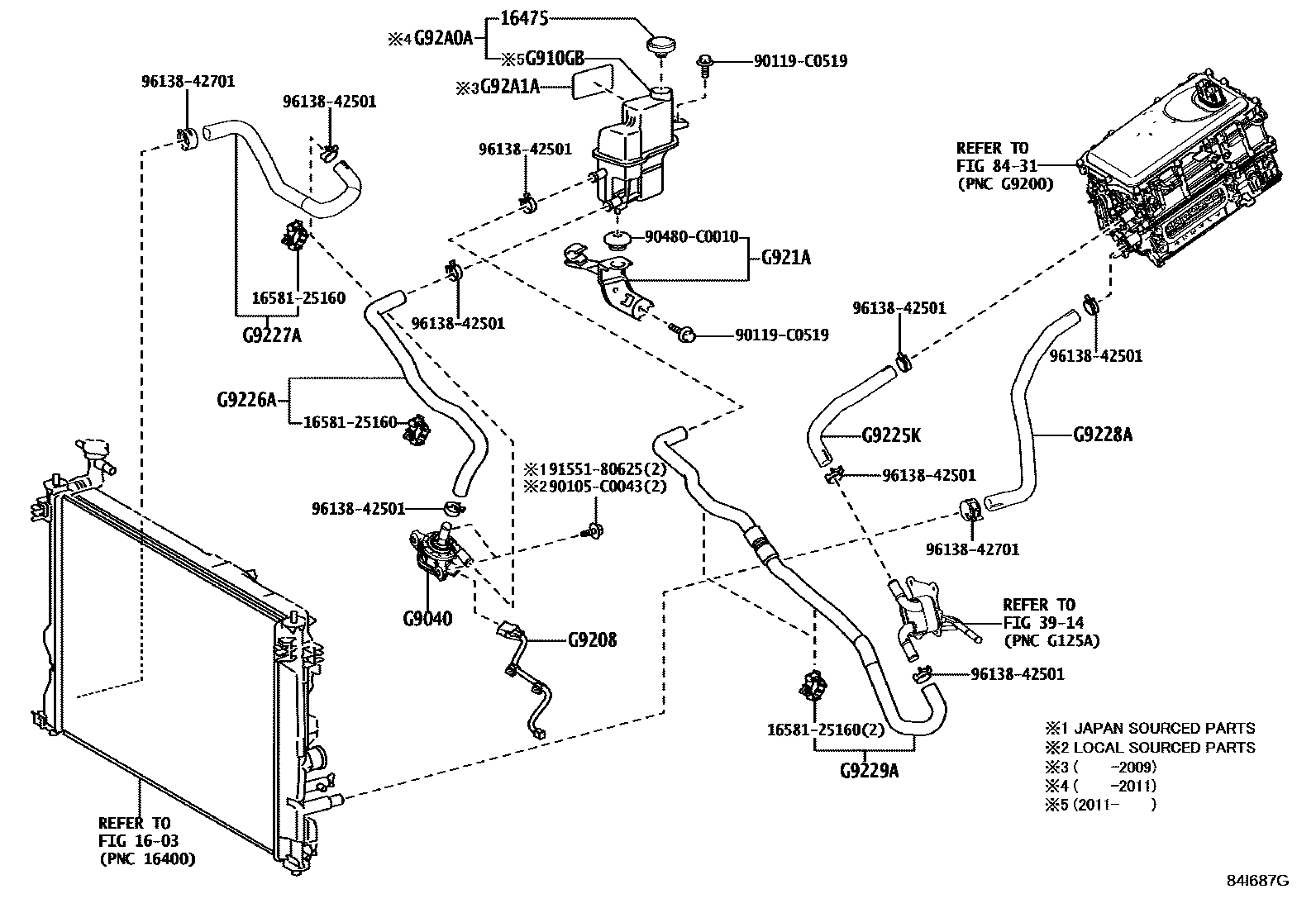

Parts diagram
1603
16475CAP, RESERVE TANK
main16475-28140i¥1,200201712-202103
main16475-28140i¥1,200202103
3914
8431
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
mainG904007010i202103-202104
LOCAL SOURCED PARTS
subG9040-F4020
mainG904007010i202010-202103
LOCAL SOURCED PARTS
subG9040-F4020
mainG904007020i202310
mainG904007020i202304-202310
LOCAL SOURCED PARTS
mainG904028020i202304-202310
JAPAN SOURCED PARTS
subG9040-48060¥27,900
mainG904033050i202103-202304
JAPAN SOURCED PARTS
mainG904033050i201712-202010
mainG904033050i202010-202103
JAPAN SOURCED PARTS
mainG9040F4020i202104-202304
LOCAL SOURCED PARTS
G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP
mainG910G33010i202011-202103
mainG910G33010i202103
G9208WIRE SUB-ASSY, INVERTER
mainG920806020i201712-202103
mainG920806020i202103
G921ABRACKET, INVERTER RESERVE TANK, NO.1
mainG91H206020i202103-202309
mainG91H206020i201712-202103
mainG91H206021i202310
G9225KHOSE, INVERTER COOLING, NO.1
mainG922506100i201712-202103
mainG922506100i202103
G9226AHOSE, INVERTER COOLING, NO.2
mainG922606061i201712-201908
subG9226-06062
mainG922606062i201909-202103
mainG922606062i202103
G9227AHOSE, INVERTER COOLING, NO.3
mainG922706060i201712-201908
subG9227-06061
mainG922706061i201909-202103
mainG922706061i202103
G9228AHOSE, INVERTER COOLING, NO.4
mainG922806110i201712-202103
mainG922806110i202103
G9229AHOSE, INVERTER COOLING, NO.5
mainG922906071i201712-201908
subG9229-06072
mainG922906072i201909-202103
mainG922906072i202103
G92A0ATANK ASSY, INVERTER RESERVE
mainG91H033010i201712-202011
G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION
mainG92A176010i201712-202009
1658125160CLAMP, HOSE(FOR WATER HOSE)
main16581-25160¥300
90105C0043
main90105-C0043
90119C0519
main90119-C0519
90480C0010
main90480-C0010
9155180625
main91551-80625¥60
9613842501
main96138-42501¥180
9613842701
main96138-42701¥200

22 parts on this diagram · 1 diagram in section
