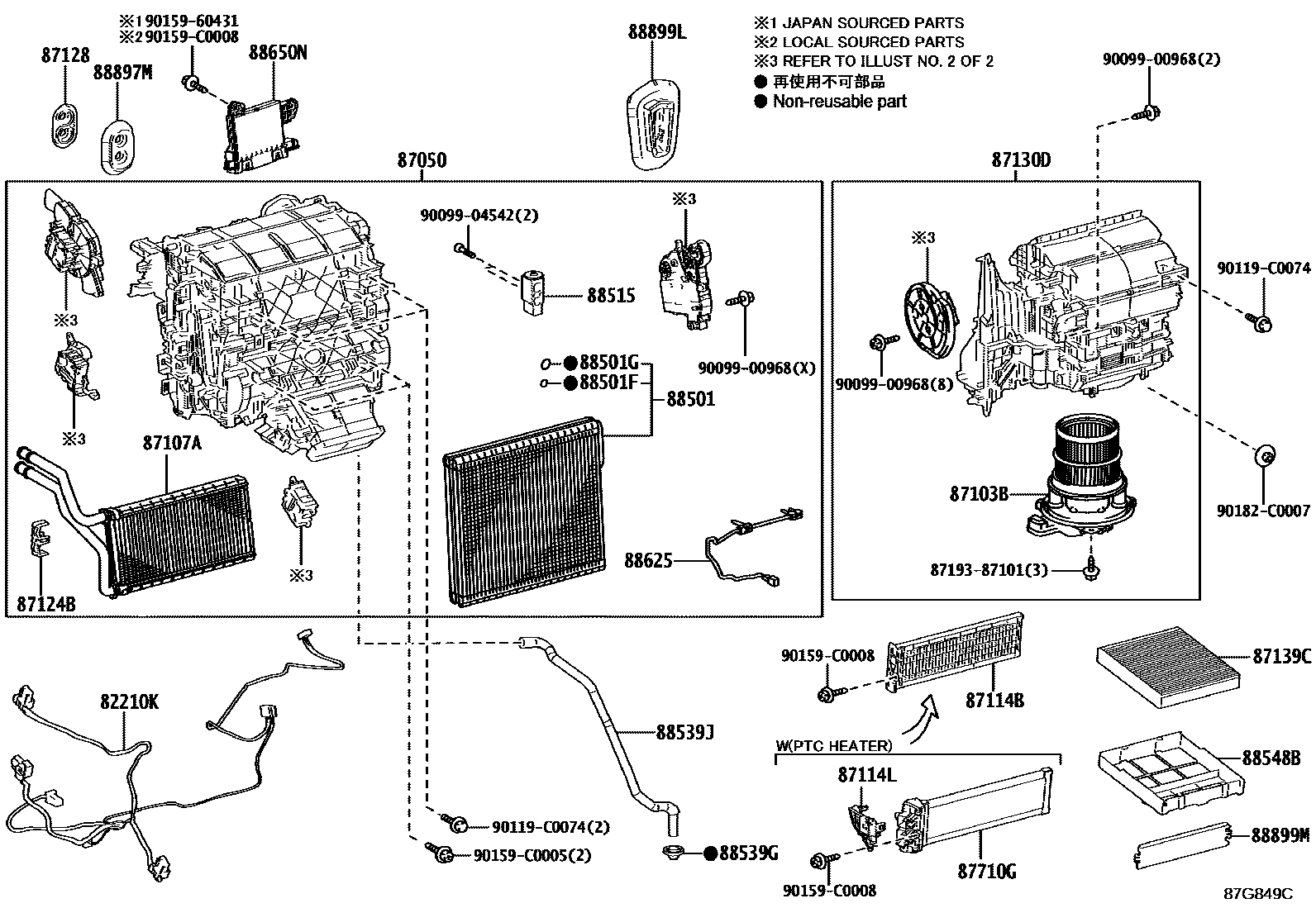

Toyota CAMRY/HYBRID (CHINA) — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87114LCOVER, HEATER, NO.2
87124BCLAMP, HEATER
87128GROMMET, HEATER
(L)
(J)
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
STANDARD,OE PART
STANDARD,OE PART
DEODORANT FILTER
DEODORANT FILTER
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
ID=10.8,OD=15.6
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
VALUE PACKAGE
VALUE PACKAGE
WITHOUT(CLEARANCE & BACK SONER)
WITHOUT(CLEARANCE & BACK SONER)
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
9009900968
main90099-00968
9009904542
90119C0074
main90119-C0074
9015960431
90159C0005
main90159-C0005
90159C0008
main90159-C0008
90182C0007
main90182-C0007
31 parts on this diagram · 2 diagrams in section
