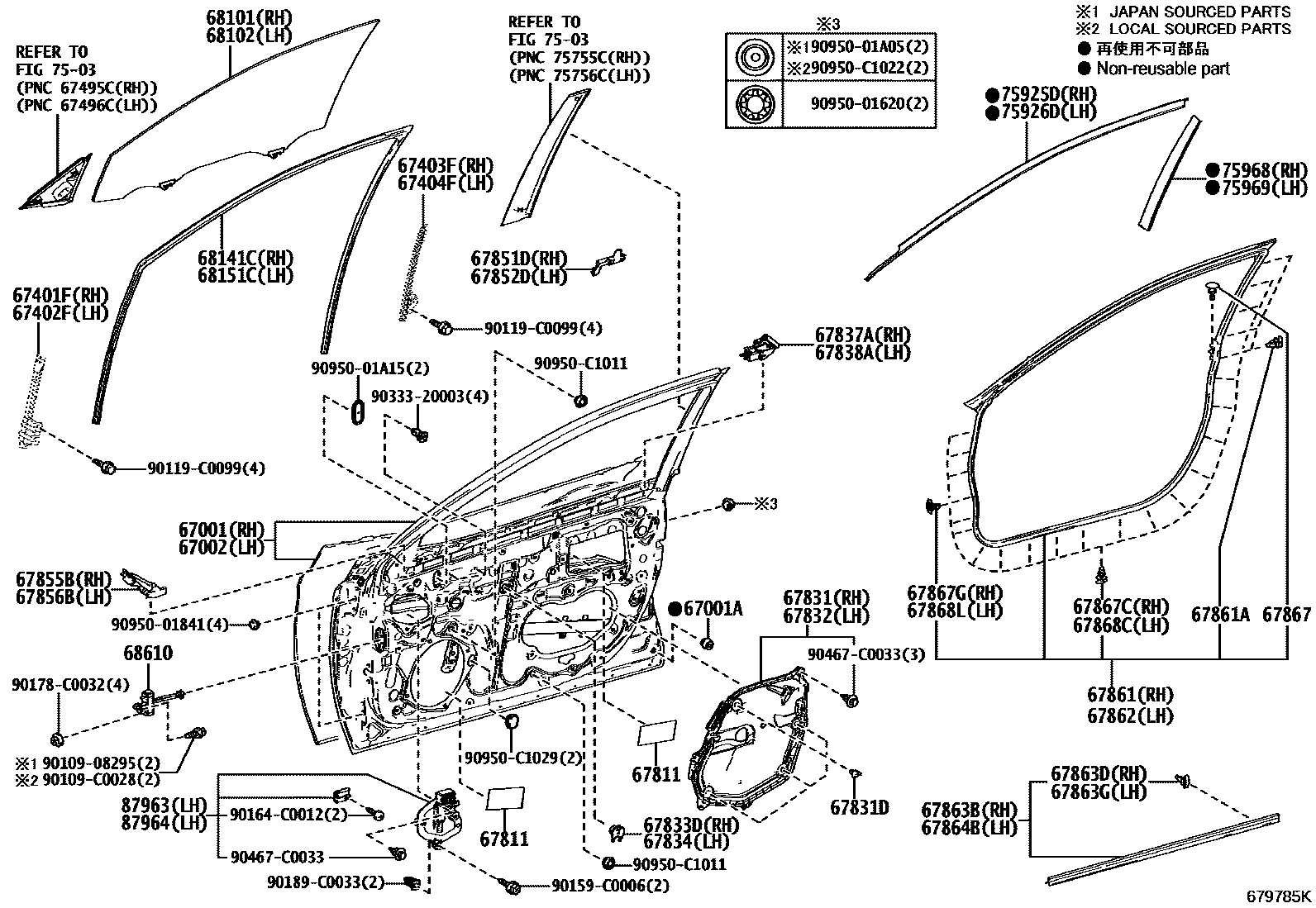

Toyota CAMRY/HYBRID (CHINA) — FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
COLOR = YELLOW
COLOR = NATURAL
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
(J)
(J)
(J)
(L)
(L)
(L)
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
(J)
(J)
(J)
(L)
(L)
(L)
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67851DSEAL, FRONT DOOR REAR OUTSIDE, RH
67852DSEAL, FRONT DOOR REAR OUTSIDE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867CLIP, DOOR WEATHERSTRIP
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
sub68101-06371
sub68101-06371
sub68101-06371
WITHOUT(CLEARANCE & BACK SONER)
sub68101-06381
sub68101-06381
sub68101-06381
68102GLASS SUB-ASSY, FRONT DOOR, LH
sub68102-06371
sub68102-06371
sub68102-06371
WITHOUT(CLEARANCE & BACK SONER)
sub68102-06381
sub68102-06381
sub68102-06381
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
7503
75925DTAPE, BLACK OUT, INNER FRONT RH
75926DTAPE, BLACK OUT, INNER FRONT LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
9010908295
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90159C0006
main90159-C0006
90164C0012
main90164-C0012
90178C0032
main90178-C0032
90189C0033
main90189-C0033
9033320003
90467C0033
main90467-C0033
9095001620
9095001841
9095001A05
9095001A15
90950C1011
main90950-C1011
90950C1022
main90950-C1022
90950C1029
main90950-C1029
59 parts on this diagram · 2 diagrams in section
