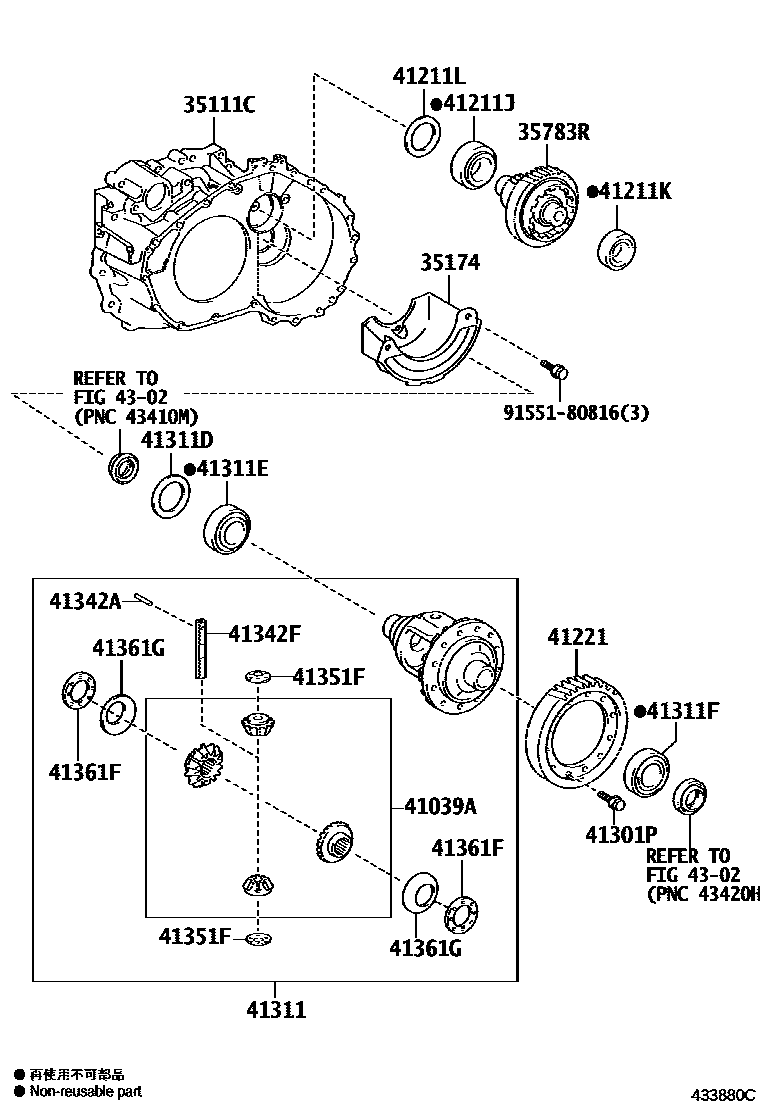

Toyota CAMRY/HYBRID (CHINA) — FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
35174SEPARATOR, TRANSAXLE HOUSING OIL
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
41039AGEAR KIT, DIFFERENTIAL
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
T=1.10,MARK 50,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.10,MARK 50,AISIN AW:REFER 35-01
T=1.10,MARK 50,TOYOTA:REFER 35-01
T=1.13,MARK 51,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.13,MARK 51,TOYOTA:REFER 35-01
T=1.13,MARK 51,AISIN AW:REFER 35-01
T=1.16,MARK 52,TOYOTA:REFER 35-01
T=1.16,MARK 52,AISIN AW:REFER 35-01
T=1.16,MARK 52,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.19,MARK 53,TOYOTA:REFER 35-01
T=1.19,MARK 53,AISIN AW:REFER 35-01
T=1.19,MARK 53,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.22,MARK 54,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.22,MARK 54,AISIN AW:REFER 35-01
T=1.22,MARK 54,TOYOTA:REFER 35-01
T=1.25,MARK 55,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.25,MARK 55,AISIN AW:REFER 35-01
T=1.25,MARK 55,TOYOTA:REFER 35-01
T=1.28,MARK 56,TOYOTA:REFER 35-01
T=1.28,MARK 56,AISIN AW:REFER 35-01
T=1.28,MARK 56,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.31,MARK 57,TOYOTA:REFER 35-01
T=1.31,MARK 57,AISIN AW:REFER 35-01
T=1.31,MARK 57,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.34,MARK 58,TOYOTA:REFER 35-01
T=1.34,MARK 58,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.34,MARK 58,AISIN AW:REFER 35-01
T=1.37,MARK 59,TOYOTA:REFER 35-01
T=1.37,MARK 59,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.37,MARK 59,AISIN AW:REFER 35-01
T=1.40,MARK 60,AISIN AW:REFER 35-01
T=1.40,MARK 60,TOYOTA:REFER 35-01
T=1.40,MARK 60,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.43,MARK 61,AISIN AW:REFER 35-01
T=1.43,MARK 61,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.43,MARK 61,TOYOTA:REFER 35-01
T=1.46,MARK 62,AISIN AW:REFER 35-01
T=1.46,MARK 62,TOYOTA:REFER 35-01
T=1.46,MARK 62,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.49,MARK 63,TOYOTA:REFER 35-01
T=1.49,MARK 63,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.49,MARK 63,AISIN AW:REFER 35-01
T=1.52,MARK 64,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.52,MARK 64,AISIN AW:REFER 35-01
T=1.52,MARK 64,TOYOTA:REFER 35-01
T=1.55,MARK 65,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.55,MARK 65,TOYOTA:REFER 35-01
T=1.55,MARK 65,AISIN AW:REFER 35-01
T=1.58,MARK 66,TOYOTA:REFER 35-01
T=1.58,MARK 66,AISIN AW:REFER 35-01
T=1.58,MARK 66,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.61,MARK 67,AISIN AW:REFER 35-01
T=1.61,MARK 67,TOYOTA:REFER 35-01
T=1.61,MARK 67,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.64,MARK 68,TOYOTA:REFER 35-01
T=1.64,MARK 68,AISIN AW:REFER 35-01
T=1.64,MARK 68,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.67,MARK 69,TOYOTA:REFER 35-01
T=1.67,MARK 69,AISIN AW:REFER 35-01
T=1.67,MARK 69,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.70,MARK 70,AISIN AW:REFER 35-01
T=1.70,MARK 70,TOYOTA:REFER 35-01
T=1.70,MARK 70,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.73,MARK 71,TOYOTA:REFER 35-01
T=1.73,MARK 71,AISIN AW:REFER 35-01
T=1.73,MARK 71,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.76,MARK 72,AISIN AW:REFER 35-01
T=1.76,MARK 72,TOYOTA:REFER 35-01
T=1.76,MARK 72,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.79,MARK 73,AISIN AW:REFER 35-01
T=1.79,MARK 73,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.79,MARK 73,TOYOTA:REFER 35-01
T=1.82,MARK 74,TOYOTA:REFER 35-01
T=1.82,MARK 74,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.82,MARK 74,AISIN AW:REFER 35-01
T=1.85,MARK 75,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.85,MARK 75,TOYOTA:REFER 35-01
T=1.85,MARK 75,AISIN AW:REFER 35-01
T=1.88,MARK 76,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.88,MARK 76,TOYOTA:REFER 35-01
T=1.88,MARK 76,AISIN AW:REFER 35-01
T=1.91,MARK 77,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.91,MARK 77,TOYOTA:REFER 35-01
T=1.91,MARK 77,AISIN AW:REFER 35-01
T=1.94,MARK 78,TOYOTA:REFER 35-01
T=1.94,MARK 78,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=1.94,MARK 78,AISIN AW:REFER 35-01
T=1.97,MARK 79,TOYOTA:REFER 35-01
T=1.97,MARK 79,AISIN AW:REFER 35-01
T=1.97,MARK 79,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
T=2.00,MARK 80,TOYOTA:REFER 35-01
T=2.00,MARK 80,AISIN AW:REFER 35-01
T=2.00,MARK 80,TOYOTA:REFER 35-01,AISIN AW:REFER 35-01
41221GEAR, FRONT DIFFERENTIAL RING
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
*228,NO.1
*229,NO.1
*229,NO.1,*228,NO.1
*228,NO.2
*229,NO.2,*228,NO.2
*229,NO.2
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*229,NO.1,*228,NO.1
*229,NO.2,*228,NO.2
*229,NO.2,*228,NO.2
*229,NO.1,*228,NO.1
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.90
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.25
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
4302
9155180816
20 parts on this diagram · 3 diagrams in section
