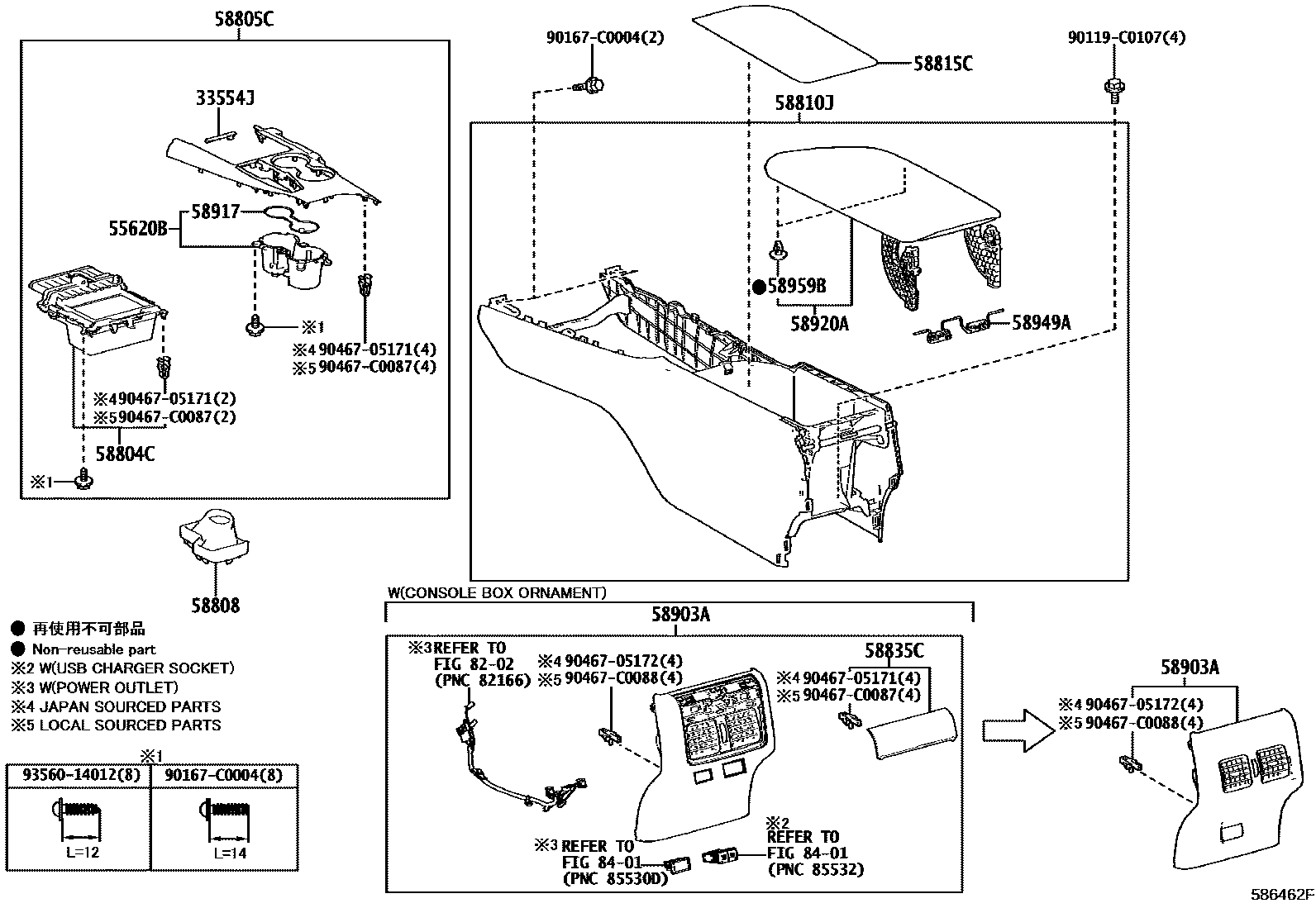

Toyota CAMRY/HYBRID (CHINA) — CONSOLE BOX & BRACKET

33554JCOVER, SHIFT LOCK RELEASE BUTTON

main33554-06090iASV71201712-202103

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-06530iAXVA70,AXVH71,MXVA71201712-202103

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-06460iAXVA70,AXVH71,MXVA71201712-202103

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06770iAXVA70,AXVH71,MXVA71..S201712-202103

main58805-06A70iASV71..E201712-202103

main58805-06A90-B0iAXVH71..G201712-202103

HYBRID ONYX,TRIM2#,4#

main58805-06D20-E1iAXVA70,MXVA71..G201712-202103

TIGER EYE,TRIM2#,4#

main58805-06E80iAXVA70,AXVH71,MXVA71..G202103

main58805-06E90iAXVA70,AXVH71,MXVA71..S202103

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-06060-C0iASV71..E,G201712-201902

BLACK,TRIM2#

main58808-06060-C0iASV71..E,G201712-201903

BLACK,TRIM2#,4#

main58808-06060-C0iAXVA70..S201712-201903

BLACK,TRIM2#,3#

main58808-06061-C0iAXVA70,AXVH71,MXVA71..S201903-202103

BLACK,TRIM2#,4#

main58808-06061-C0iAXVA70,AXVH71,MXVA71..S201903-202103

BLACK,TRIM2#,3#

main58808-06061-C0iAXVA70,AXVH71,MXVA71..S201903-202103

BLACK,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-06800-A3iASV71..E,G201712-202103

FROMAGE/BLACK,TRIM4#

main58810-06800-A3iAXVA70,AXVH71,MXVA71..G202005-202103

FROMAGE/BLACK,TRIM40

main58810-06800-A4iAXVH71,MXVA71..E202103

NEUTRAL BEIGE/BLACK,TRIM40

main58810-06800-A4iAXVH71,MXVA71..E202103

NEUTRAL BEIGE/BLACK,TRIM4#

main58810-06800-C1iAXVA70,AXVH71,MXVA71..E,G201712-202103

BLACK/CHOCOLATE BROWN,TRIM2#

main58810-06800-C1iMXVA71..S201903-202103

BLACK/CHOCOLATE BROWN,TRIM20

main58810-06800-C6iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK/SENSUAL RED/GRAY,TRIM3#

main58810-06800-C7iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK/GRAY,TRIM2#

main58810-06800-C7iMXVA71..S201903-202103

BLACK/GRAY,TRIM20

main58810-06800-C8iAXVA70,AXVH71,MXVA71..G202005-202103

BLACK/OCHER,TRIM41

58815CCARPET, CONSOLE BOX

main58815-06200iASV71201712-202103

58835CORNAMENT, CONSOLE BOX

main58835-06090-B0iAXVH71..G201712-202103

HYBRID ONYX,TRIM2#,4#

main58835-06160iAXVA70,AXVH71,MXVA71..G202103

main58835-06170iAXVA70,AXVH71,MXVA71..S202103

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06420-A0iASV71..E,G201712-201903

FROMAGE,TRIM4#

main58903-06420-A1iAXVA70,MXVA71..G201903-202103

FROMAGE,TRIM40

main58903-06420-A1iAXVH71,MXVA71..E201903-202103

FROMAGE,TRIM4#

main58903-06420-C0iASV71201712-201903

BLACK,TRIM2#

main58903-06420-C0iAXVA70..S201712-201903

BLACK,TRIM2#,3#

main58903-06420-C1iAXVA70,MXVA71..G201903-202103

BLACK,TRIM2#,41

main58903-06420-C1iAXVA70,AXVH71,MXVA71..S201903-202103

BLACK,TRIM2#,3#

main58903-06480-A0iAXVA70,AXVH71,MXVA71..G202103

FROMAGE,TRIM40

main58903-06480-C0iAXVA70,AXVH71,MXVA71..G202103

BLACK,TRIM2#,41

main58903-06530-A0iAXVH71..G201712-201903

FROMAGE,TRIM4#

main58903-06530-A1iAXVH71..G201903-202103

FROMAGE,TRIM40

main58903-06530-C0iAXVH71..G201712-201903

BLACK,TRIM2#

main58903-06530-C1iAXVH71..G201903-202103

BLACK,TRIM2#,41

main58903-06600-C0iAXVA70,AXVH71,MXVA71..S202103

BLACK,TRIM2#,3#

58917MAT, BOX BOTTOM, NO.2

main58917-06150iASV71201712-202103

58920AARMREST ASSY, REAR CONSOLE

main58920-06130-A2iAXVA70,AXVH71,MXVA71..G201712-202103

FROMAGE/BLACK/IVORY,TRIM4#

main58920-06130-A2iAXVA70,AXVH71,MXVA71..G202005-202103

FROMAGE/BLACK/IVORY,TRIM40

main58920-06130-C3iMXVA71..S201903-202103

BLACK/GRAY,TRIM20

main58920-06130-C3iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK/GRAY,TRIM2#

main58920-06130-C4iASV71..G,S201712-202103

BLACK/CHOCOLATE BROWN,TRIM2#

main58920-06130-C4iMXVA71..S201903-202103

BLACK/CHOCOLATE BROWN,TRIM20

main58920-06130-D2iAXVA70,AXVH71,MXVA71..S201712-202103

SENSUAL RED/BLACK/GRAY,TRIM3#

main58920-06130-E0iAXVA70,AXVH71,MXVA71..G202005-202103

OCHER/BLACK,TRIM41

main58920-06130-E1iAXVA70,AXVH71,MXVA71..G202103

NEUTRAL BEIGE/BLACK,TRIM40

main58920-06130-E1iAXVH71,MXVA71..E202103

NEUTRAL BEIGE/BLACK,TRIM4#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-06030iAXVA70,AXVH71,MXVA71201712-202103

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010iAXVA70,AXVH71,MXVA71¥100201712-202102

8202

8401

90119C0107

main90119-C0107

90167C0004

main90167-C0004

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9356014012

main93560-14012¥70

22 parts on this diagram · 1 diagram in section
