Toyota CAMRY/HYBRID (ASIA) — V-BELT

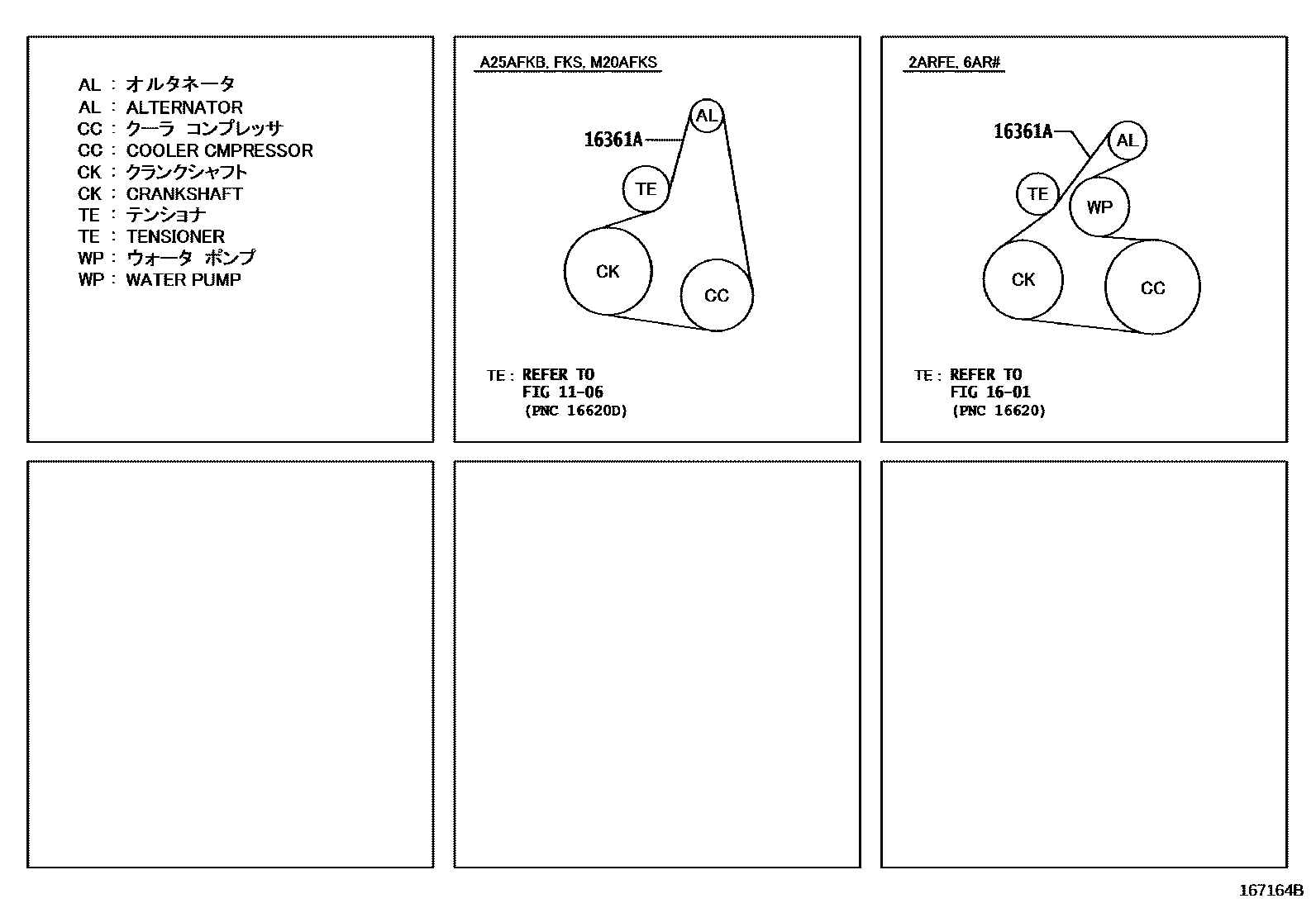

Parts diagram
1106
1601
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02735i¥4,360201810-201908
sub90916-02778¥4,360
main90916-02739i201810-202110
main90916-02748i201810-202110
sub90916-02731
main90916-02761i¥4,360202111-202302
main90916-02778i¥4,360201909-202110
main90916-02778i¥4,360202111
main90916-02788i¥4,360202303

3 parts on this diagram · 1 diagram in section
