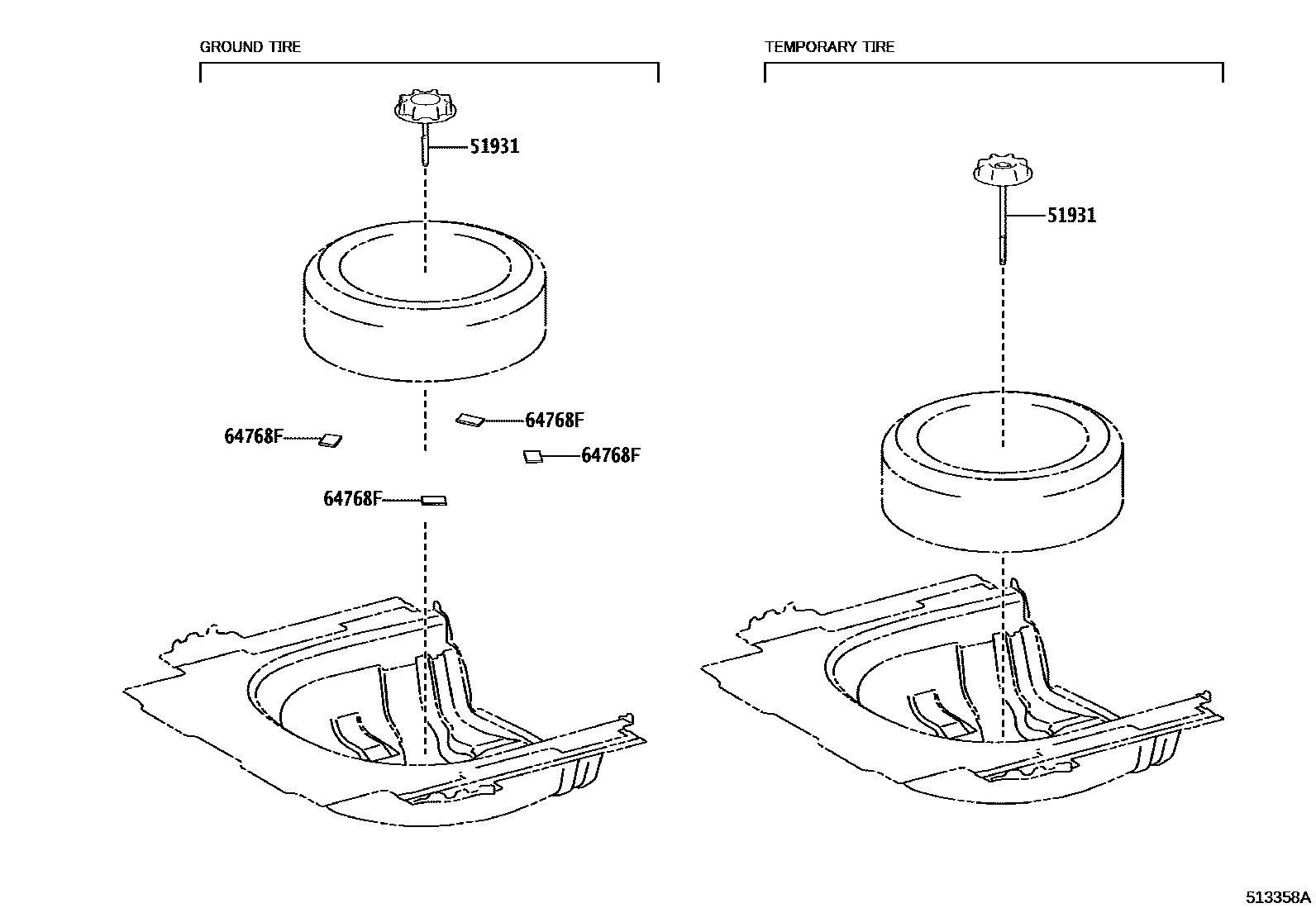

Toyota CAMRY/HYBRID (ASIA) — SPARE WHEEL CARRIER

51931CARRIER, SPARE WHEEL, NO.1

main51931-20040iAXVA70,AXVH71..RHD..(25E,25G,25V,HBDG,HBDV)¥380202111

main51931-22040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥1,020201810-202112

main51931-22040iAXVH71..LHD;AXVA70,AXVH71,MXVA71..20G,20Q,25,25Q,HBD¥1,020202111

INDONESIA SPEC

main51931-22040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥1,020201810-202110

64768FSTOPPER, JACK COVER

main64768-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main64768-06040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main64768-06040iAXVH71..LHD;AXVA70,AXVH71,MXVA71..20G,20Q,25,25Q,HBD202111

INDONESIA SPEC

2 parts on this diagram · 1 diagram in section
