Toyota CAMRY/HYBRID (ASIA) — PARTIAL ENGINE ASSEMBLY

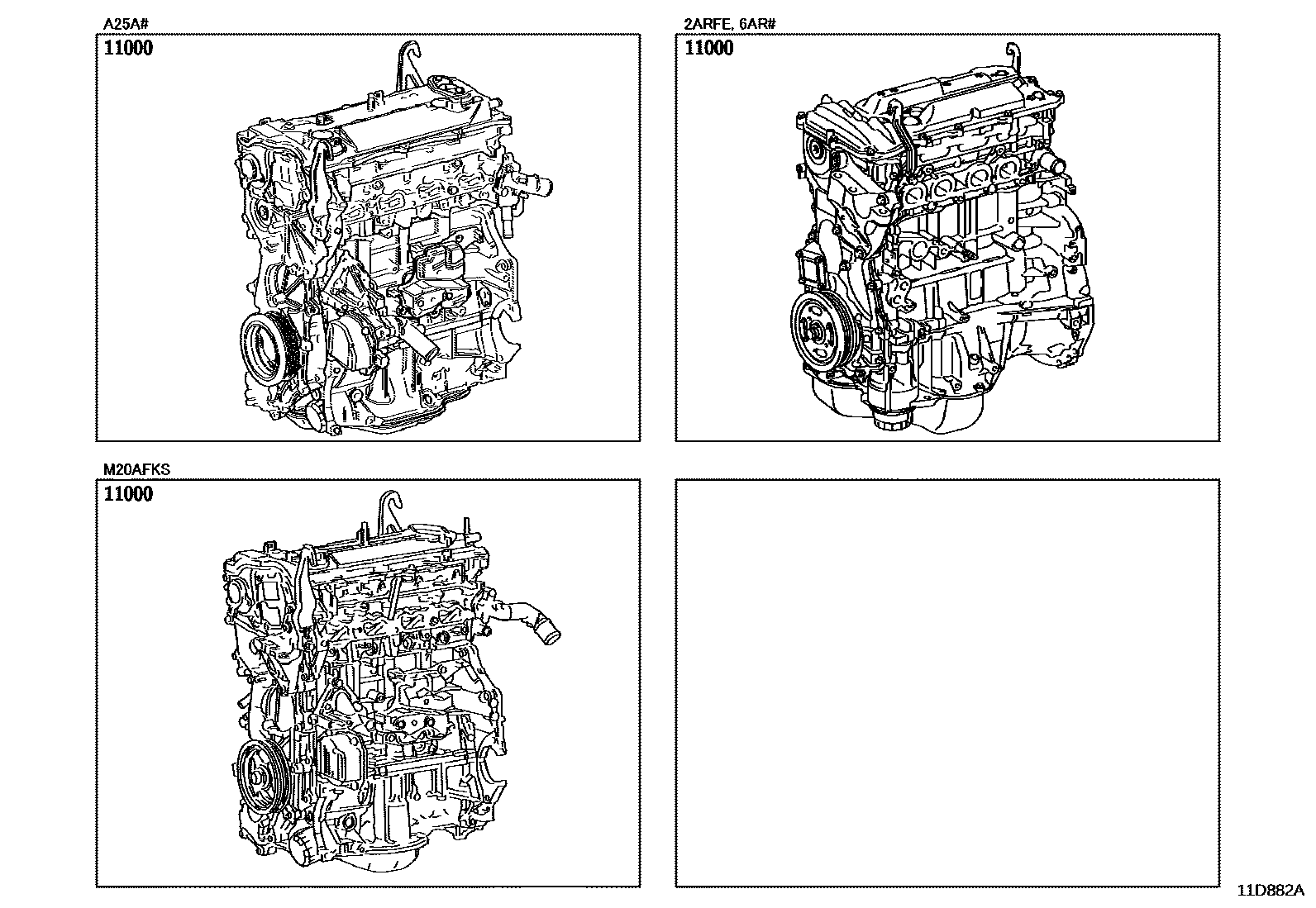

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0V270i201810-202110
main19000-0V290i201810-202110
main19000-24360i¥458,000202111
main19000-25140i201810-202110
sub19000-25220
sub83520-33010¥2,710
sub89429-12010¥3,380
main19000-25160i¥601,000201810-202110
sub19000-25240¥601,000
sub83520-33010¥2,710
sub89429-12010¥3,380
main19000-25180i201812-202112
sub19000-25260
sub83520-33010¥2,710
sub89429-12010¥3,380
sub90430-12031¥90
main19000-25210i201810-202110
main19000-25300i202111-202402
main19000-25310i202112
main19000-25330i202111
main19000-25350i¥546,000202111
main19000-2E030i202403
main19000-36560i201810-202110

1 parts on this diagram · 1 diagram in section
