Toyota CAMRY/HYBRID (ASIA) — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1AIR DUCT 0006 1AIR DUCT 0007 1AIR DUCT 0008 1AIR DUCT 0009 1SENSOR 0010 1SENSOR 0011 1SENSOR

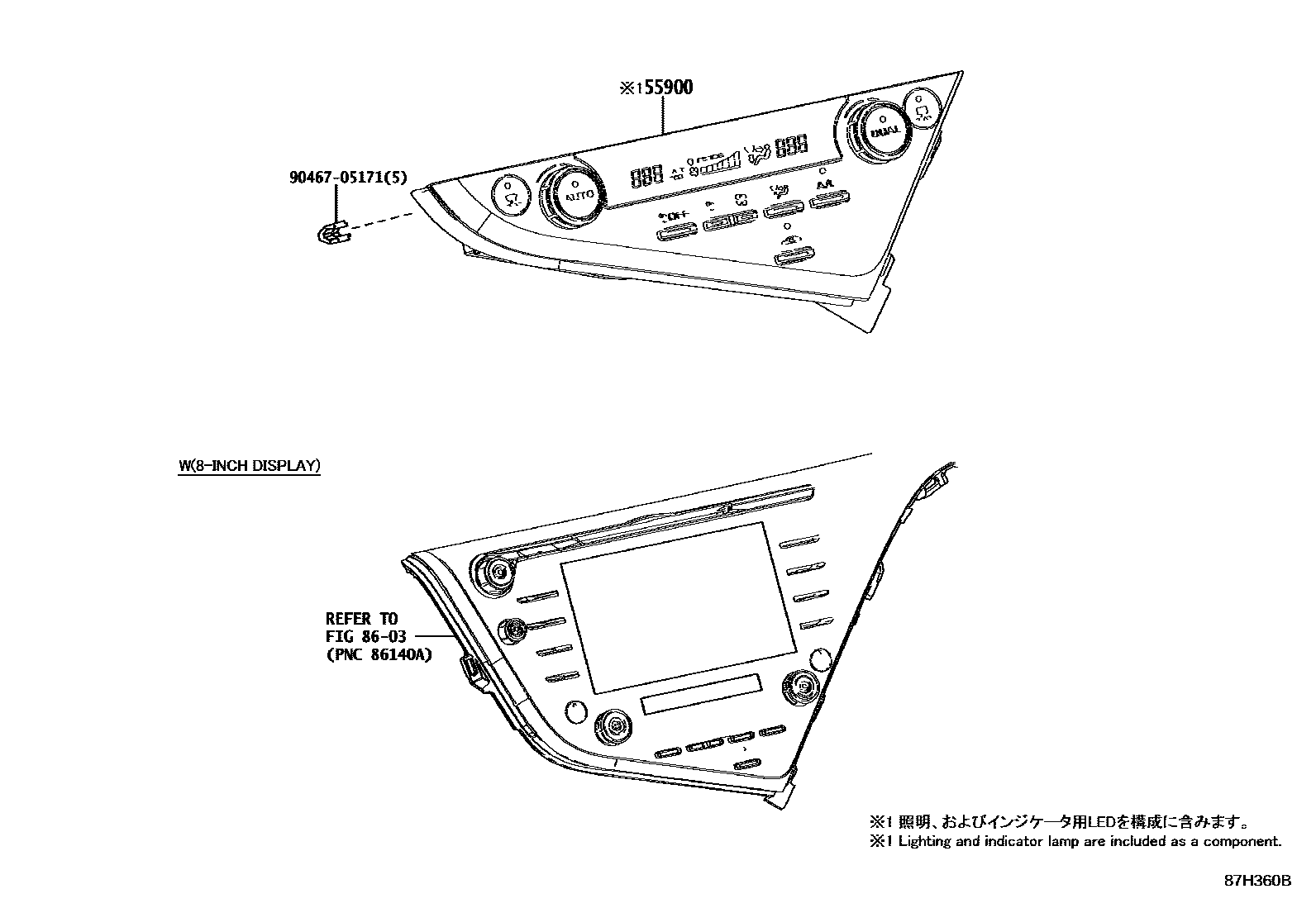

55900CONTROL ASSY, AIR CONDITIONER

main55900-06650iMXVA71..20G202111

main55900-06650iASV7#..LHD..(20G,25G)201810-202110

main55900-06660iASV7#,AXVA70,AXVH71..(20G,25,25G,25V,HBDG)..(IDN,TH)201810-202110

BRUNEI SPEC

main55900-06660iASV71..20201810-202110

SINGAPORE SPEC

main55900-06660iAXVA70,AXVH71..25,25E,25G,HBDG202111

main55900-06690iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main55900-06690iASV70..25V..PH201810-202110

main55900-06700iAXVA70,AXVH71..RHD..(25V,HBD,HBDV)202111

8603

9046705171

main90467-05171¥60

3 parts on this diagram · 11 diagrams in section
