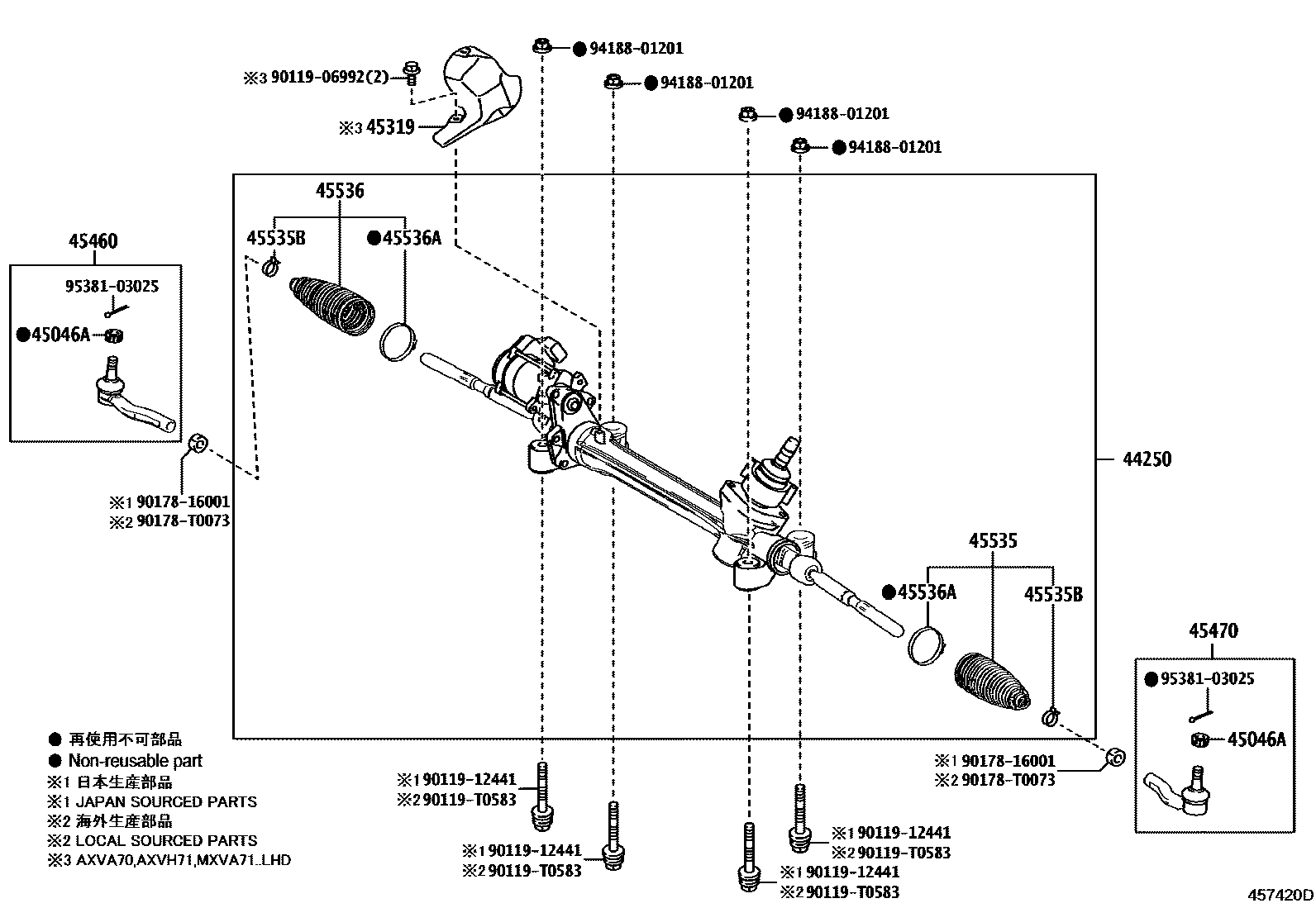

Toyota CAMRY/HYBRID (ASIA) — FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33610iASV7#..LHD..(20G,25G)201810-201911

sub44250-33611

main44250-33611iASV7#..LHD..(20G,25G)201912-202110

main44250-33612iMXVA71..20G202111

main44250-33620iASV70..LHD..(25Q,25V)201810-201911

sub44250-33621

main44250-33621iASV70..LHD..(25Q,25V)201912-202110

main44250-33622iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main44250-33640iASV71..RHD;ASV70,AXVH71..(25G,25V,HBDG,HBDV)..(IDN,TH)¥154,000201810-201911

sub44250-33641¥128,000

main44250-33641iASV71..RHD;ASV70,AXVH71..(25G,25V,HBDG,HBDV)..(IDN,TH)¥128,000201912-202110

main44250-33642iAXVA70..25E¥128,000202111

main44250-33650iASV70..25V..IDN¥154,000201810-201911

BRUNEI SPEC

sub44250-33651¥128,000

main44250-33651iASV70..25V..IDN¥128,000201912-202110

BRUNEI SPEC

main44250-33651iAXVA70,AXVH71..(25,25G,HBD)..(IND,TH)¥128,000201912-202112

main44250-33652iAXVA70,AXVH71..RHD..(25,25G,25V,HBD,HBDG,HBDV)¥128,000202111

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0004iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main90171-T0004iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main90171-T0004iAXVA70,AXVH71,MXVA71202111

45319INSULATOR, STEERING GEAR HEAT

main45319-33010iAXVA70,AXVH71,MXVA71..LHD202111

main45319-33030iAXVA70,AXVH71..RHD¥280202111

main45319-33030iAXVH71..IDN¥280201810-202110

main45319-33030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥280201810-202112

45460ROD ASSY, TIE, RH

main45460-09320iAXVA70,AXVH71,MXVA71..TH202111

main45460-09320iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

main45460-80008iAXVH71..IND¥2,930201812-202112

main45460-80008iAXVH71..IND¥2,930202112

45470ROD ASSY, TIE, LH

main45470-09200iASV7#,AXVA70,AXVH71..IDN,MA,PH,TH,VN201810-202110

main45470-09200iAXVA70,AXVH71,MXVA71..TH202111

main45470-39365iAXVH71..IND¥2,930202112

main45470-39365iAXVH71..IND¥2,930201812-202112

45535BOOT, STEERING RACK, NO.1

main45535-29025iAXVA70,AXVH71,MXVA71¥790202111

main45535-29025iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥790201810-202110

main45535-29025iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥790201810-202112

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥180201810-202110

main90467-19021iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥180201810-202112

main90467-19021iAXVA70,AXVH71,MXVA71¥180202111

45536BOOT, STEERING RACK, NO.2

main45535-29025iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥790201810-202110

main45535-29025iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥790201810-202112

main45535-29025iAXVA70,AXVH71,MXVA71¥790202111

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-06030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥220201810-202110

main45538-06030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥220201810-202112

main45538-06030iAXVA70,AXVH71,MXVA71¥220202111

9011906992

main90119-06992¥60

9011912441

main90119-12441¥360

90119T0583

main90119-T0583

9017816001

main90178-16001¥120

90178T0073

main90178-T0073

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

16 parts on this diagram · 2 diagrams in section
