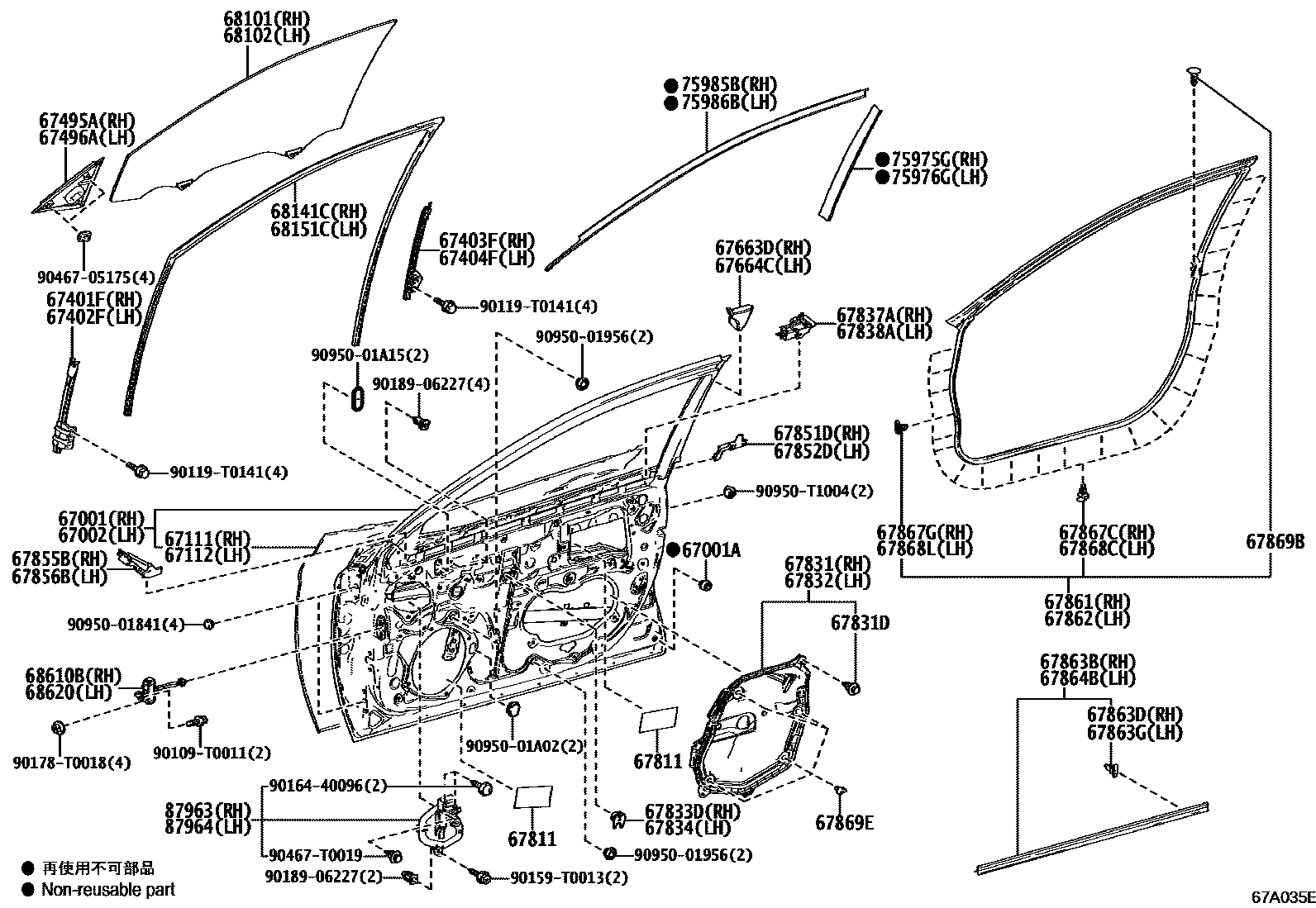

Toyota CAMRY/HYBRID (ASIA) — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06340iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

sub67001-06341

main67001-06340iAXVA70,AXVH71,MXVA71202111-202408

sub67001-06341

main67001-06340iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

sub67001-06341

main67001-06341iAXVA70,AXVH71,MXVA71202409

67001ACUSHION, FRONT DOOR PANEL

main90541-09143iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥100201810-202110

main90541-09143iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥100201810-202112

main90541-09143iAXVA70,AXVH71,MXVA71¥100202111

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06310iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

sub67002-06311

main67002-06310iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

sub67002-06311

main67002-06310iAXVA70,AXVH71,MXVA71202111-202408

sub67002-06311

main67002-06311iAXVA70,AXVH71,MXVA71202409

67111PANEL, FRONT DOOR, OUTER RH

main67111-06240iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67111-06240iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67111-06240iAXVA70,AXVH71,MXVA71202111

67112PANEL, FRONT DOOR, OUTER LH

main67112-06240iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67112-06240iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67112-06240iAXVA70,AXVH71,MXVA71202111

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06190iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67401-06190iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67401-06190iAXVA70,AXVH71,MXVA71202111

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06190iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67402-06190iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67402-06190iAXVA70,AXVH71,MXVA71202111

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06170iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67403-06170iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67403-06170iAXVA70,AXVH71,MXVA71202111

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06170iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67404-06170iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67404-06170iAXVA70,AXVH71,MXVA71202111

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-06050iASV7#,AXVA70,AXVH71201810-202006

main67495-06051iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202007-202110

main67495-06051iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202007-202112

main67495-06051iAXVA70,AXVH71,MXVA71202111

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-06050iASV7#,AXVA70,AXVH71201810-202006

main67496-06051iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202007-202110

main67496-06051iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202007-202112

main67496-06051iAXVA70,AXVH71,MXVA71202111

67663DGARNISH, DOOR FRAME, RH

main67663-06160iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67663-06160iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67663-06160iAXVA70,AXVH71,MXVA71202111

67664CGARNISH, DOOR FRAME, LH

main67664-06160iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67664-06160iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67664-06160iAXVA70,AXVH71,MXVA71202111

67811PAD, FRONT DOOR SILENCER

main67811-0D010iAXVA70,AXVH71,MXVA71202111

main67811-0D010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202104-202110

main67811-0D010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202104-202112

main67811-33040iASV7#,AXVA70,AXVH71¥550201810-202104

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06230iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67831-06230iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67831-06230iAXVA70,AXVH71,MXVA71202111

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-T0019iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main90467-T0019iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main90467-T0019iAXVA70,AXVH71,MXVA71202111

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06230iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67832-06230iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67832-06230iAXVA70,AXVH71,MXVA71202111

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-47010iAXVA70,AXVH71,MXVA71¥200202111

main67833-47010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥200201810-202110

main67833-47010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥200201810-202112

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-47010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥200201810-202110

main67833-47010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥200201810-202112

main67833-47010iAXVA70,AXVH71,MXVA71¥200202111

67837ASEAL, FRONT DOOR VENT, RH

main67837-06060iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67837-06060iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67837-06060iAXVA70,AXVH71,MXVA71202111

67838ASEAL, FRONT DOOR VENT, LH

main67838-06050iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67838-06050iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67838-06050iAXVA70,AXVH71,MXVA71202111

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67851-06040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67851-06040iAXVA70,AXVH71,MXVA71202111

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67852-06040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67852-06040iAXVA70,AXVH71,MXVA71202111

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67855-06040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67855-06040iAXVA70,AXVH71,MXVA71202111

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67856-06040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67856-06040iAXVA70,AXVH71,MXVA71202111

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06210iASV7#,AXVA70,AXVH71201810-202007

sub67861-06211

main67861-06211iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202008-202110

main67861-06211iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202008-202112

main67861-06211iAXVA70,AXVH71,MXVA71202111

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06210iASV7#,AXVA70,AXVH71201810-202007

sub67862-06211

main67862-06211iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)202008-202110

main67862-06211iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)202008-202112

main67862-06211iAXVA70,AXVH71,MXVA71202111

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67863-06140iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67863-06140iAXVA70,AXVH71,MXVA71202111

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D060iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67867-0D060iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67867-0D060iAXVA70,AXVH71,MXVA71202111

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D060iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67867-0D060iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67867-0D060iAXVA70,AXVH71,MXVA71202111

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67863-06140iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67863-06140iAXVA70,AXVH71,MXVA71202111

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥100201810-202110

main67867-12150iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥100201810-202112

main67867-12150iAXVA70,AXVH71,MXVA71¥100202111

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-0D040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67867-0D040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67867-0D040iAXVA70,AXVH71,MXVA71202111

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥100201810-202110

main67867-12150iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥100201810-202112

main67867-12150iAXVA70,AXVH71,MXVA71¥100202111

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-0D040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main67867-0D040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main67867-0D040iAXVA70,AXVH71,MXVA71202111

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥190201810-202110

main67868-30030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥190201810-202112

main67868-30030iAXVA70,AXVH71,MXVA71¥190202111

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥140201810-202110

main67869-47010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥140201810-202112

main67869-47010iAXVA70,AXVH71,MXVA71¥140202111

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06410iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main68101-06410iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main68101-06440iAXVA70,AXVH71,MXVA71..TH202111

main68101-06450iAXVH71..IND202112

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06410iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main68102-06410iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main68102-06440iAXVA70,AXVH71,MXVA71..TH202111

main68102-06450iAXVH71..IND202112

68141CRUN, FRONT DOOR GLASS, RH

main68141-06230iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main68141-06230iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main68141-06230iAXVA70,AXVH71,MXVA71202111

68151CRUN, FRONT DOOR GLASS, LH

main68151-06220iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main68151-06220iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main68151-06220iAXVA70,AXVH71,MXVA71202111

68610BCHECK ASSY, FRONT DOOR, RH

main68610-06180iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main68610-06180iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main68610-06180iAXVA70,AXVH71,MXVA71202111

68620CHECK ASSY, FRONT DOOR, LH

main68610-06180iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main68610-06180iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main68610-06180iAXVA70,AXVH71,MXVA71202111

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main75975-06140iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main75975-06140iAXVA70,AXVH71,MXVA71202111

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main75976-06140iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main75976-06140iAXVA70,AXVH71,MXVA71202111

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main75985-06140iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main75985-06140iAXVA70,AXVH71,MXVA71202111

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-06140iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main75986-06140iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main75986-06140iAXVA70,AXVH71,MXVA71202111

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-06030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main87963-06030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main87963-06030iAXVA70,AXVH71,MXVA71202111

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-06030iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main87964-06030iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main87964-06030iAXVA70,AXVH71,MXVA71202111

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90159T0013

main90159-T0013

9016440096

main90164-40096¥70

90178T0018

main90178-T0018¥70

9018906227

main90189-06227¥70

9046705175

main90467-05175¥80

90467T0019

main90467-T0019

9095001841

main90950-01841¥110

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

9095001A15

main90950-01A15¥120

90950T1004

main90950-T1004

62 parts on this diagram · 2 diagrams in section
