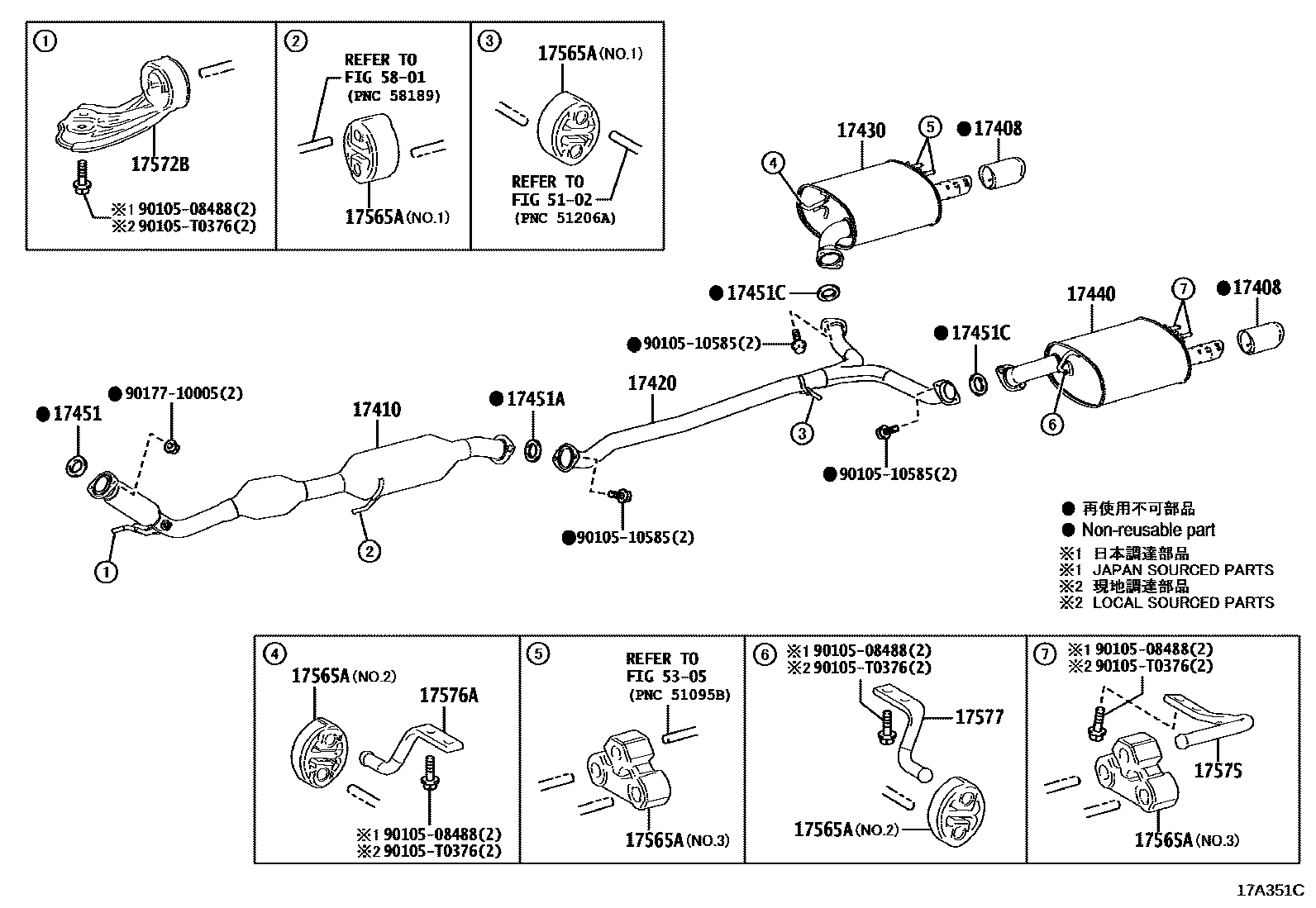

Toyota CAMRY/HYBRID (ASIA) — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31080iA25AFKB,A25AFKS,2ARFE..ASV70,AXVA70¥4,060201810-202110

main17408-31080iA25AFXS..AXVH71..RHD..(IND,TH)¥4,060201810-202112

main17408-31080iA25AFXS,M20AFKS..AXVH71,MXVA71..IND,TH¥4,060202111

17410PIPE ASSY, EXHAUST, FRONT

main17410-0V510i2ARFE..ASV70201810-202110

main17410-0V530i6AR#..ASV71201810-202110

main17410-F0050iA25AFXS..AXVH71..IND201812-201909

sub17410-F0051

main17410-F0051iA25AFXS..AXVH71..IND202112

main17410-F0051iA25AFXS..AXVH71..IND201910-202112

main17410-F0060iA25AFKB,A25AFKS..AXVA70201810-202110

main17410-F0060iA25AFKB,A25AFKS..AXVA70202111

main17410-F0090iA25AFXS..AXVH71..TH202111

main17410-F0090iA25AFXS..AXVH71..IDN,TH201810-202110

main17410-F2380iM20AFKS..MXVA71202111

17420PIPE ASSY, EXHAUST, CENTER

main17420-0V390i2ARFE..ASV70201810-202110

main17420-0V400i6AR#..ASV71201810-202110

main17420-F0030iA25AFXS..AXVH71..IND202112

main17420-F0030iA25AFXS..AXVH71..IND201812-202112

main17420-F0040iA25AFKB,A25AFKS..AXVA70201810-202110

main17420-F0040iA25AFKB,A25AFKS..AXVA70202111

main17420-F0060iA25AFXS..AXVH71..IDN,TH201810-202110

main17420-F0060iA25AFXS..AXVH71..TH202111

main17420-F2010iM20AFKS..MXVA71202111

17430PIPE ASSY, EXHAUST, TAIL

main17430-0V410i6AR#..ASV71201810-202110

main17430-0V410iM20AFKS..MXVA71202111

main17430-F0030iA25AFKB,A25AFKS..AXVA70202111

main17430-F0030iA25AFKB,A25AFKS,2ARFE..ASV70,AXVA70201810-202110

17440PIPE, EXHAUST TAIL, LH

main17440-F0030iA25AFXS..AXVH71..IND201812-202112

main17440-F0030iA25AFXS..AXVH71..IND202112

main17440-F0040iA25AFKB,A25AFKS..AXVA70202111

main17440-F0040iA25AFKB,A25AFKS,2ARFE..ASV70,AXVA70201810-202110

main17440-F0050iA25AFXS..AXVH71..TH202111

main17440-F0050iA25AFXS..AXVH71..IDN,TH201810-202110

17451GASKET, EXHAUST PIPE

main17451-75010i2ARFE,6AR#..ASV7#¥1,510201810-202110

sub17451-75011¥1,360

main90917-06066iA25AFXS..AXVH71..IDN¥350201810-202110

main90917-06066iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥350201810-202112

main90917-06066iA25#,M20AFKS..AXVA70,AXVH71,MXVA71¥350202111

17451AGASKET, EXHAUST PIPE, NO.2

main17451-31012i2ARFE,6AR#..ASV7#¥1,360201810-202110

main90917-06072iA25AFXS..AXVH71..IDN¥350201810-202110

main90917-06072iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥350201810-202112

main90917-06072iA25#,M20AFKS..AXVA70,AXVH71,MXVA71¥350202111

17451CGASKET, EXHAUST PIPE, NO.3

main90917-06078iA25AFXS,6AR#..ASV71,AXVH71..(20,20G,HBD)..(IDN,MA,TH,VN)¥340201810-202110

main90917-06078iA25AFXS..AXVH71..RHD..(IND,TH)¥340201810-202112

main90917-06078iA25AFXS,M20AFKS..AXVH71,MXVA71..IND,TH¥340202111

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P090iA25AFXS,6AR#..ASV71,AXVH71..(20,20G,HBD)..(IDN,MA,TH,VN)201810-202110

NO.2

main17565-0P090iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

NO.2

main17565-0P090iA25AFXS,M20AFKS..AXVH71,MXVA71..IND,TH202111

NO.2

main17565-0P110iA25AFXS..AXVH71202111

NO.1

main17565-0P110iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

NO.1

main17565-0P110iA25AFXS..AXVH71..IDN201810-202110

NO.1

main17566-F0030iA25AFXS,6AR#..ASV71,AXVH71..(20,20G,HBD)..(IDN,MA,TH,VN)201810-202110

NO.3

main17566-F0030iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

NO.3

main17566-F0030iA25AFXS,M20AFKS..AXVH71,MXVA71..IND,TH202111

NO.3

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-31150iA25AFXS,2ARFE,6AR#..ASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥1,270201810-202110

main17572-31150iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥1,270201810-202112

main17572-31150iA25#,M20AFKS..AXVA70,AXVH71,MXVA71¥1,270202111

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-31160iA25#..AXVA70,AXVH71¥660202409

(J)

main17575-F0020iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main17575-F0020iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN201810-202110

main17575-F0020iA25#..AXVA70,AXVH71202409

(L)

main17575-F0020iA25#..AXVA70,AXVH71202111-202409

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-F0020iA25AFKB,A25AFKS,2ARFE,6AR#..ASV7#,AXVA70201810-202110

main17576-F0020iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71202111

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-F0020iA25#..AXVA70,AXVH71202111

main17577-F0020iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main17577-F0020iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN201810-202110

5102

5305

5801

9010508488

main90105-08488¥80

9010510585

main90105-10585¥120

90105T0376

main90105-T0376

9017710005

main90177-10005¥80

20 parts on this diagram · 5 diagrams in section
