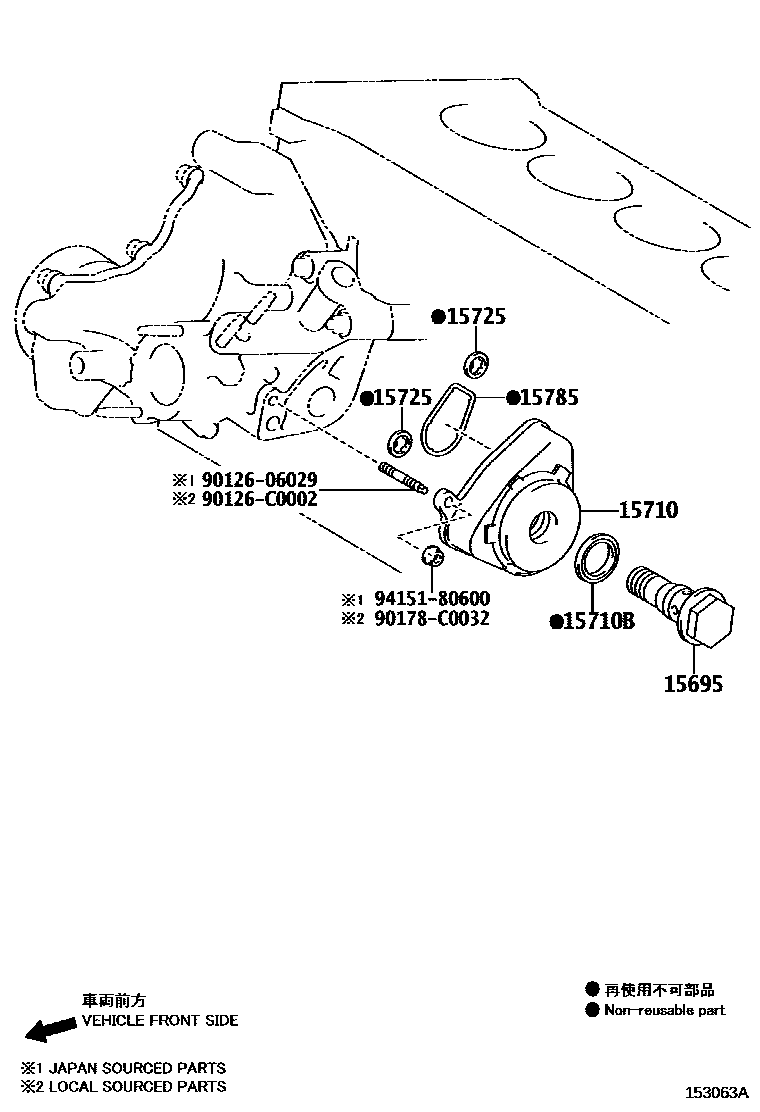

Toyota CAMRY/HYBRID (ASIA) — ENGINE OIL COOLER

0001 1 0002 1

15695BOLT, OIL COOLER UNION

main15695-62030i6AR#..ASV71¥1,170201810-202110

15710COOLER ASSY, OIL

main15710-25010iA25AFXS..AXVH71..IND¥28,900201812-202112

main15710-36010i6AR#..ASV71¥32,900201810-202110

15710BRING, O(FOR OIL COOLER)

main90210-22001i6AR#..ASV71201810-202110

15725GASKET, OIL COOLER COVER

main15725-36010i6AR#..ASV71¥380201810-202110

15785GASKET, OIL COOLER

main15785-25010iA25AFXS..AXVH71..IND¥340201812-202112

main15785-36010i6AR#..ASV71¥380201810-202110

9012606029

main90126-06029¥60

90126C0002

main90126-C0002

90178C0032

main90178-C0032

9415180600

main94151-80600¥60

9 parts on this diagram · 2 diagrams in section
