Toyota CAMRY/HYBRID (ASIA) — CYLINDER HEAD

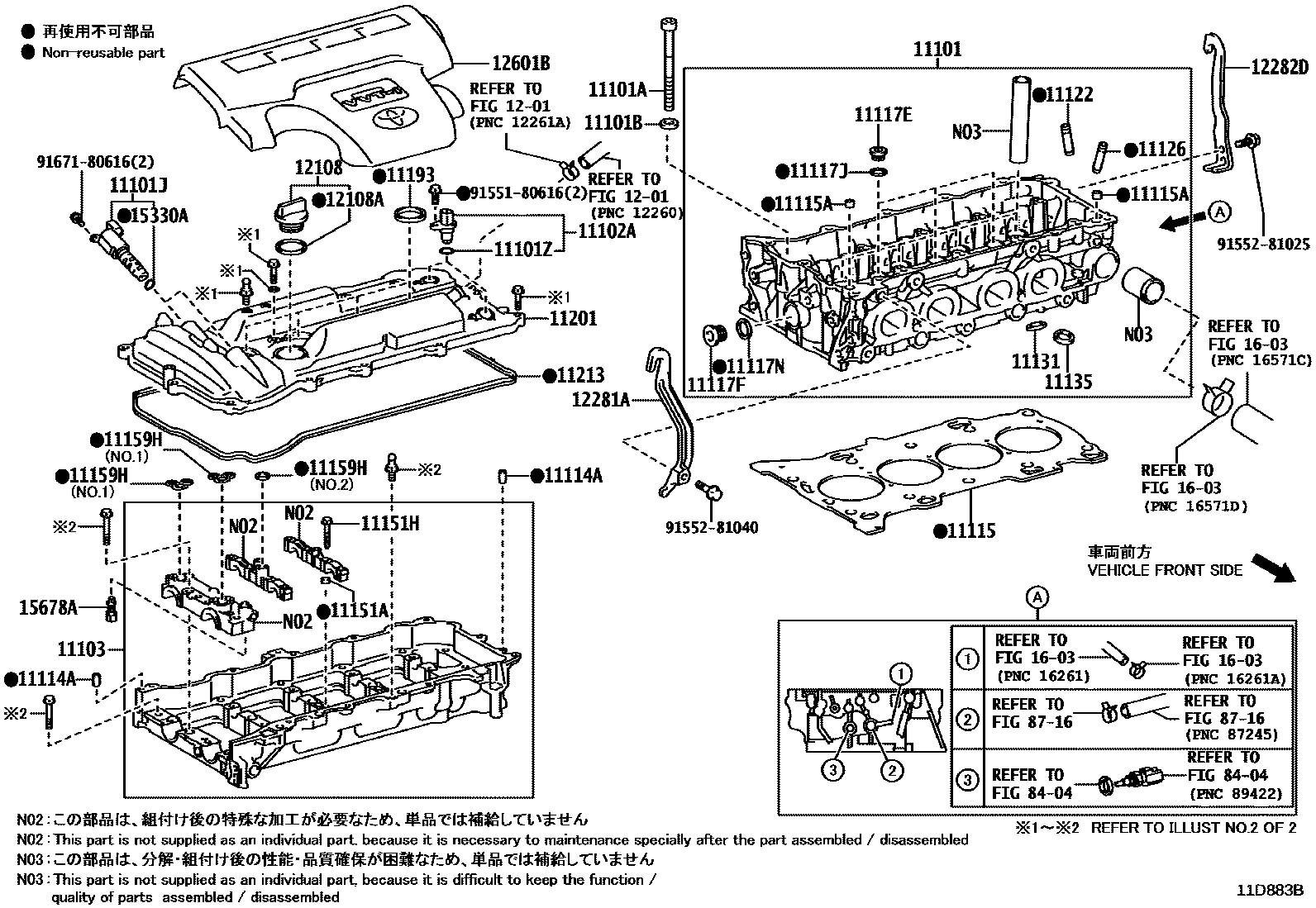

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

11101HEAD SUB-ASSY, CYLINDER

main11101-09560i6ARFSE..ASV71¥96,900201810-202110

main11101-09730i6ARFBS..ASV71201810-202110

main11101-29625iA25#..AXVA70,AXVH71¥134,000201810-202004

sub11101-29626¥112,000

main11101-29626iA25#..AXVA70,AXVH71¥112,000202004-202105

sub11101-29627¥101,000

main11101-29627iA25AFKS,A25AFXS..AXVA70,AXVH71¥101,000202111-202405

main11101-29627iA25AFXS..AXVH71..IDN¥101,000202105-202110

main11101-29627iA25AFKS,A25AFXS..AXVA70,AXVH71¥101,000202405

(J)

main11101-29627iA25AFKB..AXVA70¥101,000202111

main11101-29627iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥101,000202105-202112

main11101-29635iM20AFKS..MXVA71¥96,900202111-202211

sub11101-29636¥97,000

main11101-29636iM20AFKS..MXVA71¥97,000202212-202410

main11101-29637iM20AFKS..MXVA71¥88,100202410

main11101-39776i2ARFE..ASV70¥101,000201810-202110

main11101-F9130iA25AFKS,A25AFXS..AXVA70,AXVH71202405

(L)

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02164i6AR#..ASV71¥310201810-202110

(J)

main90910-02201iA25AFXS..AXVH71..IDN¥360201810-202110

NO.1:REFER ILLUST.

main90910-02201iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥360201810-202112

NO.1:REFER ILLUST.

main90910-02201iA25#..AXVA70,AXVH71¥360202111

NO.1:REFER ILLUST.

main90910-02202iM20AFKS..MXVA71¥310202111

NO.1:REFER ILLUST.

main90910-02202iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥310201810-202112

NO.2:REFER ILLUST.

main90910-02202iA25AFXS..AXVH71..IDN¥310201810-202110

NO.2:REFER ILLUST.

main90910-02202iA25#..AXVA70,AXVH71¥310202111

NO.2:REFER ILLUST.

main90910-02205iM20AFKS..MXVA71¥240202111

NO.2:REFER ILLUST.

main90910-C2006i6AR#..ASV71201810-202110

(L)

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-11034i2ARFE..ASV70¥110201810-202110

(J)

main90201-12079iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥100201810-202112

main90201-12079iA25AFXS..AXVH71..IDN¥100201810-202110

main90201-12079iM20AFKS..MXVA71¥100202111

main90201-C0005i6AR#..ASV71201810-202110

(L)

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0T030i6AR#..ASV71201810-202110

main15330-37010i2ARFE..ASV70¥7,300201810-202110

11101ZO RING, CAM POSITION SENSOR

main90301-11038iM20AFKS..MXVA71¥0202111

main90301-11038iA25AFXS..AXVH71..IDN¥0201810-202110

main90301-11038iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥0201810-202112

main90301-14016i2ARFE,6AR#..ASV7#¥0201810-202110

11102ASENSOR, CAMSHAFT POSITION

main90919-05060i2ARFE..ASV70¥4,130201810-202110

(J)

main90919-05096iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥4,130201810-202112

main90919-05096iA25AFXS..AXVH71..IDN¥4,130201810-202110

main90919-05096iA25#..AXVA70,AXVH71¥4,130202111

main90919-C5001i6AR#..ASV71201810-202110

(L)

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-0V070i6AR#..ASV71201810-202110

main11103-24011iM20AFKS..MXVA71¥23,900202111

main11103-25010iA25AFKB,A25AFKS..AXVA70201810-201902

sub11103-25011

main11103-25011iA25AFKB,A25AFKS..AXVA70201903-202007

sub11103-25080

sub25625-25030¥2,970

main11103-25020iA25AFXS..AXVH71¥31,500201810-201902

sub11103-25021¥31,500

main11103-25021iA25AFXS..AXVH71¥31,500201903-202007

sub11103-25090¥23,900

sub25625-25030¥2,970

main11103-25080iA25AFKB,A25AFKS..AXVA70202111

main11103-25080iA25AFKB,A25AFKS..AXVA70202007-202110

main11103-25090iA25AFXS..AXVH71¥23,900202111

main11103-25090iA25AFXS..AXVH71..IDN¥23,900202007-202110

main11103-25090iA25AFXS..AXVH71..RHD..(IND,TH)¥23,900202007-202112

main11103-36011i2ARFE..ASV70¥25,000201810-202110

11114APIN, STRAIGHT

main90250-06003i2ARFE..ASV70¥90201810-202110

L=14,OD=6

main90250-C0010i6AR#..ASV71201810-202110

L=14,OD=6

11115GASKET, CYLINDER HEAD

main11115-0V020i6AR#..ASV71¥4,820201810-202110

main11115-24040iM20AFKS..MXVA71¥4,380202111

main11115-25050iA25#..AXVA70,AXVH71¥5,800202111

main11115-25050iA25AFXS..AXVH71..IDN¥5,800201810-202110

main11115-25050iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥5,800201810-202112

main11115-36031i2ARFE..ASV70¥5,800201810-202110

11115APIN, RING

main90253-12002iA25#..AXVA70,AXVH71¥50202111

main90253-12002i6AR#..ASV71¥50201810-202110

(J)

main90253-12002iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥50201810-202112

main90253-C0002i6AR#..ASV71201810-202110

(L)

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015iA25AFXS..AXVH71..IDN¥120201810-202110

main90341-14015iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥120201810-202112

main90341-14015iM20AFKS..MXVA71¥120202111

(J)

main90341-20002i2ARFE,6AR#..ASV7#¥180201810-202110

main90341-C0012iA25AFKS,A25AFXS..AXVA70,AXVH71202405

(L)

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-24011i2ARFE,6AR#..ASV7#¥240201810-202110

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-20004i6AR#..ASV71¥200201810-202110

(J)

main90430-C0001i6AR#..ASV71201810-202110

(L)

11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)

main90430-24246i2ARFE,6AR#..ASV7#¥160201810-202110

11122BUSH, INTAKE VALVE GUIDE

main11122-31050i2ARFE..ASV70¥610201810-202110

STD

sub11122-31090¥550

main11122-31070iA25AFKB..AXVA70¥610201810-201902

STD

main11122-31070iA25AFKS,A25AFXS..AXVA70,AXVH71¥610201810-201907

STD

main11122-31090iA25#..AXVA70,AXVH71¥550202111

STD

main11122-31090i6AR#..ASV71¥550201810-202112

STD

main11122-31090iA25AFKB..AXVA70..25G¥550201902-202112

STD

main11122-31090iA25AFKS,A25AFXS..AXVA70,AXVH71..RHD..(25,HBD,HBDG,HBDV)¥550201907-202112

STD

main11123-31050i2ARFE..ASV70¥610201810-202110

O/S 0.05

main11123-31070iA25AFKB..AXVA70¥620201810-201902

O/S 0.05

sub11123-31090¥550

main11123-31070iA25AFKS,A25AFXS..AXVA70,AXVH71¥620201810-201907

O/S 0.05

sub11123-31090¥550

main11123-31090iA25#..AXVA70,AXVH71¥550202111

O/S 0.05

main11123-31090i6AR#..ASV71¥550201810-202112

O/S 0.05

main11123-31090iA25AFKB..AXVA70..25G¥550201902-202112

O/S 0.05

main11123-31090iA25AFKS,A25AFXS..AXVA70,AXVH71..RHD..(25,HBD,HBDG,HBDV)¥550201907-202112

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041iA25#..AXVA70,AXVH71¥610202111

STD

sub11122-47010¥550

main11122-31041iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)¥610201810-202112

STD

sub11122-47010¥550

main11123-31041iA25#..AXVA70,AXVH71¥620202111-202401

O/S 0.05

sub11123-47010¥550

main11123-31041iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)¥620201810-202112

O/S 0.05

sub11123-47010¥550

main11123-47010iA25#..AXVA70,AXVH71¥550202401

O/S 0.05

main11126-31030i2ARFE..ASV70¥610201810-202110

STD

sub11126-31040¥550

main11126-31040i6AR#..ASV71¥550201810-202110

STD

main11127-31030i2ARFE..ASV70¥610201810-202110

O/S 0.05

sub11127-31040¥550

main11127-31040i6AR#..ASV71¥550201810-202110

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-0V040i6AR#..ASV71201810-202110

STD

main11131-36030i2ARFE..ASV70¥770201810-202110

STD

main11132-0V040i6AR#..ASV71201810-202110

O/S 0.03

main11132-36030i2ARFE..ASV70201810-202110

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-0V040i6ARFSE..ASV71201810-202110

STD

main11135-24020iM20AFKS..MXVA71¥490202111

STD

main11135-25020iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥760201810-202112

STD

main11135-25020iA25#..AXVA70,AXVH71¥760202111

STD

main11135-25020iA25AFXS..AXVH71..IDN¥760201810-202110

STD

main11135-36010i2ARFE..ASV70¥770201810-202110

STD

main11135-36030i6ARFBS..ASV71201810-202110

STD

main11136-0V040i6ARFSE..ASV71201810-202110

O/S 0.03

main11136-25020iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥760201810-202112

O/S 0.03

main11136-25020iA25AFXS..AXVH71..IDN¥760201810-202110

O/S 0.03

main11136-25020iA25#..AXVA70,AXVH71¥760202111

O/S 0.03

main11136-36010i2ARFE..ASV70201810-202110

O/S 0.03

main11136-36030i6ARFBS..ASV71201810-202110

O/S 0.03

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-13005i2ARFE..ASV70¥50201810-202110

L=12.5,OD=8,(J)

main90253-13005i2ARFE..ASV70¥50201810-202110

L=12.5,OD=8

main90253-C0004i6AR#..ASV71201810-202110

L=12.5,OD=8,(L)

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009i2ARFE..ASV70¥90201810-202110

(J)

main90119-07009iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥90201810-202112

main90119-07009iA25#..AXVA70,AXVH71¥90202111

main90119-C0469i6AR#..ASV71201810-202110

(L)

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-0V020i6AR#..ASV71201810-202110

NO.1:REFER ILLUST.

main11159-31040iM20AFKS..MXVA71¥340202111

main11159-31040iA25AFXS..AXVH71..IDN¥340201810-202110

main11159-31040iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥340201810-202112

main11159-36011i2ARFE..ASV70¥340201810-202110

NO.1:REFER ILLUST.

main90430-10024i2ARFE..ASV70¥80201810-202110

NO.2:REFER ILLUST.

main90430-C0006i6AR#..ASV71201810-202110

NO.2:REFER ILLUST.

11193GASKET, SPARK PLUG TUBE

main11193-0V020i6AR#..ASV71201810-202110

main11193-36010i2ARFE..ASV70¥230201810-202110

main11193-37030iM20AFKS..MXVA71¥230202111

main11193-37030iA25AFXS..AXVH71..IDN¥230201810-202110

main11193-37030iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥230201810-202112

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0V060i6AR#..ASV71201810-202110

main11201-24031iM20AFKS..MXVA71¥13,900202111-202112

sub11201-24032¥12,600

main11201-24032iM20AFKS..MXVA71¥12,600202112

main11201-25032iA25#..AXVA70,AXVH71¥11,800201810-202005

sub11201-25033¥8,800

main11201-25033iA25#..AXVA70,AXVH71¥8,800202111-202406

main11201-25033iA25AFXS..AXVH71..IDN¥8,800202006-202110

main11201-25033iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥8,800202006-202112

main11201-25090iA25#..AXVA70,AXVH71¥8,800202406

main11201-36010i2ARFE..ASV70¥15,700201810-202110

11213GASKET, CYLINDER HEAD COVER

main11213-0V020i6AR#..ASV71201810-202110

main11213-24020iM20AFKS..MXVA71¥700202111

main11213-25020iA25#..AXVA70,AXVH71¥700202111

main11213-25020iA25AFXS..AXVH71..IDN¥700201810-202110

main11213-25020iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥700201810-202112

main11213-36020i2ARFE..ASV70¥900201810-202110

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0V010i6AR#..ASV71201810-202110

main12180-38010iA25AFXS,2ARFE..ASV70,AXVH71..IDN,MA,PH,VN¥640201810-202110

main12180-38010iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥640201810-202112

main12180-38010iA25#..AXVA70,AXVH71¥640202111

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iA25#..AXVA70,AXVH71¥120202111

main90430-35001iA25AFXS,2ARFE,6AR#..ASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥120201810-202110

main90430-35001iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥120201810-202112

12281AHANGER, ENGINE, NO.1

main12281-0V010i6AR#..ASV71201810-202110

main12281-36020i2ARFE..ASV70¥3,540201810-202110

12282DHANGER, ENGINE, NO.2

main12282-0V010i6AR#..ASV71201810-202110

main12282-25010iA25#..AXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥4,190201810-202112

main12282-25010iA25AFXS..AXVH71..IDN¥4,190201810-202110

main12282-25010iA25#..AXVA70,AXVH71¥4,190202111

main12282-36021i2ARFE..ASV70¥1,170201810-202110

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-0V240i6AR#..ASV71201810-202110

main12601-0V250i2ARFE..ASV70201810-202110

main12601-24011iM20AFKS..MXVA71¥12,400202111

main12601-25060iA25AFXS..AXVH71..LHD;A25AFKB,A25AFKS..AXVA70202111

main12601-25060iA25AFKB,A25AFKS..AXVA70201810-202110

main12601-25070iA25AFXS..AXVH71..IDN201810-202110

main12601-25070iA25AFXS..AXVH71..RHD..(IND,TH)202111

main12601-25070iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14032i6AR#..ASV71201810-202110

main90099-14137i2ARFE..ASV70¥0201810-202110

15678AFILTER, OIL CONTROL VALVE

main15678-0T020i6AR#..ASV71201810-202110

(L)

main15678-37010i6AR#..ASV71¥540201810-202110

(J)

1603

8404

8716

9155180616

main91551-80616¥60

9155281025

main91552-81025¥100

9155281040

main91552-81040¥120

9167180616

main91671-80616¥60

39 parts on this diagram · 8 diagrams in section
