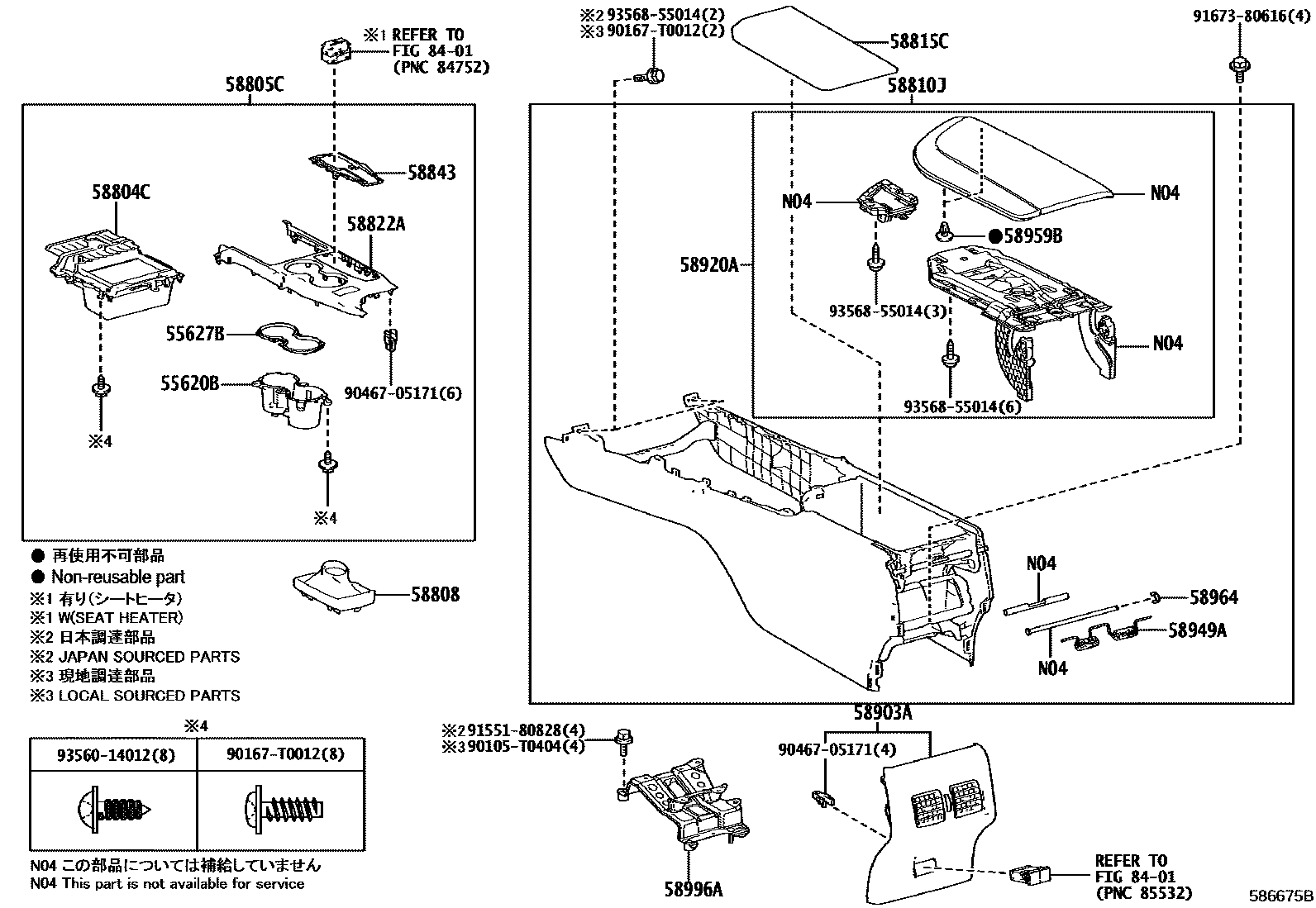

Toyota CAMRY/HYBRID (ASIA) — CONSOLE BOX & BRACKET

0001 1 0004 1 0005 1 0006 1

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-06540iAXVA70,AXVH71,MXVA71..LHD202111

main55620-06540iASV7#..LHD201810-202110

main55620-06560iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main55620-06560iAXVA70,AXVH71..RHD202111

main55620-06560iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

55627BRAIL, CONSOLE BOX CUP HOLDER

main55627-06060iASV7#..LHD201810-202110

main55627-06060iAXVA70,AXVH71,MXVA71..LHD202111

main55627-06080iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

main55627-06080iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main55627-06080iAXVA70,AXVH71..RHD202111

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-06490iMXVA71..20G202111

main58804-06490iASV7#..LHD201810-202110

main58804-06620iASV71..20201810-202110

SINGAPORE SPEC

main58804-06620iAXVA70..25202111

main58804-06630iASV70..25V..IDN201810-202110

BRUNEI SPEC

main58804-06630iAXVA70,AXVH71..RHD..(25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main58804-06630iAXVA70,AXVH71..RHD..(25E,25G,25V,HBD,HBDG,HBDV)202111

main58804-06740iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06790-E1iASV70..LHD..(25Q,25V)201810-202110

TIGER EYE,TRIM2#,4#

main58805-06800iASV7#..LHD..(20G,25G)201810-202110

main58805-06840-B0iAXVH71..HBDG201810-202110

HYBRID ONYX,TRIM2#,4#

main58805-06B40iASV70..25G..IDN201810-202110

SINGAPORE SPEC

main58805-06B50iASV71..RHD201810-202110

main58805-06B90-B0iAXVH71..IDN201810-202110

HYBRID ONYX,TRIM2#,4#

main58805-06B90-B0iAXVH71..RHD..(HBD,HBDV)..(IND,TH)201810-202112

HYBRID ONYX,TRIM2#,4#

main58805-06D40-E1iASV70,AXVA70..(25,25V)..(IDN,TH)201810-202110

TIGER EYE,TRIM2#,4#

main58805-06D50-E1iASV70..25V..IDN201810-202110

BRUNEI SPEC,TIGER EYE,TRIM2#,4#

main58805-06D50-E1iASV70,AXVA70..(25G,25V)..(MA,TH)201810-202110

TIGER EYE,TRIM2#,4#

main58805-06F40iMXVA71..20G202111

main58805-06F50iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main58805-06F80iAXVA70,AXVH71..25G,25V,HBDG202111

main58805-06F90iAXVH71..RHD..(HBD,HBDV)202111

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-06070-C0iAXVA70,AXVH71,MXVA71..LHD202111

BLACK,TRIM2#,4#

main58808-06070-C0iASV7#..LHD201810-202110

BLACK,TRIM2#,4#

main58808-06100-C0iAXVA70,AXVH71..RHD202111

BLACK,TRIM2#,4#

main58808-06100-C0iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

BLACK,TRIM2#,4#

main58808-06100-C0iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#,4#

58810JBOX ASSY, CONSOLE

main58810-06720-A2iASV7#..LHD201810-202110

FROMAGE,TRIM4#

main58810-06720-A2iAXVA70,AXVH71,MXVA71..LHD202111

FROMAGE,TRIM4#

main58810-06720-C5iASV7#..LHD201810-202110

BLACK,TRIM2#

main58810-06720-C5iAXVA70,AXVH71,MXVA71..LHD202111

BLACK,TRIM2#

main58810-06740-A2iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

FROMAGE,TRIM4#

main58810-06740-A2iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

FROMAGE,TRIM4#

main58810-06740-A2iAXVA70,AXVH71..RHD202111

FROMAGE,TRIM4#

main58810-06740-C5iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

BLACK,TRIM2#

main58810-06740-C5iAXVA70,AXVH71..RHD202111

BLACK,TRIM2#

main58810-06740-C5iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#

58815CCARPET, CONSOLE BOX

main58815-06210iASV7#..LHD201810-202110

main58815-06210iAXVA70,AXVH71,MXVA71..LHD202111

main58815-06240iAXVA70,AXVH71..RHD202111

main58815-06240iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

main58815-06240iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

58822APANEL, CONSOLE, UPPER REAR

main58822-06780iASV7#..LHD..(20G,25G)201810-202110

main58822-06810-B0iAXVH71..HBDG201810-202110

HYBRID ONYX,TRIM2#,4#

main58822-06820-B0iAXVH71..RHD..(HBD,HBDV)..(IND,TH)201810-202112

HYBRID ONYX,TRIM2#,4#

main58822-06820-B0iAXVH71..IDN201810-202110

HYBRID ONYX,TRIM2#,4#

main58822-06890iASV7#..RHD..(20,20G,25G)201810-202110

main58822-06B00-E1iASV70..LHD..(25Q,25V)201810-202110

TIGER EYE,TRIM2#,4#

main58822-06B20-E1iAXVA70;ASV70..RHD..25V201810-202110

TIGER EYE,TRIM2#,4#

main58822-06C60iMXVA71..20G202111

main58822-06C70iAXVA70,AXVH71,MXVA71..LHD..(20Q,25Q,HBDV)202111

main58822-06C80iAXVA70..25,25E202111

main58822-06C90iAXVA70,AXVH71..25G,25V,HBDG202111

(L)

main58822-06D00iAXVH71..RHD..(HBD,HBDV)202111

(L)

main58822-33510iAXVA70,AXVH71..25G,25V,HBDG¥14,000202111

(J)

main58822-33520iAXVH71..RHD..(HBD,HBDV)¥14,000202111

(J)

58843BEZEL, SHIFTING HOLE

main58843-06230iASV7#..LHD201810-202110

main58843-06230iAXVA70,AXVH71,MXVA71..LHD202111

main58843-06270iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main58843-06270iAXVA70,AXVH71..RHD202111

main58843-06270iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06440-A1iAXVA70,MXVA71..20G,25,25E202111

FROMAGE,TRIM4#

main58903-06440-A1iASV7#..20,20G,25G201810-202110

FROMAGE,TRIM4#

main58903-06440-C1iASV7#..20,20G,25G201810-202110

BLACK,TRIM2#

main58903-06440-C1iAXVA70,MXVA71..20G,25,25E202111

BLACK,TRIM2#

main58903-06450-A3iAXVH71..IDN201810-202110

FROMAGE,TRIM4#

main58903-06450-A3iAXVH71..RHD..(IND,TH)201810-202112

FROMAGE,TRIM4#

main58903-06450-C3iAXVH71..RHD..(IND,TH)201810-202112

BLACK,TRIM2#

main58903-06450-C3iAXVH71..IDN201810-202110

BLACK,TRIM2#

main58903-06540-A2iAXVA70;ASV70..25Q,25V201810-202110

FROMAGE,TRIM4#

main58903-06540-C2iAXVA70;ASV70..25Q,25V201810-202110

BLACK,TRIM2#

main58903-06650-A0iAXVA70,AXVH71,MXVA71..20Q,25G,25Q,25V,HBD,HBDG,HBDV202111

FROMAGE,TRIM4#

main58903-06650-C0iAXVA70,AXVH71,MXVA71..20Q,25G,25Q,25V,HBD,HBDG,HBDV202111

BLACK,TRIM2#

58920AARMREST ASSY, REAR CONSOLE

main58920-06140-A2iAXVA70,AXVH71,MXVA71..LHD202111

FROMAGE,TRIM4#

main58920-06140-A2iASV7#..LHD201810-202110

FROMAGE,TRIM4#

main58920-06140-C4iASV7#..LHD201810-202110

BLACK,TRIM2#

main58920-06140-C4iAXVA70,AXVH71,MXVA71..LHD202111

BLACK,TRIM2#

main58920-06160-A2iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

FROMAGE,TRIM4#

main58920-06160-A2iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

FROMAGE,TRIM4#

main58920-06160-A2iAXVA70,AXVH71..RHD202111

FROMAGE,TRIM4#

main58920-06160-C4iAXVA70,AXVH71..RHD202111

BLACK,TRIM2#

main58920-06160-C4iASV7#,AXVH71..(20,20G,25G,25V,HBD)..(IDN,MA,TH)201810-202110

BLACK,TRIM2#

main58920-06160-C4iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

BLACK,TRIM2#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-06040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

main58949-06040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

main58949-06040iAXVA70,AXVH71,MXVA71202111

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥100201810-202110

main58959-35010iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥100201810-202112

main58959-35010iAXVA70,AXVH71,MXVA71¥100202111

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-33040iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)¥80201810-202110

main58964-33040iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)¥80201810-202112

main58964-33040iAXVA70,AXVH71,MXVA71¥80202111

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-06120iASV7#,AXVH71..(20,20G,25G,25Q,25V,HBD)..(IDN,MA,PH,TH,VN)201810-202110

sub58996-06121

main58996-06120iAXVA70,AXVH71..RHD..(25,25G,HBD,HBDG,HBDV)..(IND,TH)201810-202112

sub58996-06121

main58996-06120iAXVA70,AXVH71,MXVA71202111-202312

sub58996-06121

main58996-06121iAXVA70,AXVH71,MXVA71202401-202406

main58996-06121iAXVA70,AXVH71,MXVA71202406

(L)

main58996-33101iAXVA70,AXVH71,MXVA71¥2,440202406

(J)

8401

90105T0404

main90105-T0404

90167T0012

main90167-T0012

9046705171

main90467-05171¥60

9155180828

main91551-80828¥80

9167380616

main91673-80616¥60

9356014012

main93560-14012¥70

9356855014

main93568-55014¥70

23 parts on this diagram · 4 diagrams in section
