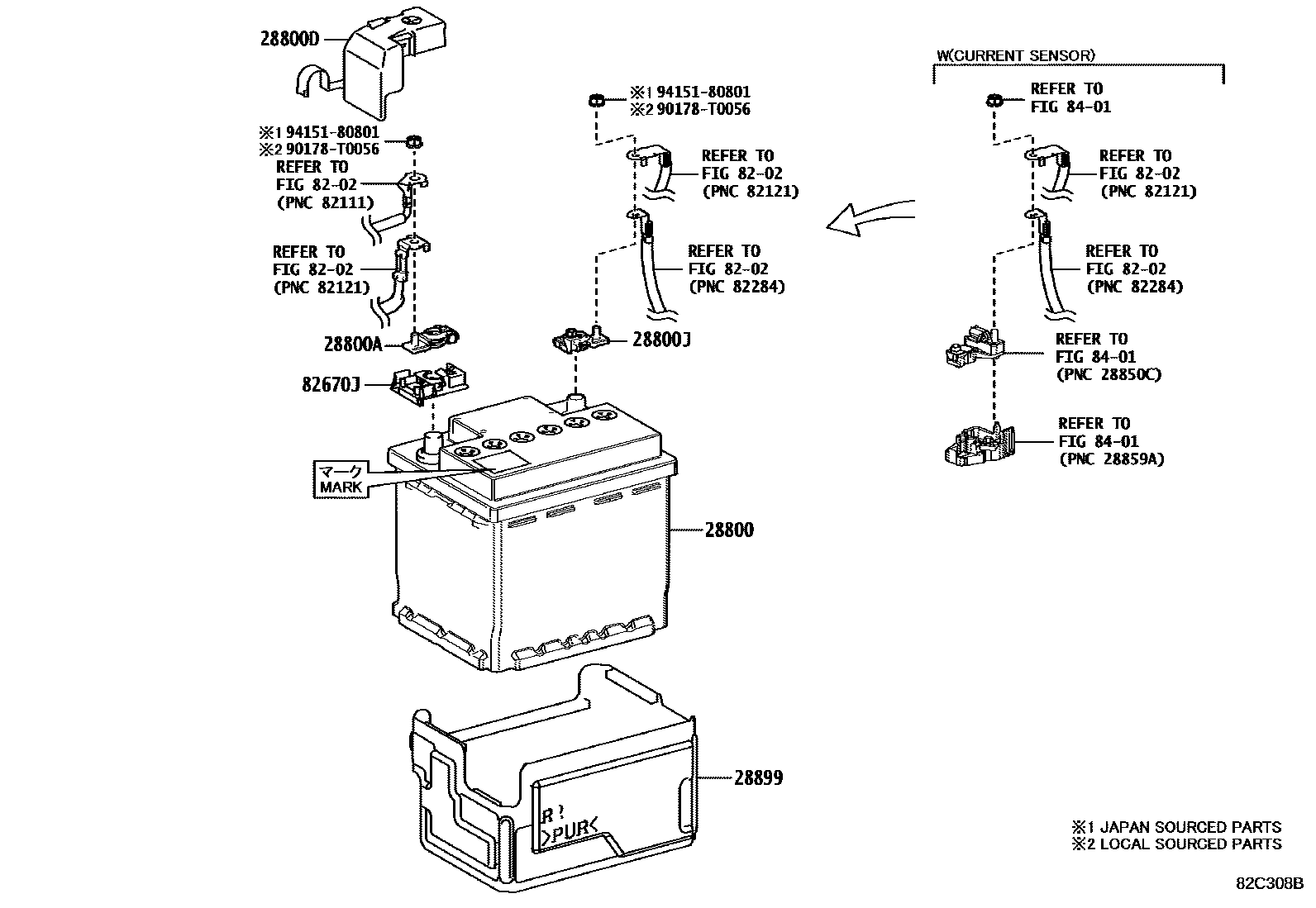

Toyota CAMRY/HYBRID (ASIA) — BATTERY & BATTERY CABLE

0001 1BATTERY 0002 1BATTERY 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-0C272iA25AFKB,A25AFKS,2ARFE,6ARFSE..ASV7#,AXVA70201810-202006

LN2

sub28800-0C273

main28800-0C273i2ARFE,6ARFSE..ASV7#202007-202101

LN2,MARK=DK

sub28800-0C274

main28800-0C273iA25AFKB,A25AFKS..AXVA70202007-202106

LN2,MARK=DK

sub28800-0C274

main28800-0L730iA25AFKB,A25AFKS..AXVA70202106-202110

LN2,MARK=DL

sub28800-0L731

main28800-0L730i2ARFE,6ARFSE..ASV7#202101-202110

LN2,MARK=DL

sub28800-0L731

main28800-0L730iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71202111-202206

LN2,MARK=DL

sub28800-0L731

main28800-0L731iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71202207-202208

LN2

sub28800-0L732

main28800-0L732iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71202209

LN2

main28800-25030iA25AFXS..AXVH71..IND¥0201812-202112

LN2

sub28800-25031

main28800-F0030iA25AFXS..AXVH71202111-202211

LN2

sub28800-F0031

main28800-F0030iA25AFXS..AXVH71..IDN,TH201810-202110

LN2

sub28800-F0031

main28800-F0031iA25AFXS..AXVH71202212

LN2

main28800-F0100i6ARFSE..ASV71..TH201810-202110

LN3,SINGAPORE SPEC,MARK=EM

sub28800-F0101

main28800-F0100i6ARFSE..ASV71..TH201810-202110

LN3,MARK=EM

sub28800-F0101

28800ATERMINAL, BATTERY POSITIVE

main90982-05053iA25AFXS..AXVH71..IDN¥860201810-202110

main90982-05053iA25AFXS..AXVH71..RHD..(IND,TH)¥860201810-202112

main90982-05053iA25AFXS..AXVH71¥860202111

main90982-05072iA25AFKB,A25AFKS,2ARFE,6AR#..ASV7#,AXVA70¥850201810-202110

main90982-05072iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71¥850202111

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-06081iA25AFXS..AXVH71..IDN201810-202110

main82621-06081iA25AFXS..AXVH71..RHD..(IND,TH)201810-202112

main82621-06081iA25AFXS..AXVH71202111

main82821-33440iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71¥650202111

main82821-33440iA25AFKB,A25AFKS,2ARFE,6AR#..ASV7#,AXVA70¥650201810-202110

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71¥850202111

main90982-06061iA25AFKB,A25AFKS,2ARFE,6ARFSE..ASV7#,AXVA70¥850201810-202110

28899INSULATOR, BATTERY

main28899-0V030i2ARFE,6ARFSE..ASV7#201810-202101

sub28899-0V050

main28899-0V030iA25AFKB,A25AFKS..AXVA70201810-202106

sub28899-0V050

main28899-0V040i6ARFBS..ASV71201810-202012

SINGAPORE SPEC

sub28899-0V060

main28899-0V050i2ARFE,6ARFSE..ASV7#202101-202110

main28899-0V050iA25AFKB,A25AFKS..AXVA70202106-202110

main28899-0V050iA25AFKB,A25AFKS,M20AFKS..AXVA70,MXVA71202111

main28899-0V060i6ARFSE..ASV71..TH202101-202110

SINGAPORE SPEC

8202

82670JBLOCK ASSY, JUNCTION

main82670-33140iAXVH71..IDN¥1,670201810-202110

main82670-33140iAXVH71..RHD..(IND,TH)¥1,670201810-202112

main82670-33140iAXVH71¥1,670202111

main82671-33100iASV7#,AXVA70¥360201810-202110

main82671-33100iAXVA70,MXVA71¥360202111

8401

90178T0056

main90178-T0056

9415180801

main94151-80801¥80

10 parts on this diagram · 6 diagrams in section
