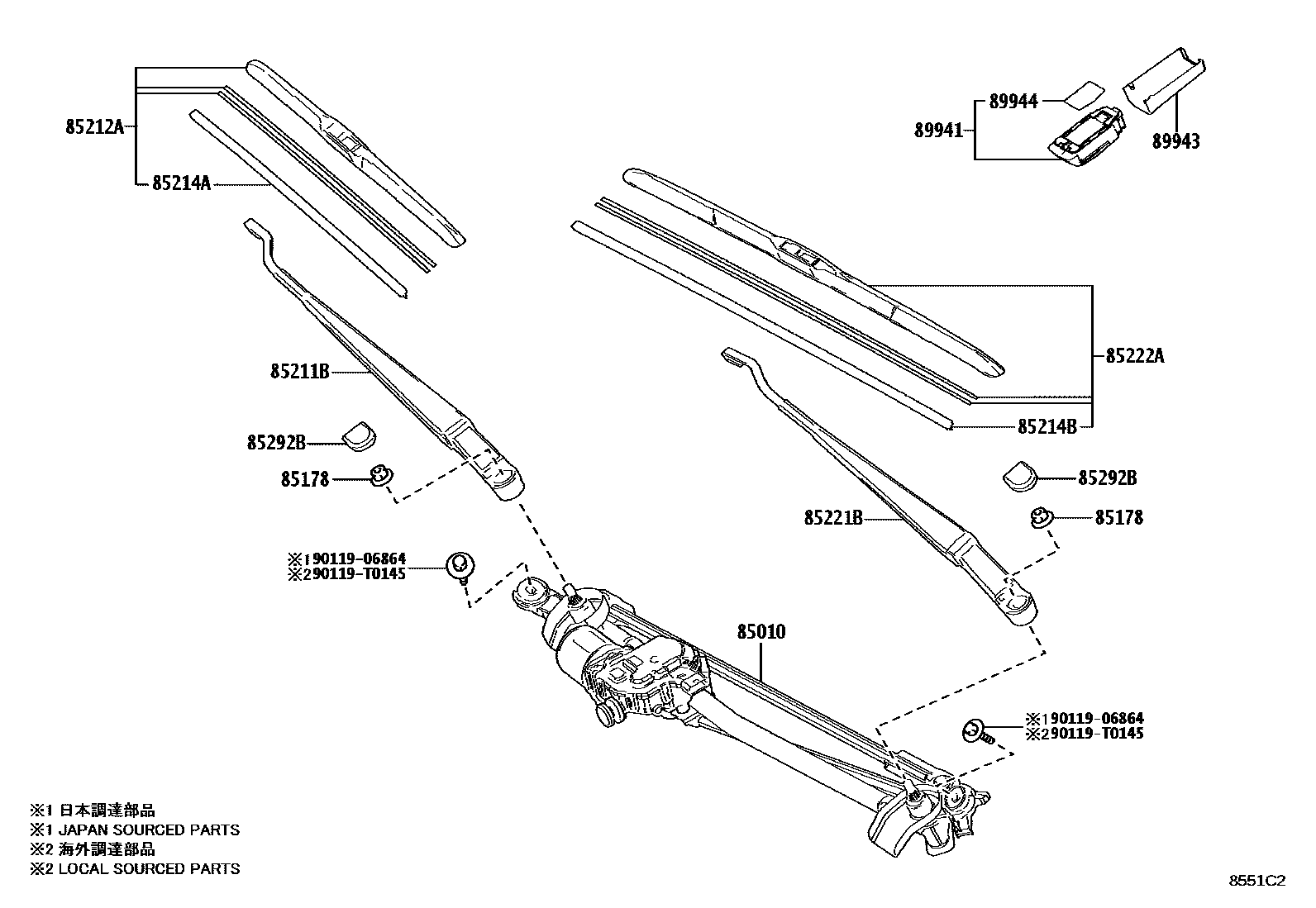

Toyota CAMRY (ASIA) — WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

main85010-33420iAXVH80,MXVA80..LHD202410

main85010-33430iAXVA80,AXVH80..RHD¥20,800202410

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAXVA80,AXVH80,MXVA80¥80202410

(J)

main90182-T0029iAXVA80,AXVH80,MXVA80202410

(L)

85211BARM, FRONT WIPER, RH

main85211-06280iAXVA80,AXVH80..RHD202410

main85211-06290iAXVH80,MXVA80..LHD202410

85212ABLADE, FR WIPER, RH

main85212-33340iAXVH80,MXVA80..LHD¥2,640202410

main85212-52210iAXVA80,AXVH80..RHD¥4,290202410

85214ARUBBER, WIPER, RH

main85214-52110iAXVA80,AXVH80..RHD¥900202410

main85214-60120iAXVH80,MXVA80..LHD¥800202410

85214BRUBBER, WIPER, LH

main85214-52110iAXVH80,MXVA80..LHD¥900202410

main85214-60120iAXVA80,AXVH80..RHD¥800202410

85221BARM, FRONT WIPER, LH

main85221-06280iAXVA80,AXVH80..RHD202410

main85221-06290iAXVH80,MXVA80..LHD202410

85222ABLADE, FR WIPER, LH

main85222-33340iAXVH80,MXVA80..LHD¥4,290202410

main85222-33350iAXVA80,AXVH80..RHD¥2,640202410

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iAXVA80,AXVH80,MXVA80¥200202410

89941SENSOR, RAIN

main89941-78020iAXVA80,AXVH80,MXVA80¥12,500202410

89943COVER, RAIN SENSOR

main89943-12040iAXVA80,AXVH80,MXVA80¥440202410

89944TAPE, RAIN SENSOR

main89944-42020iAXVA80,AXVH80,MXVA80¥170202410

9011906864

main90119-06864¥80

90119T0145

main90119-T0145

14 parts on this diagram · 2 diagrams in section
