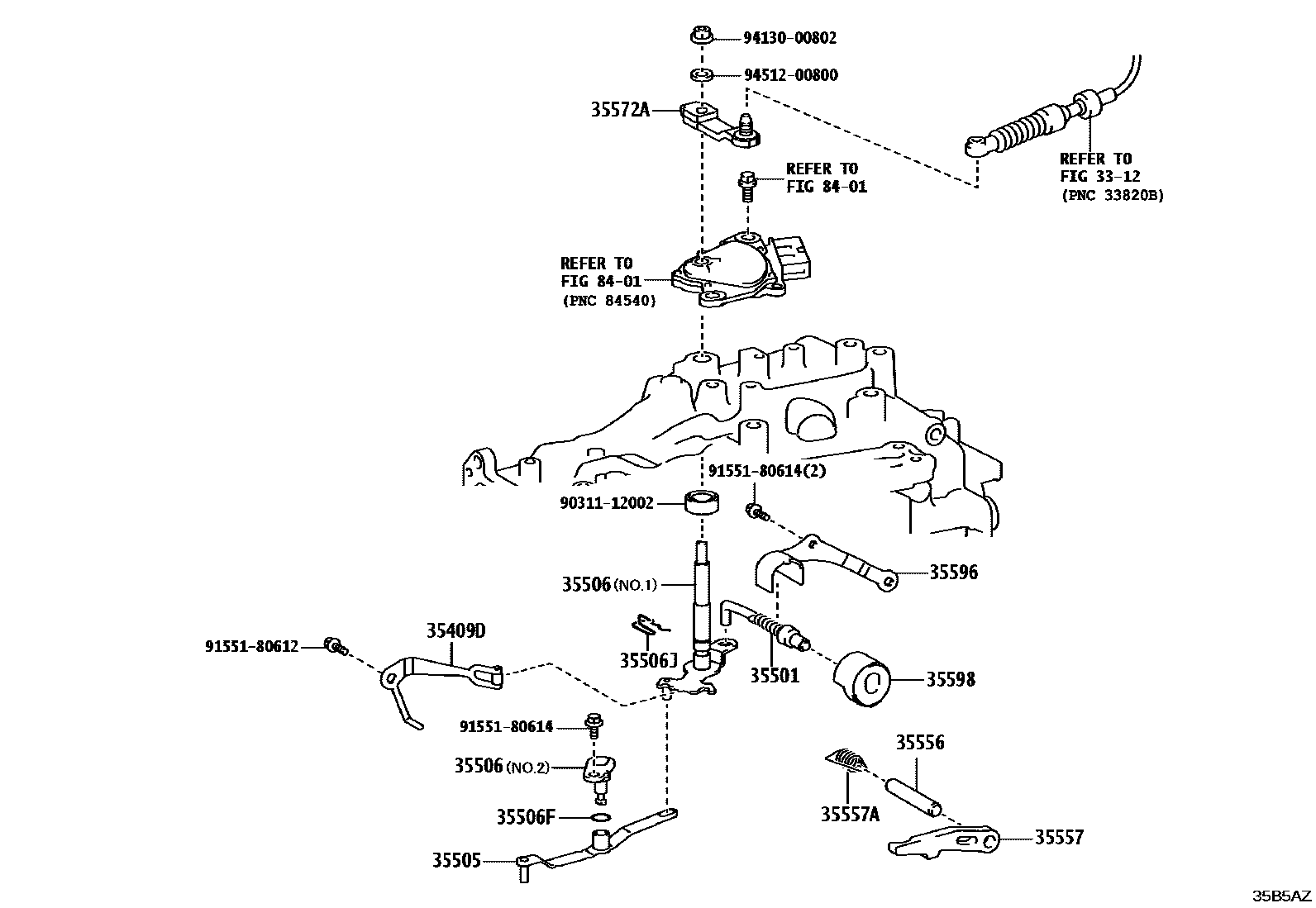

Toyota CAMRY (ASIA) — THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iAXVA80¥400202410

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAXVA80¥1,240202410

35505LEVER SUB-ASSY, MANUAL VALVE

main35502-33010iAXVA80¥230202410

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35503-48010iAXVA80¥300202410

NO.2:REFER ILLUST.

main35506-33041iAXVA80202410

NO.1:REFER ILLUST.

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iAXVA80¥140202410

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iAXVA80¥60202410

35556SHAFT, PARKING LOCK PAWL

main35556-48040iAXVA80202410

35557PAWL, PARKING LOCK

main35557-33040iAXVA80¥2,810202410

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAXVA80¥180202410

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48051iAXVA80¥740202410

35596PLATE, PAWL STOPPER

main35596-33020iAXVA80202410

35598SLEEVE, PARKING LOCK

main35598-48040iAXVA80¥770202410

8401

9031112002

main90311-12002¥270

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

19 parts on this diagram · 1 diagram in section
