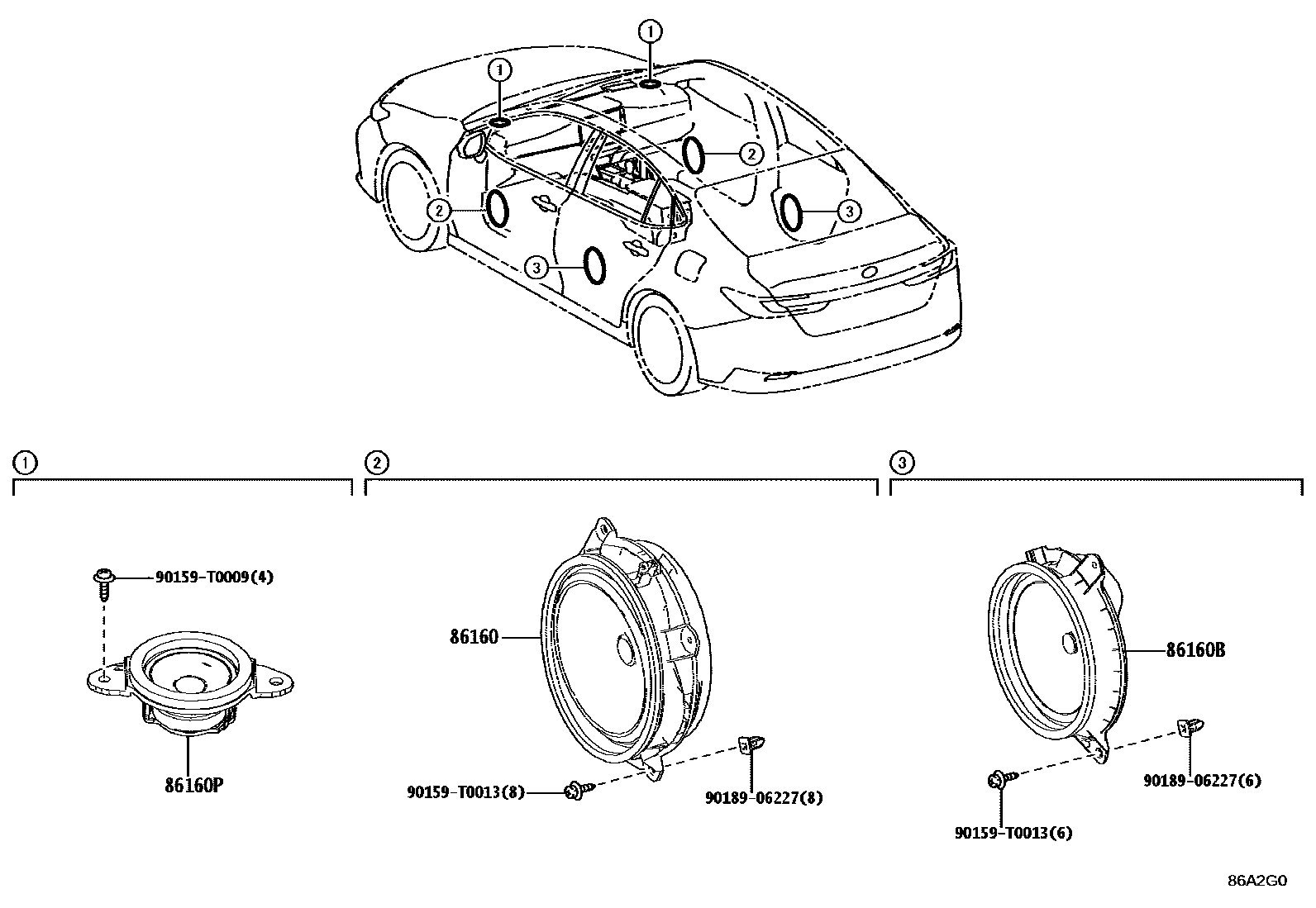

Toyota CAMRY (ASIA) — SPEAKER

0001 16-SPEAKER 0002 19-SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-06B00iAXVA80,AXVH80..G,Q202410

AUDIO-12.3INCH 6SPEAKER

main86160-33A10iMXVA80;AXVA80,AXVH80..V¥23,500202410

86160BSPEAKER ASSY, REAR

main86160-02D31iAXVA80,AXVH80..G,Q202410

AUDIO-12.3INCH 6SPEAKER

main86160-0K390iMXVA80;AXVA80,AXVH80..V202410

86160PSPEAKER ASSY, FRONT NO.2

main86160-06720iAXVA80,AXVH80..G,Q202410

AUDIO-12.3INCH 6SPEAKER

main86160-0K370iMXVA80;AXVA80,AXVH80..V202410

90159T0009

main90159-T0009

90159T0013

main90159-T0013

9018906227

main90189-06227¥70

6 parts on this diagram · 2 diagrams in section
